Elation PIXEL BAR 60IP Tri-Color RGB SMD IP65 Rated LED Pixel Bar

Description

Elation PIXEL BAR 60IP Tri-Color RGB SMD IP65 Rated LED Pixel Bar

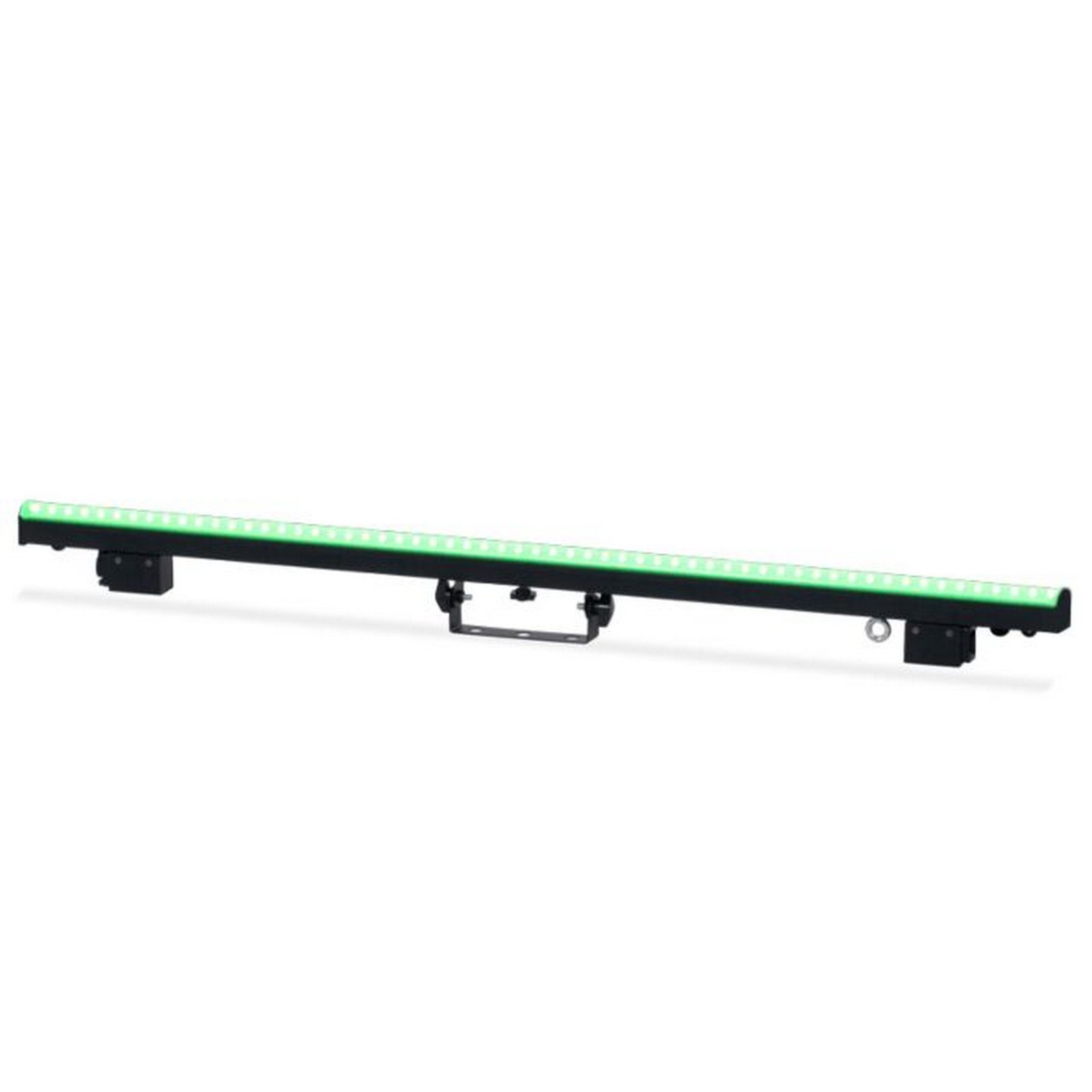

The PIXEL BAR 60IP is an outdoor IP65 rated LED pixel bar featuring (60) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 1 meter (3.3 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.

Key Features

• Outdoor IP65 Rated
• (60) RGB SMD LEDs | 1 meter / 3.3 feet
• 16mm Pixel Pitch | 44,000Hz PWM
• Flicker Free Operation for Broadcast TV and FILM
• Magnetic End Caps – Seamless End-to-End Spacing
• Integrated Adjustable Mounting Bracket
• Square and Rounded Frosted Lens Included
• 2ft (0.6m) Power/Data Jumper Cable included

Technical Specifications

SOURCE
0.2 SMD RGB 3-in-1 LEDs
Color Resolution
8 bits per color (24 bits per pixel)
Viewing Angle
120 x 120 degrees
Pixels Per Meter
60 pixels
Pixel Pitch (pixel center-to-center) 16mm
PWM (Pulse Width Modulation)
44,000Hz
CONNECTIONS
4pin Power/Data In/Out
SIZE / WEIGHT
Length
38.0” (967mm)
Width
1.3” (34mm)
Height
3.3” (83mm)
Weight
2.6 lbs. (1.2kg)
