Episode ECS-500 All-Weather Outdoor Speaker, 6.5-Inch, Singlular, Black
$259.99
In stock
Spend & save Spend $149+, save up to $500 Applied automatically
Spend $149Save $50
Spend $399Save $100
Spend $799Save $200
Spend $1,299Save $300
Spend $1,999Save $500
Discount applied automatically in cart.
Description
Episode ECS-500 All-Weather Outdoor Speaker, 6.5-Inch, Singular, Black
The Episode ECS-500-AW70V-6-BLK 6.5-inch 70V outdoor speaker delivers commercial surface-mount audio for outdoor distributed sound systems. It features a weather-resistant cabinet, adjustable 70V and 100V tap settings, a 6.5-inch polypropylene woofer, 1-inch aluminum dome tweeter, and a compact black enclosure for professional installations.
Built for patios, restaurants, retail spaces, offices, and exterior commercial audio systems, this all-weather 70V surface-mount speaker helps installers cover large areas with consistent background music or paging. Choose it for a black outdoor commercial speaker installation where durability, controlled output, and easy bracket mounting matter.
The Commercial Series design uses an aluminum grille and bracket, stainless steel bolts, and a UV-treated cabinet for rugged outdoor placement. Gold-plated heavy-duty 5-way binding posts, a waterproof tap setting dial, and 110-degree dispersion support clean wiring, flexible level tuning, and broad listening coverage.
Key Features
- 70V Outdoor Speaker: Supports commercial distributed audio systems for paging, background music, and installed sound.
- 6.5-Inch Polypropylene Woofer: Uses a polypropylene cone with Nomex spider and high-temperature voice coil for outdoor audio performance.
- 1-Inch Aluminum Dome Tweeter: Delivers crisp high-frequency detail with a neodymium motor and ferrofluid cooling.
- Adjustable Tap Settings: Provides 3.75W, 7.5W, 15W, and 30W taps for output control across 70V systems.
- 100V Compatible: Supports 100V operation using the available 7.5W, 15W, and 30W tap settings.
- Weather-Resistant Build: Uses outdoor-ready materials for dependable surface-mount placement in exposed environments.

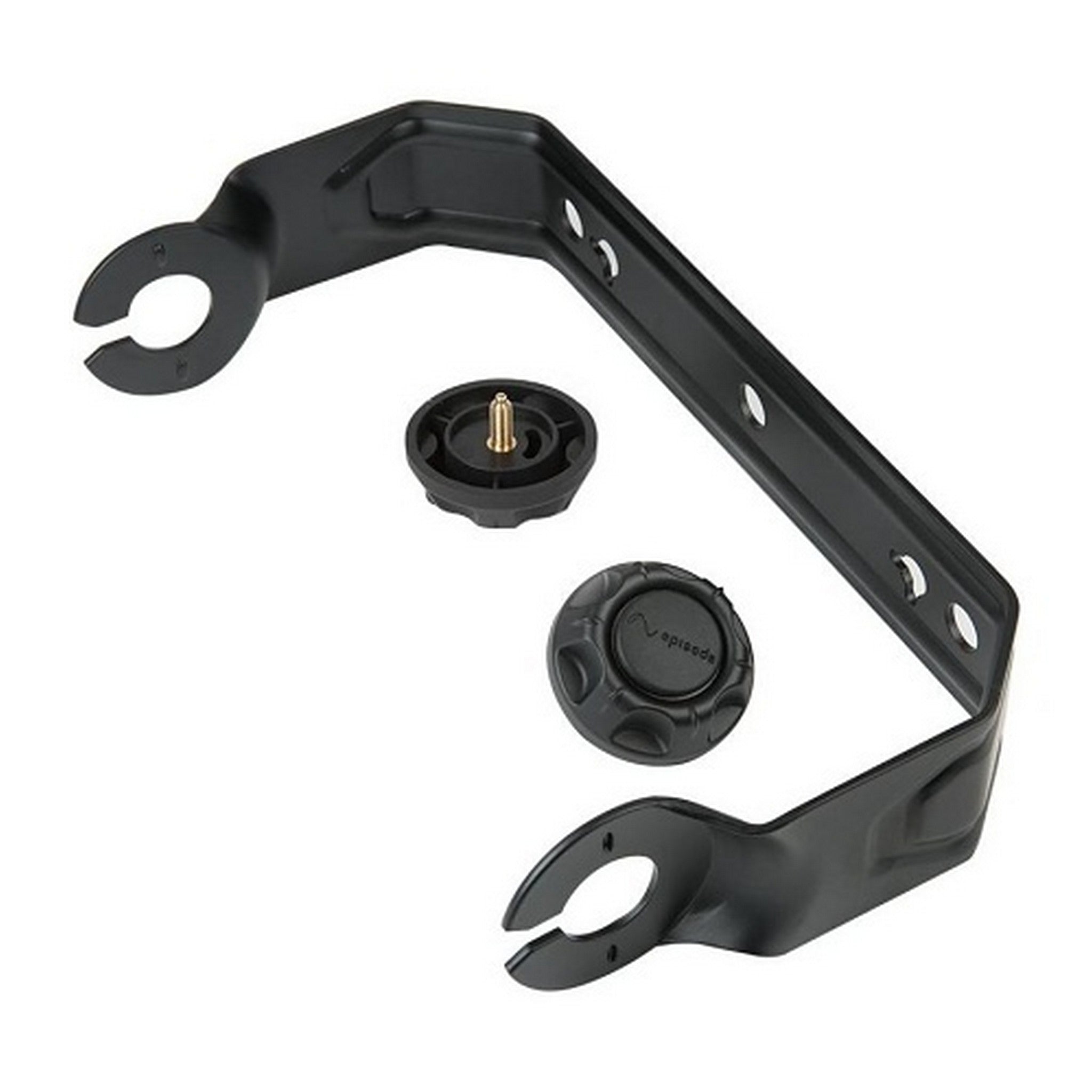

- Easy-Locking Bracket: Simplifies mounting and aiming for faster commercial speaker installation.
- Wide Dispersion: Provides 110-degree coverage to help distribute sound evenly across the listening area.
Technical Specifications
- Brand: Episode
- Model: ECS-500-AW70V-6-BLK
- ADI Part Number: 8P-AW70V6BLK
- Product Line: All-Weather
- Product Series: Commercial
- Product Type: 70V Speaker
- Sold As: Each
- Color: Black
- Indoor/Outdoor: Outdoor
- Speaker Size: 6.5″
- Woofer: 6.5″ polypropylene cone with Nomex spider and high-temperature voice coil
- Tweeter: 1″ aluminum dome with neodymium motor and ferrofluid cooling

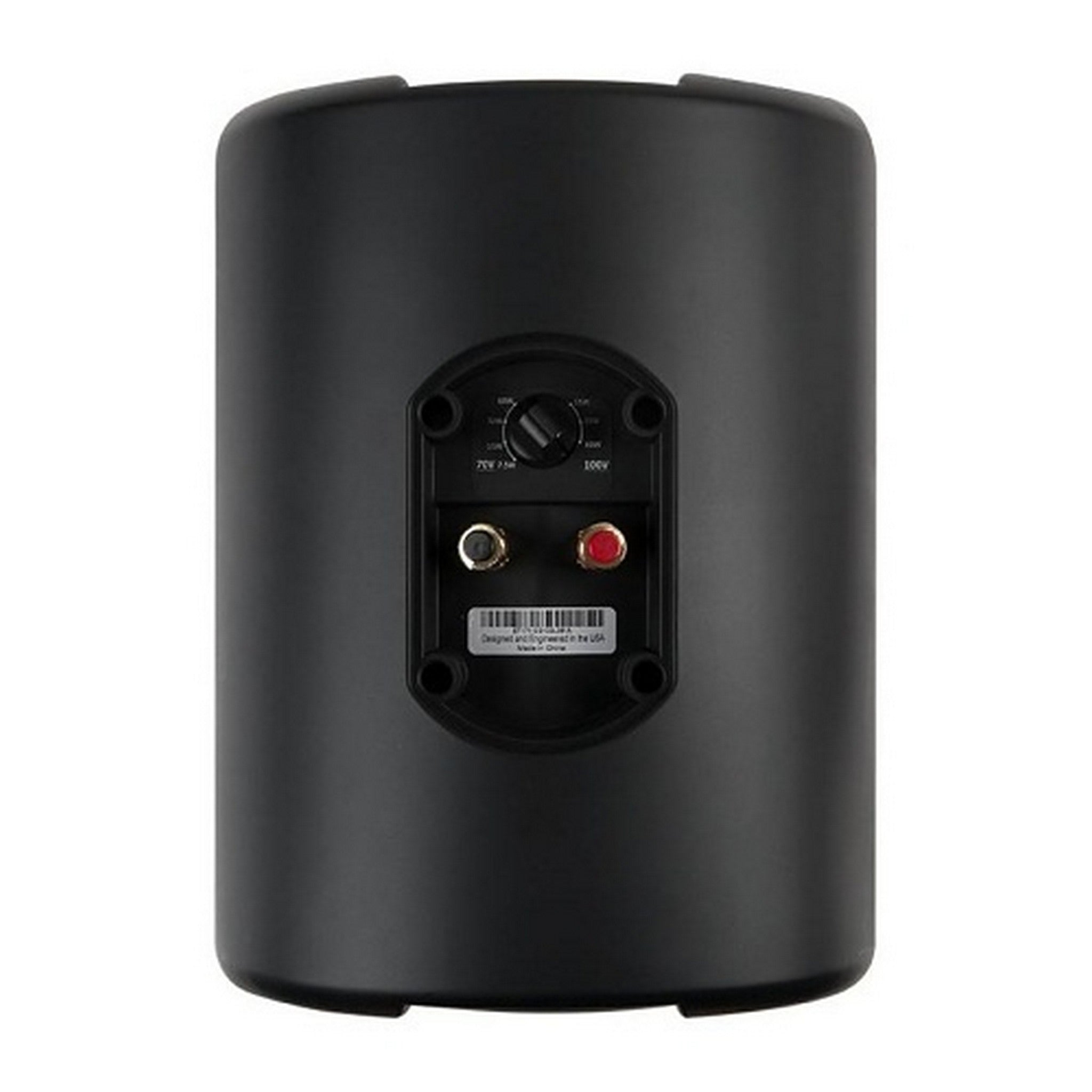

- Connector Type: Gold-plated heavy-duty 5-way binding posts
- Primary Voltage: 70.7V / 100V
- Tap Settings: 3.75W at 70V only, 7.5W, 15W, 30W
- Frequency Response: 65Hz – 20kHz
- Crossover Frequency: 2.0kHz
- Sensitivity: 88dB
- Dispersion Angle: 110°
- Grille Type: Powder-coated micro-perf aluminum
- Dimensions: 7.5″ W x 11.1″ H x 7.7″ D
- Weight: 8.9 lbs
What’s Included
- Episode ECS-500-AW70V-6-BLK All-Weather Commercial Series 70V Surface Mount Speaker
