Ubiquiti 10G Duplex LC Fiber Optic Module 20 Pack

Description

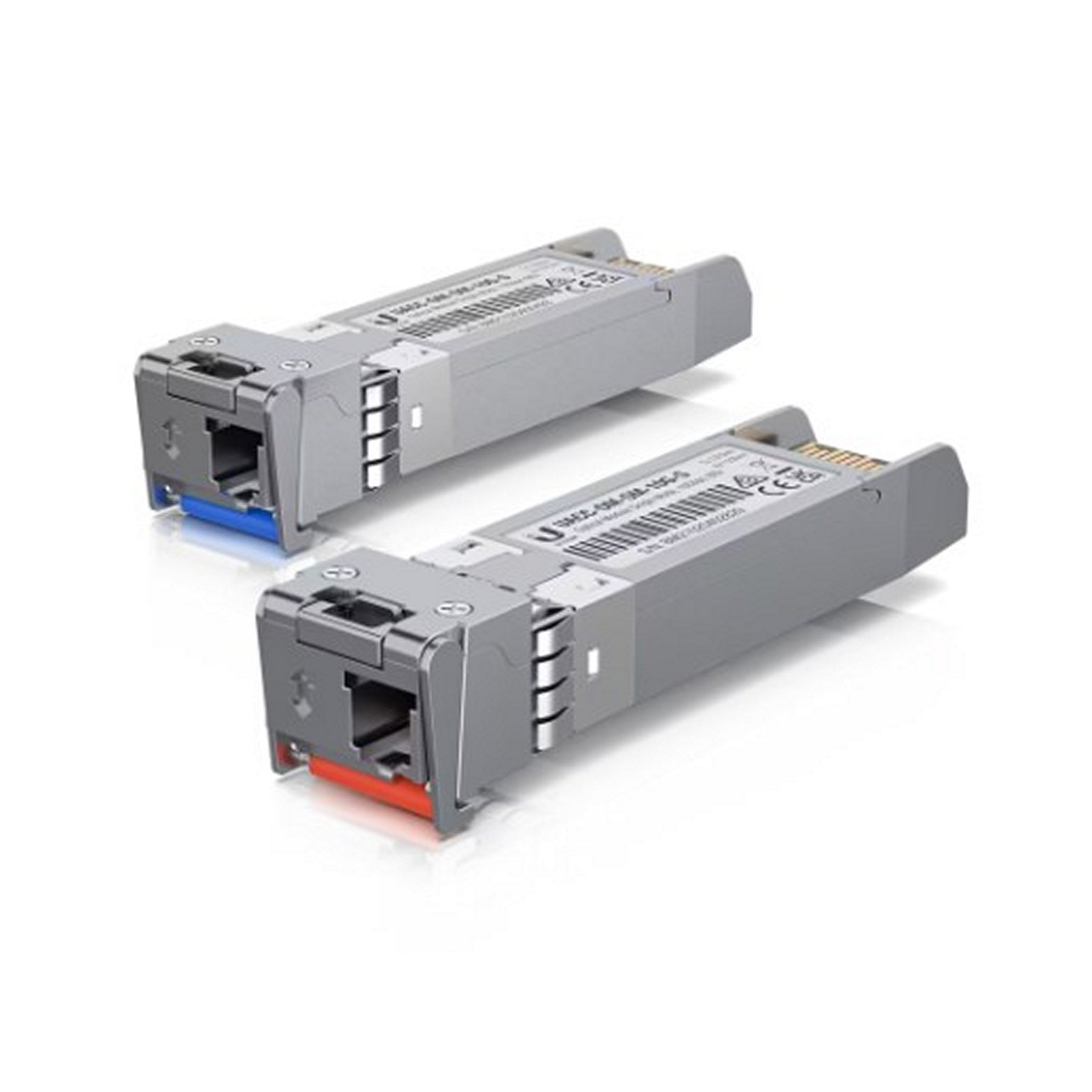

Ubiquiti 10G Bidirectional Single-Mode Optical Module 20-Pack

The Ubiquiti 10G Bidirectional Single-Mode Optical Module is designed for high-speed network connectivity over long distances, providing reliable data transmission at 10 Gbps. The module uses single-mode fiber and is ideal for 10 km cable distance applications. This module, with a simplex LC connector, must be used in pairs (blue and red latch) for both transmission and reception, supporting bi-directional communication. Available in 2-pack and 20-pack options, it is a cost-effective solution for large-scale fiber deployments.

Key Features

• Supports single-mode fiber for high-speed data transfer
• Bidirectional communication with paired blue and red latch connectors
• Max data rate of 10 Gbps
• Up to 10 km cable distance
• Available in 2-pack and 20-pack options

Technical Specification

Supported Media: Single-mode fiber
Connector Type: (1) LC
BiDi: Yes
TX Wavelength: Blue latch: 1270 nm, Red latch: 1330 nm (must be used in pairs)
RX Wavelength: Blue latch: 1330 nm, Red latch: 1270 nm (must be used in pairs)
Data Rate: 10 Gbps
Max Power Consumption: 1W
Cable Distance: 10 km
Ambient Operating Temperature: 0 to 70° C (32 to 158° F)
Pack Options: 2-pack, 20-pack
Warning: CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
