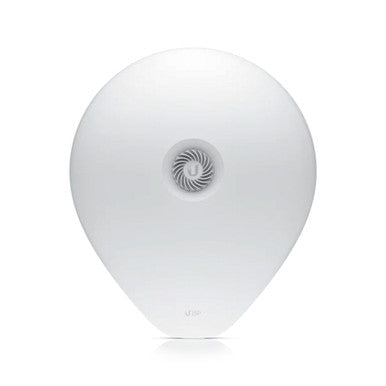

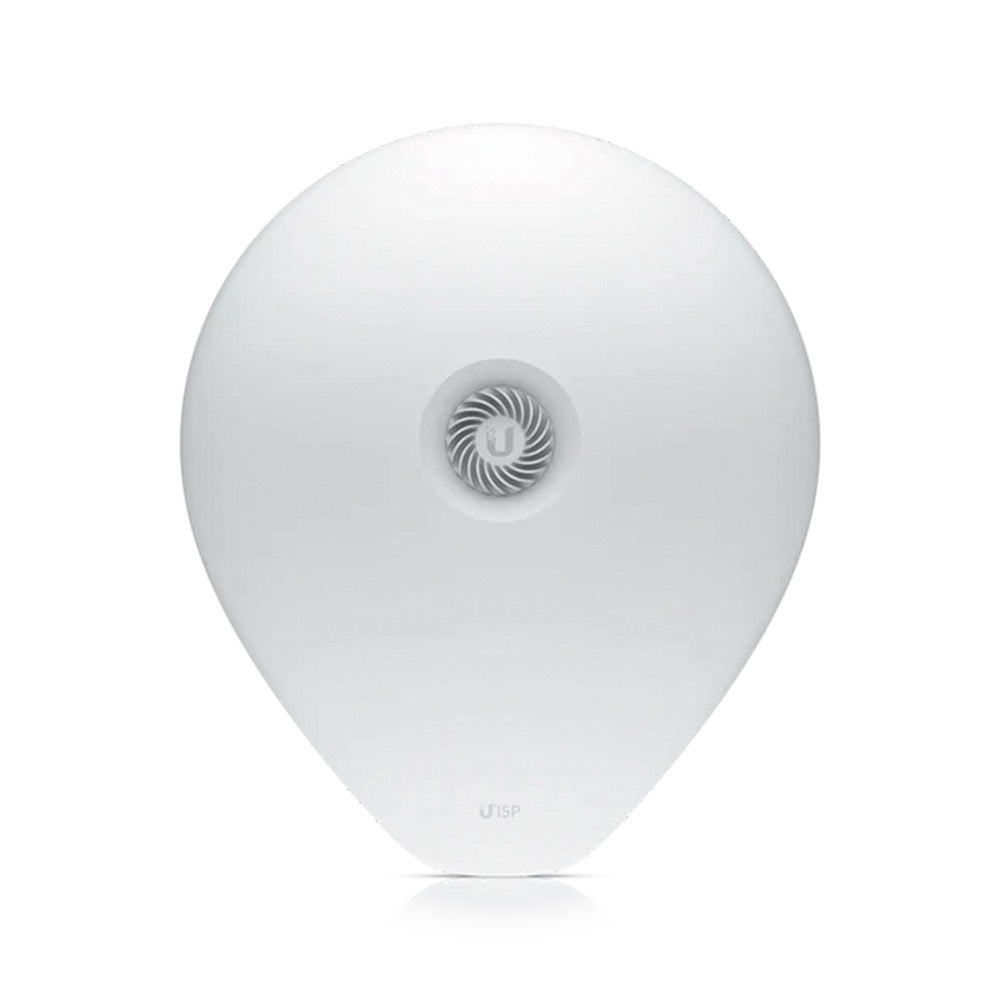

Ubiquiti AF60-XG-US 60GHz Point-to-Point Bridge 6Gbps 10G SFP+

Description

PRODUCT OVERVIEW

SKU: AF60-XG-US – 4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.

PRODUCT TYPE

Antennas (Networking)

KEY FEATURES

• Low-interference, 60 GHz spectrum
• High-gain dish antenna
• 5 GHz backup radio
• 4+ km link range
• Supports channel bonding to achieve up to a 6 Gbps throughput rate
• Terragraph-certified
• 10G SFP+ port
• Integrated GPS
• Link planning support via ISP Design Center
• Simple, Bluetooth-powered setup with the UISP® Mobile app
• Managed with the UISP application: Version 1.4.3 and later
• Managed with the UISP Mobile app: Version 2.19 and later (iOS/ Android)
• 779 x 664 x 383 mm (30.68 x 26.14 x 15.06″)
• Without mount: 8.6 kg (19 lb)
• With mount: 13 kg (28.7 lb)
• Mechanical Enclosure materials: UV stabilized polycarbonate, steel
• Mount material: Galvanized steel

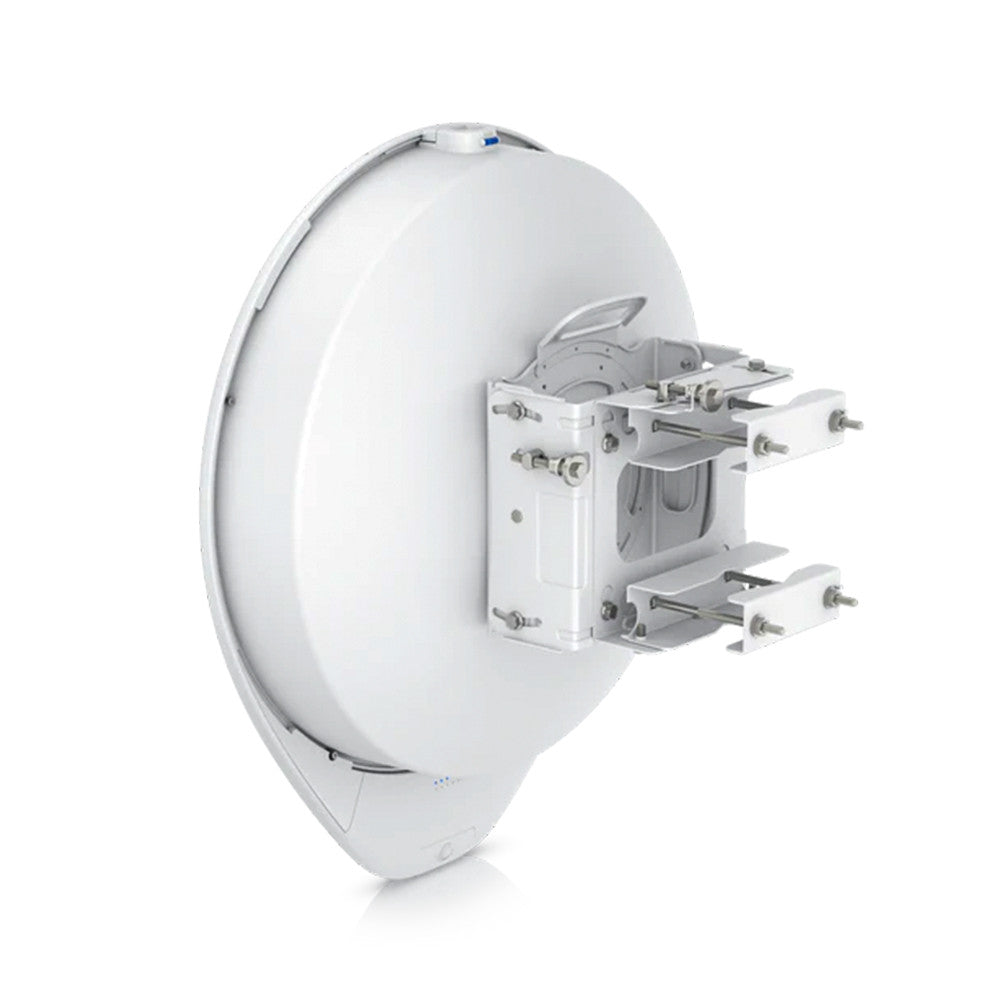

• Mounting: Precision alignment kit (included)

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: AF60-XG-US
• Product Type: Antennas (Networking)
• Low-interference, 60 GHz spectrum
• High-gain dish antenna
• 5 GHz backup radio
• 4+ km link range
• Supports channel bonding to achieve up to a 6 Gbps throughput rate
• Terragraph-certified
• 10G SFP+ port
• Integrated GPS
• Link planning support via ISP Design Center
• Simple, Bluetooth-powered setup with the UISP® Mobile app
• Managed with the UISP application: Version 1.4.3 and later
• Managed with the UISP Mobile app: Version 2.19 and later (iOS/ Android)
• 779 x 664 x 383 mm (30.68 x 26.14 x 15.06″)
• Without mount: 8.6 kg (19 lb)
• With mount: 13 kg (28.7 lb)
• Mechanical Enclosure materials: UV stabilized polycarbonate, steel
• Mount material: Galvanized steel
• Mounting: Precision alignment kit (included)
• Pole compatibility: Ø40 to 80 mm (Ø1.5 to 3.15″)
• Wind loading: 422 N at 200 km/h (94.86 lbf at 125 mph)
• Hardware Processor: Quad-Core ARM® Cortex® A72 at 1.6 GHz
• Memory: 2 GB DDR4
• Networking interface: (1) GbE RJ45 port
• (1) 1/10G SFP+ port
• Max. power consumption: 31.2W
• Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎
• Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
• Power supply: 48V DC, 0.65A Gigabit PoE adapter (included)
• Supported voltage range: 44–54V DC

INTENDED USE / APPLICATIONS

• Outdoor wireless networking links
• Point-to-point or point-to-multipoint deployments
• Pole, mast, or tower installations where compatible
