Ubiquiti airMAX GigaBeam Plus Bridge 60GHz Half Link with True Duplex [GBE-Plus-US]

Description

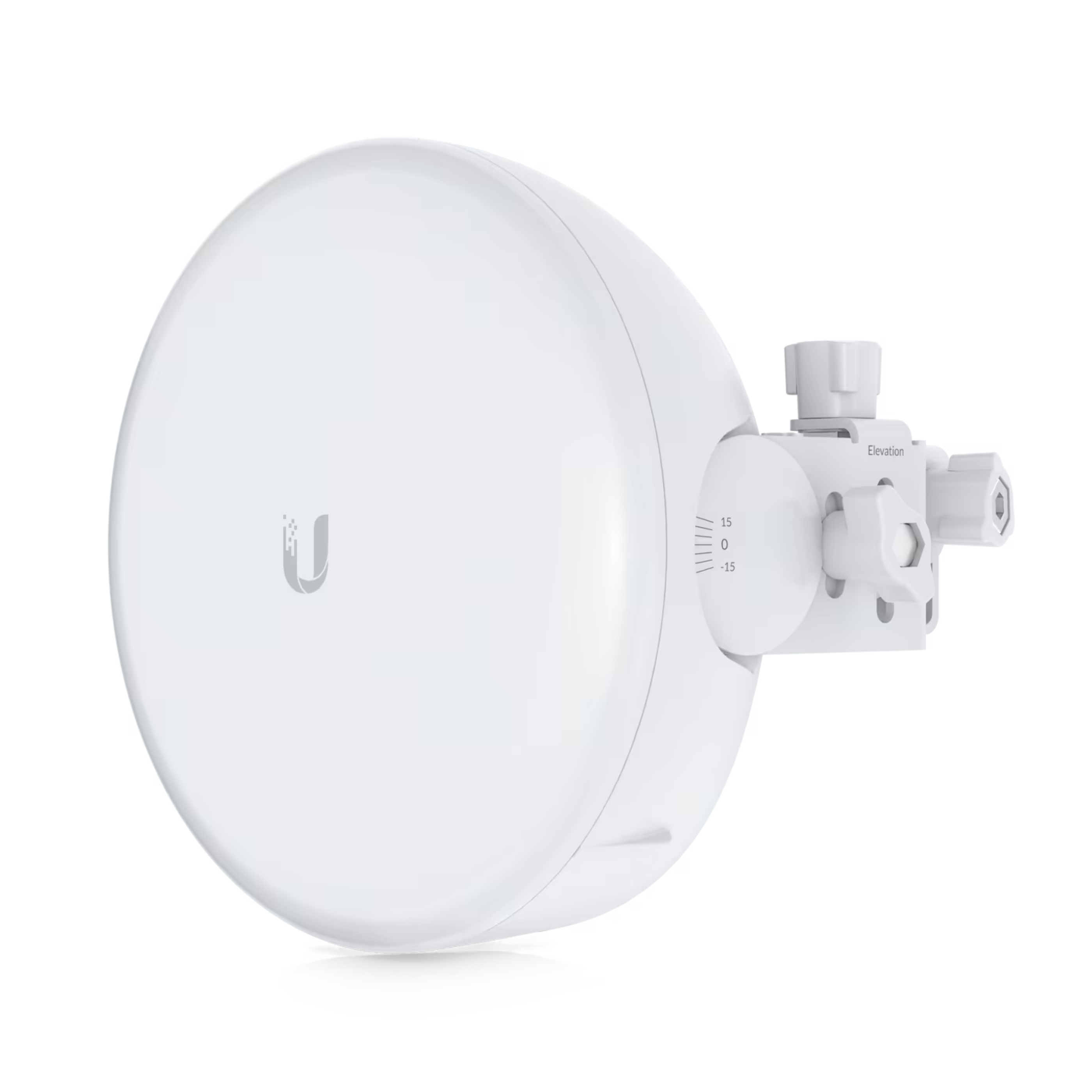

The Ubiquiti GBE-Plus is a 60 GHz Radio capable of supporting 1 Gbps rates with very low latency. GBE-Plus can be used as a high throughput backhaul/edge PTP solution in WISP deployments. Housed in a outdoor industrial design, the GBE-Plus achieves significant gain improvements with an integrated Cassegrain reflector design. The GBE-Plus is easily set-up, configured and managed through the UISP dashboard and UISP Mobile app via Bluetooth.

Product Features:

• Low-Interference 60 GHz Spectrum
• 35 dBi Antenna Gain with Integrated Reflector
• 1.5+ Gbps Bidirectional Throughput with Low Latency
• Long Range, up to 1.5 km
• Quick Setup Using the UISP App via Bluetooth
• Operating Frequency (Depends on regulatory region): 57,000 – 66,000 MHz
• Max. Conducted TX Power: 17 dBm
• Channel Bandwidth: 2160 MHz
• Operating Channels: 58320, 60480, 62640, 64800 MHz
• Antenna Gain: 35 dBi
• HPOL: NaN (The Antenna is Only Vertically Polarized)
• VPOL: 3°
• Elevation: 3°
• Management Radio: 2400 – 2483.5 MHz
• Electrical Downtilt: 0°

Product Specifications:

• Processor: Quad-Core ARM Cortex A7
• Memory: 256 MB DDR3
• Networking Interface: 10/100/1000 Mbps Ethernet RJ45 Management Interface:
• Ethernet In-Band
• Bluetooth
• RF Connections: Internal
• Max. Power Consumption: 11W
• Power Method: Passive PoE (Pairs 4, 5+; 7, 😎
• 24VDC, 0.5A Gigabit PoE Adapter
• 24V, 1A for using Motor Accessory
• Supported Voltage Range: 22 to 26VDC
• ESD/EMP Protection: Air/Contact: ± 24kV
• Operating Temperature: -40 to 60° C (-40 to 140° F)
• Operating Humidity: 5 – 95% Non-condensing
• Certifications: FCC, IC, CE

Product Includes:
(1) GBE-Plus Radio System
(1) Pipe Clamp
(1) PoE Injector
(1) Corded US Plug
