Ubiquiti airMAX PowerBeam 5 AC Point-to-Point Bridge for Outdoor Use

Description

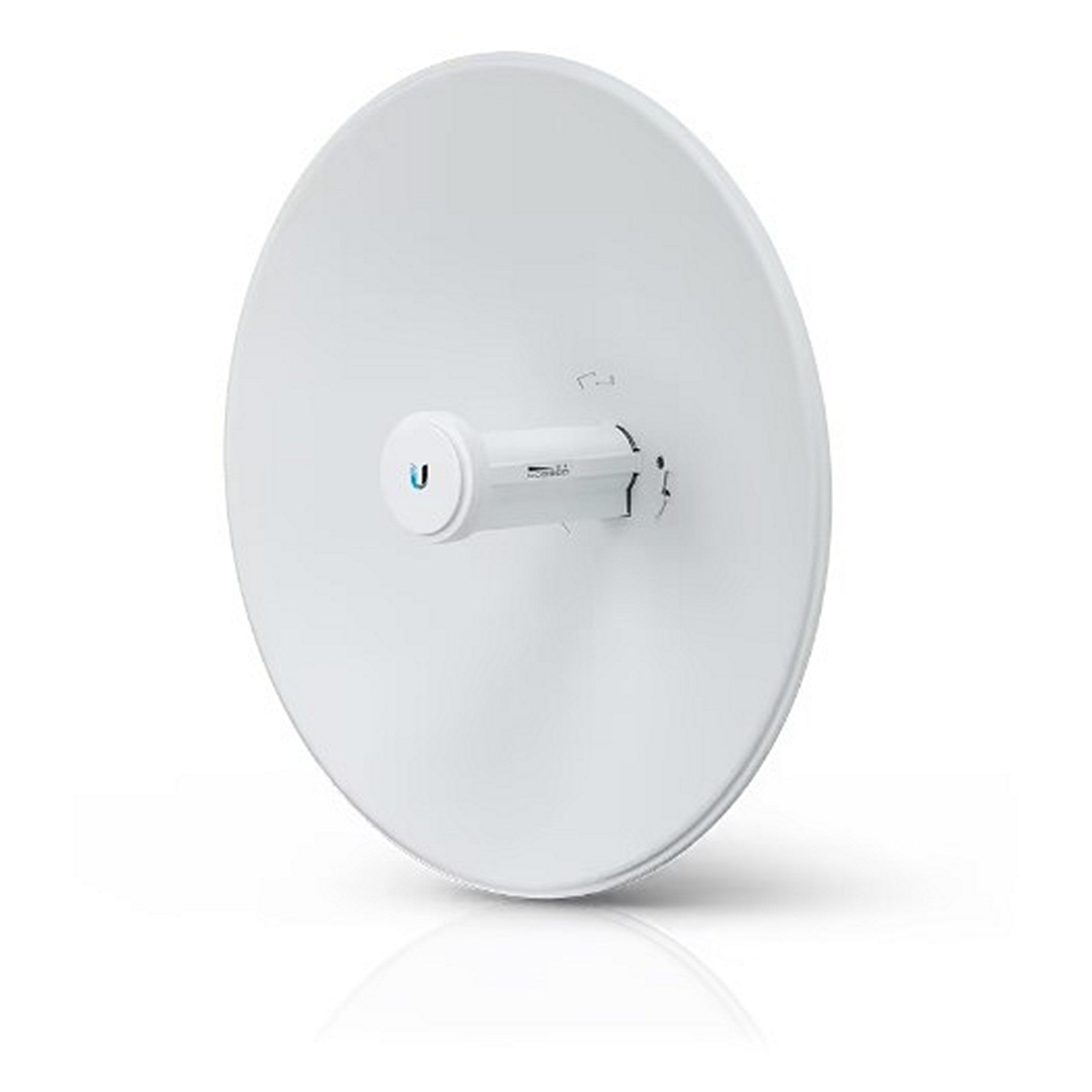

Ubiquiti PowerBeam 5AC Point-to-Point Bridge

The Ubiquiti PowerBeam 5AC is a high-performance 5 GHz point-to-point (PtP) bridge that ensures exceptional throughput and reliable performance. Designed with an integrated dish reflector, it delivers up to 25 dBi of gain and can reach distances of over 15 km. Its robust construction, easy installation, and weatherproof design make it a perfect solution for outdoor, long-range wireless links. With dedicated spectral analysis and WiFi management radios, it guarantees optimal performance and control in various environments.

Key Features

• 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector
• Long-range connectivity of 15+ km with 450+ Mbps throughput
• Robust design with UV-stabilized plastic for harsh environments
• Easy installation with included pole mount kit
• Optimized for high-speed wireless connections in outdoor settings

Technical Specifications

Dimensions: 420 x 420 x 230 mm (16.5 x 16.5 x 9.1″)
Weight: 2.2 kg (4.9 lb)
Enclosure material: UV-stabilized plastic, powder-coated SPCC
Wind loading: 380 N at 200 km/h (85.4 lbf at 125 mph)
Wind survivability: 200 km/h (125 mph)
Mounting: Pole mount kit (Included)
Networking interface: (1) GbE RJ45 port
Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Max. power consumption: 8.5W
Supported voltage range: 20–27V DC
Power supply: 24V, 0.5A gigabit PoE adapter (Included)
ESD/EMP protection: Air/contact: ± 24 kV
LEDs: (1) Power, (1) LAN, (4) WLAN
Salt fog test: IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5
Vibration test: IEC 68-2-6
Temperature shock test: IEC 68-2-14
UV test: IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4
Wind-driven rain test: ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5
Ambient operating temperature: -40 to 70°C (-40 to 158°F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC, RoHS
Gain: 25 dBi
Channel sizes: PtP Mode: 10/20/30/40/50/60/80 MHz, PtMP Mode: 10/20/30/40 MHz
Operating Frequency (MHz): Worldwide: 5150-5875 MHz, USA: 5150-5250 MHz, 5250-5350 MHz, 5240-5725 MHz, 5725-5850 MHz
Management Radio (MHz): Worldwide: 2412 – 2472 MHz, USA: 2412 – 2462 MHz
