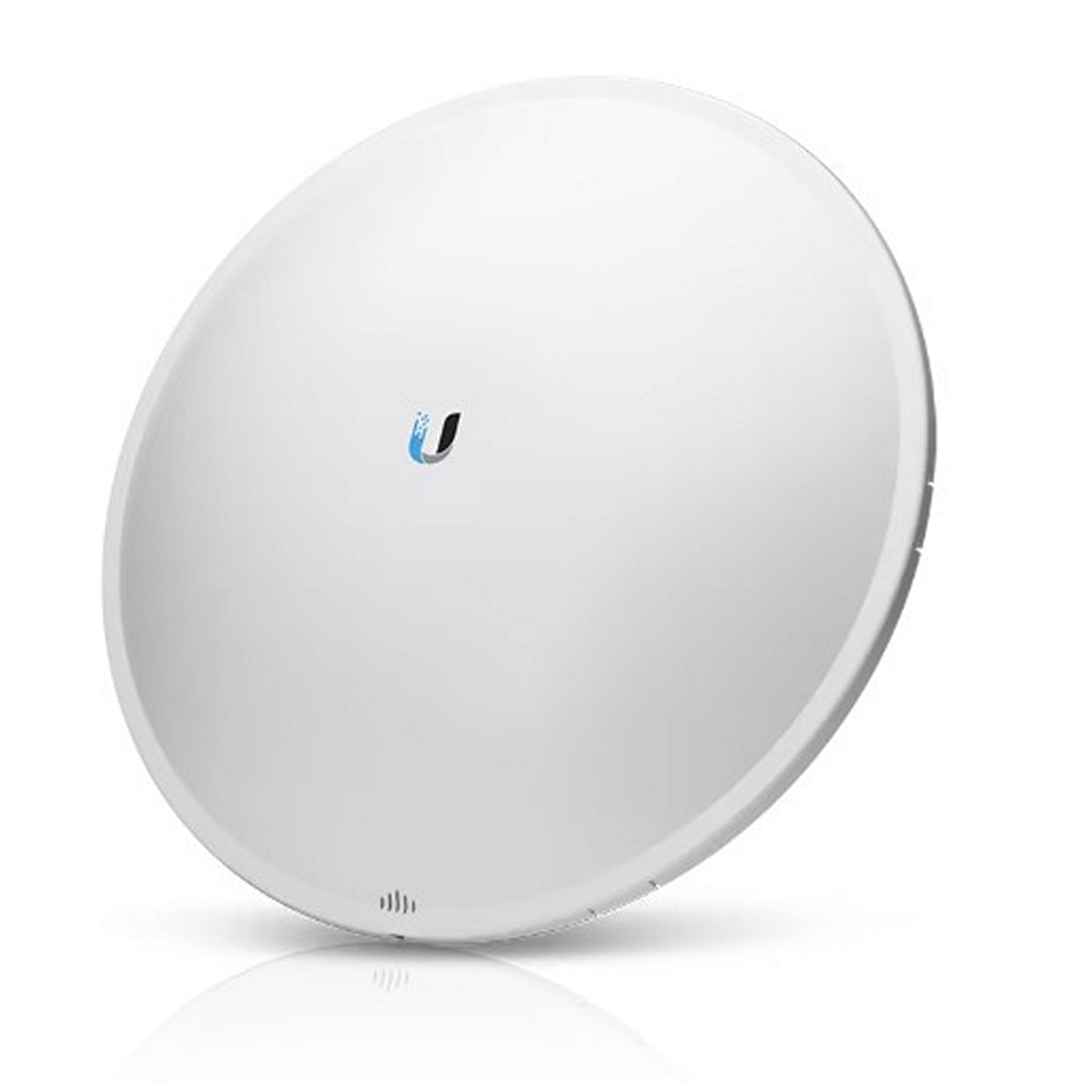

Ubiquiti airMAX PowerBeam 5AC-620 Long-Range 5 GHz WiFi Antenna

Description

Ubiquiti PowerBeam 5AC 620 for High-Speed Outdoor Networking

The Ubiquiti PowerBeam 5AC 620 is a high-performance antenna designed to elevate your wireless network capabilities. With its advanced airMAX ac technology, this outdoor antenna delivers exceptional throughput for point-to-point and point-to-multipoint connections. Ideal for businesses, ISPs, and industrial users, the PowerBeam 5AC 620 ensures reliable, long-distance connectivity while maintaining robust performance in demanding environments. Its integrated radio minimizes cable losses and simplifies installation, while the durable UV-stabilized plastic enclosure ensures resilience against harsh weather conditions.

This antenna’s high-gain 29 dBi capability makes it perfect for long-range wireless links, and its advanced noise immunity enhances stability in RF-dense environments. Complete with a pole mount kit and a comprehensive range of supported frequencies, the PowerBeam 5AC 620 is a versatile and reliable choice for outdoor networking solutions.

Key Features

• High-gain 29 dBi antenna for extended range connectivity.
• Integrated airMAX ac technology for superior throughput.
• Durable UV-stabilized plastic enclosure for outdoor use.
• Includes a pole mount kit for easy installation.
• Advanced noise immunity for optimal performance in RF-dense areas.

Technical Specifications

Mechanical
Dimensions: 620 x 620 x 386 mm (24.4 x 24.4 x 15.2″)
Weight: 6.4 kg (14.1 lb)
Enclosure material: Outdoor UV-stabilized plastic
Mounting: Pole mount kit (Included)
Wind loading: Without radome: 1510 N at 200 km/h (340 lbf at 125 mph); With radome: 1830 N at 200 km/h (411 lbf at 125 mph)
Wind survivability: 200 km/h (125 mph)

Hardware
Networking interface: (1) GbE RJ45 port
Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply: 24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range: 20-27V DC
Max. power consumption: 8.5W
ESD/EMP protection: Air/contact: ± 24 kV
LEDs: (1) Power, (1) LAN, (4) WLAN
Signal strength LEDs: Software-adjustable to correspond to custom RSSI levels
Salt fog test: IEC 68-2-11 (ASTM B117)
Vibration test: IEC 68-2-6
Temperature shock test: IEC 68-2-14
UV test: IEC 68-2-5 at 40°C (104°F)
Wind-driven rain test: ETS 300 019-1-4
Ambient operating temperature: -40 to 70°C (-40 to 158°F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: FCC, IC, CE, RoHS

System
Gain: 29 dBi
Max. VSWR: 1.6:1
Channel sizes: PtP Mode: 10/20/30/40/50/60/80 MHz; PtMP Mode: 10/20/30/40 MHz
Polarization: Dual linear
Operating Frequency (MHz):
Worldwide: 5150 – 5875 MHz
USA:
U-NII-1: 5150 – 5250 MHz
U-NII-2A: 5250 – 5350 MHz
U-NII-2C: 5470 – 5725 MHz
U-NII-3: 5725 – 5850 MHz
