Ubiquiti BiDi Optical Module Single-Mode Fiber Networking

Description

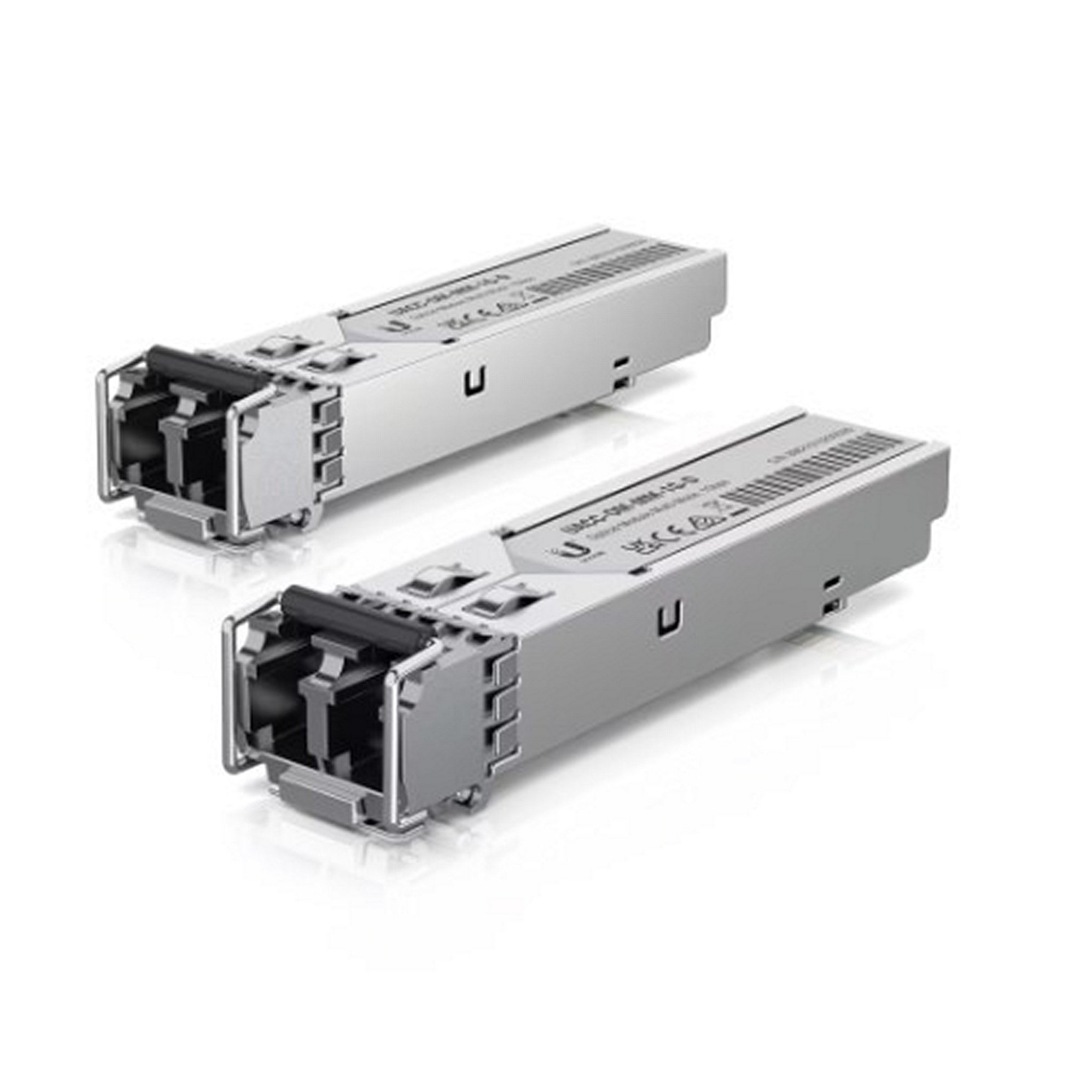

Ubiquiti 1 Gbps BiDirectional Single-Mode Optical Module

The Ubiquiti 1 Gbps BiDirectional Single-Mode Optical Module offers exceptional data transfer capabilities for single-mode fiber networks. Featuring bi-directional (BiDi) functionality, this module ensures seamless data transmission over long distances with minimal power consumption. Its compact design and advanced wavelength pairing make it ideal for enterprise-level installations. Designed to operate at ambient temperatures up to 70°C, it ensures reliable performance in various environments. This module must be used in pairs (blue latch and yellow latch) for optimal functionality.

Key Features:

• BiDirectional single-mode fiber transmission
• Compact, durable design with minimal power consumption
• Supports cable distances up to 3 km
• Available in 2-pack and 20-pack options

Technical Specification

Supported Media: Single-mode fiber
Connector Type: (1) LC
BiDi: Yes
TX Wavelength: Blue latch: 1310 nm; Yellow latch: 1550 nm
RX Wavelength: Blue latch: 1550 nm; Yellow latch: 1310 nm
Data Rate: 1 Gbps
Max. Power Consumption: 0.66W
Cable Distance: 3 km
Ambient Operating Temperature: 0 to 70°C (32 to 158°F)
Pack Options: 2-pack, 20-pack
WARNING: CLASS 1 LASER PRODUCT, IEC/EN 60825-1:2014 – Do not look into the ends of the fiber optic cable or SFP module while converters are powered.
