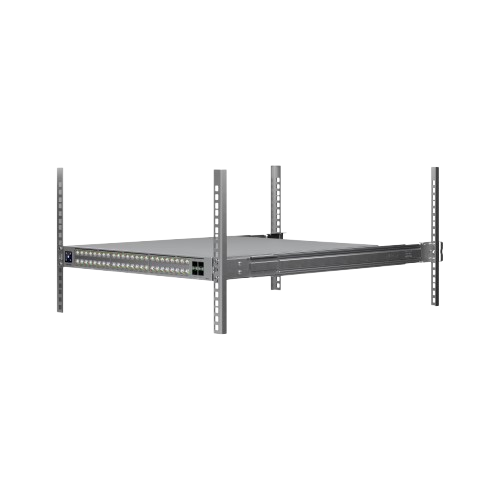

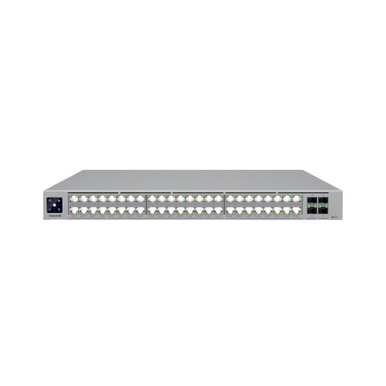

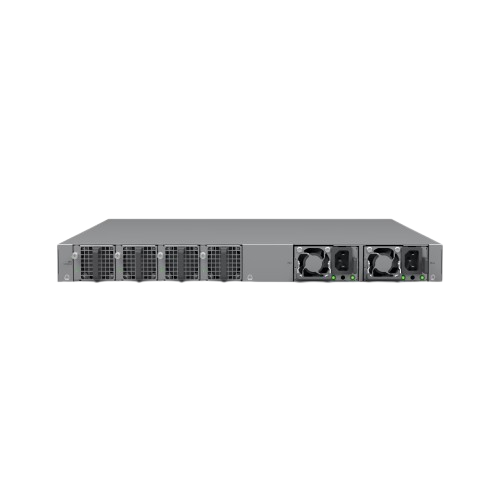

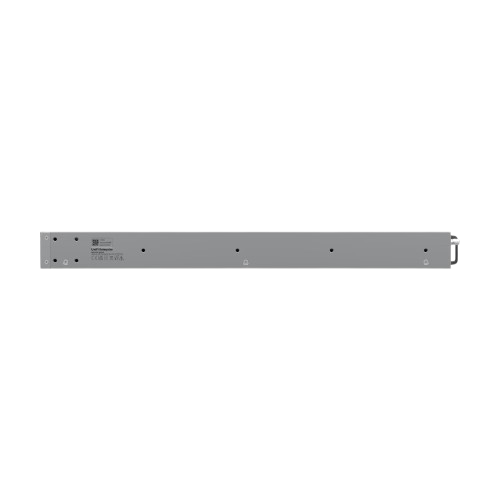

Ubiquiti ECS-48-POE 48-Port PoE+++ 10GbE Layer 3 Enterprise Switch

$3,931.46

In stock

Spend & save Spend $149+, save up to $500 Applied automatically
Spend $149Save $50
Spend $399Save $100
Spend $799Save $200
Spend $1,299Save $300
Spend $1,999Save $500

Discount applied automatically in cart.

ECS-48-POE Categories: , , , Tags: , ,
SHARE

Description

PRODUCT OVERVIEW

Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design

PRODUCT TYPE

Routers and Switches

KEY FEATURES

  • 1.3′ touchscreen with AR switch management
  • (16) Multi-speed 2.5 GbE PoE+++ ports (2.5G/1G/100M/10M)
  • (32) Multi-speed 10 GbE PoE+++ ports (10G/5G/2.5G/1G/100M/10M)
  • 1.150W total PoE supply
  • (4)25G SFP28 ports
  • Reset button
  • (4) Hot-swappable fan modules
  • Layer 3 switching features
  • (2) Hot-swappable 1.200W power modules
  • Technical Specification
  • Overview: Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5′)
  • Port Layout: 2.5 GbE RJ45: 16 (All PoE+++) (2.5G/1G/100M/10M)
  • 10 GbE RJ45: 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
  • 25G SFP28: 4 (25G/10G/1G)
  • 100G QSFP28: 2 (100G)
  • Max. PoE Output: Up to PoE+++
  • Total PoE Availability: 200-240V AC Shared Mode: 2,150W
  • 100-120V AC Shared Mode: 1,750W

TECHNICAL SPECIFICATIONS

  • Brand: Ubiquiti
  • Model: ECS-48-POE
  • Product Type: Fiber
  • 1.3′ touchscreen with AR switch management
  • (16) Multi-speed 2.5 GbE PoE+++ ports (2.5G/1G/100M/10M)
  • (32) Multi-speed 10 GbE PoE+++ ports (10G/5G/2.5G/1G/100M/10M)
  • 1.150W total PoE supply
  • (4)25G SFP28 ports
  • Reset button
  • (4) Hot-swappable fan modules
  • Layer 3 switching features
  • (2) Hot-swappable 1.200W power modules
  • Overview: Dimensions: 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5′)
  • Port Layout: 2.5 GbE RJ45: 16 (All PoE+++) (2.5G/1G/100M/10M)
  • 10 GbE RJ45: 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M)
  • 25G SFP28: 4 (25G/10G/1G)
  • 100G QSFP28: 2 (100G)
  • Max. PoE Output: Up to PoE+++
  • Total PoE Availability: 200-240V AC Shared Mode: 2,150W
  • 100-120V AC Shared Mode: 1,750W
  • 200-240V AC Redundant Mode: 950W
  • 100-120V AC Redundant Mode: 750W
  • Redundancy: (2) Hot-Swappable PSUs
  • (4) Hot-Swappable Fans
  • Layer 3: ✓
  • Form Factor: Rack mount (1U, Full-Depth)
  • Etherlighting™: ✓
  • Performance: Switching Capacity: 920 Gbps
  • Total Non-Blocking Throughput: 460 Gbps
  • Forwarding Rate: 684 Mpps
  • Supported VLANs: 1,000
  • MAC Address Table Size: 128,000

INTENDED USE / APPLICATIONS

  • Professional networking and communications deployments
  • Commercial, institutional, or industrial installations
  • Use with compatible equipment according to manufacturer specifications
