Description

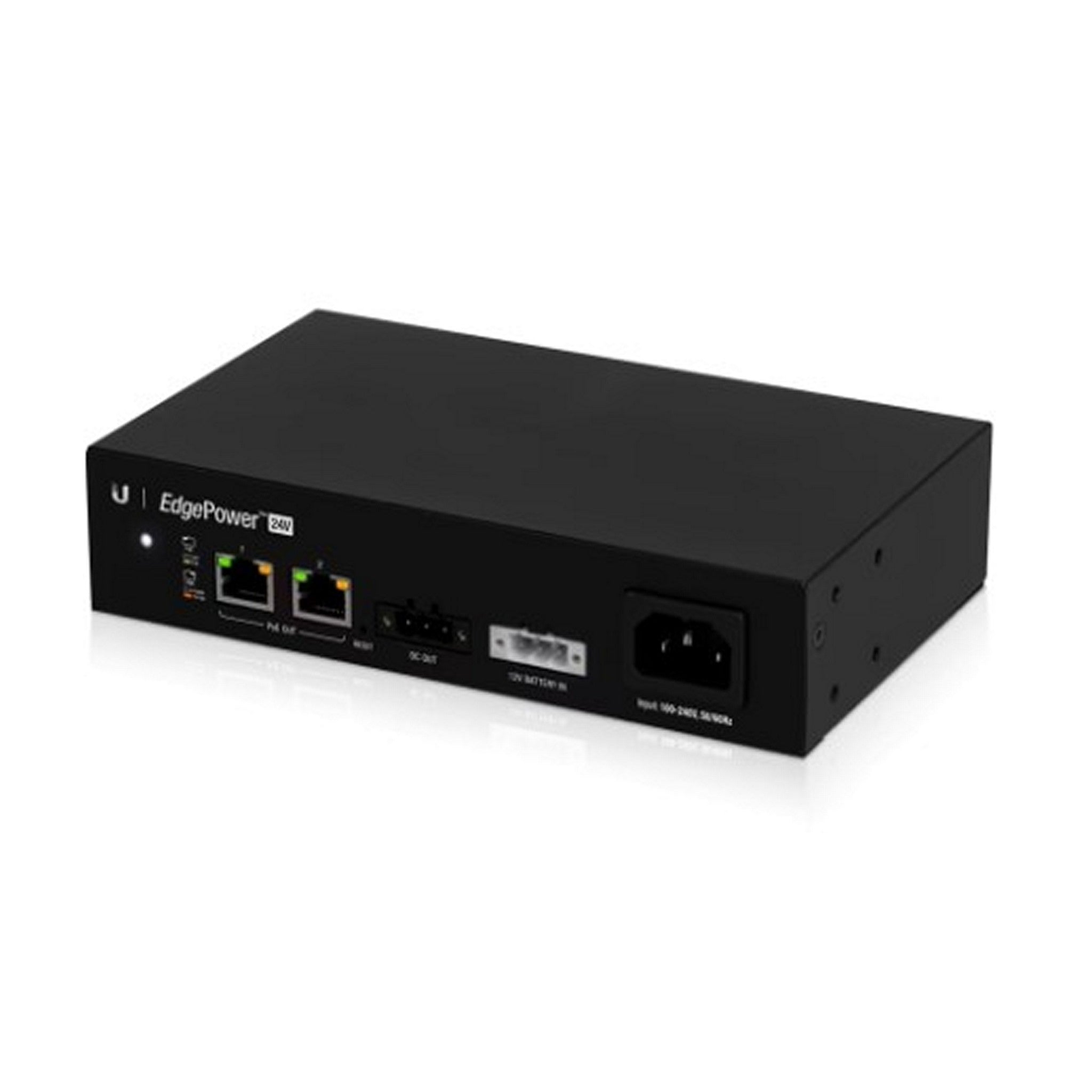

Ubiquiti EP-Supply Power Supply with PoE Output
The Ubiquiti EP-Supply is a compact power supply unit designed for efficient operation with AC and DC input. It is ideal for environments where reliable power and PoE (Power over Ethernet) is required. With a universal AC input of 100-240V, it also supports a 12V DC lead-acid battery input, providing a versatile power solution. The EP-Supply ensures optimal system operation, delivering up to 72W with 54V DC passive PoE output. It is equipped with robust ESD/EMP protection and operates within a wide temperature range.
Key Features
- Dual 10/100 Mbps Ethernet ports for flexible network connectivity.
- Supports both AC and DC input for versatile power options.
- Max power consumption of 72W for efficient performance.
- ESD protection of ±12kV (air) and ±12kV (contact).
- Compact size and lightweight design, ideal for installation in constrained spaces.
Technical Specifications
Dimensions: 4.5″ x 7.6″ x 1.7″ (115 x 192 x 43.7 mm)
Weight: 1.4 lbs (650 g)
Networking interface: (2) 10/100 Mbps RJ45 ports
Management interface: Ethernet In-Band
Power method: AC input: 100-240V AC, 50-60 Hz; DC terminal block for battery input
Power supply: AC/DC 72W for AC input; 12V DC lead acid battery input
PoE output: (2) 54V DC passive PoE (Pins 4, 5+; 7, 😎
DC output: 54V, 1.3A
LEDs: System status, PoE, link/activity for RJ45 data ports
ESD/EMP protection: Air ± 12kV, contact ± 12kV
Ambient operating temperature: 32 to 104° F (0 to 40° C)
Ambient operating humidity: 10 to 90% non-condensing
Certifications: CE, FCC, IC
