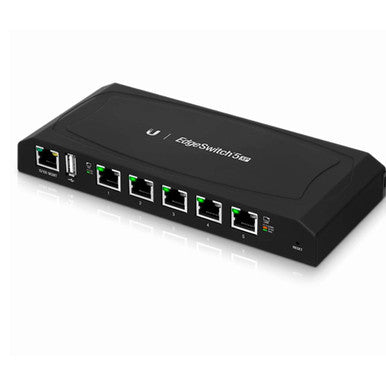

Ubiquiti ES-5XP 5-Port Gigabit PoE Switch 24V/48V

$101.11

In stock

Spend & save Spend $149+, save up to $500 Applied automatically
Spend $149Save $50
Spend $399Save $100
Spend $799Save $200
Spend $1,299Save $300
Spend $1,999Save $500

Discount applied automatically in cart.

ES-5XP Categories: , , , Tags: ,
SHARE

Description

PRODUCT OVERVIEW

Ubiquiti EdgeSwitch 5XP managed switch with five 10/100/1000 Ethernet data ports, configurable 24V passive PoE, dedicated 10/100 management port, and wall-mount capability.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• (5) 10/100/1000 Ethernet data ports
• (1) 10/100 Ethernet management port
• Configurable 24V passive PoE per data port
• Maximum PoE wattage per data port: 11.5 W
• EdgeSwitch XP Configuration Interface
• VLAN configuration
• STP and RSTP support
• Jumbo Frame support
• Port monitoring
• Ping Watchdog
• Configurable alerts
• Wall-mountable

TECHNICAL SPECIFICATIONS

• Manufacturer: Ubiquiti
• Model: EdgeSwitch 5XP
• Part Number: ES-5XP
• Data Ports: (5) 10/100/1000 Ethernet
• Management Port: (1) 10/100 Ethernet
• PoE Method: Passive
• PoE Configuration: Off / 24V per data port
• PoE Output Voltage Range: 22–24VDC
• Maximum PoE Wattage Per Data Port: 11.5 W
• Power Input: 24VDC, 2.5A power adapter
• Maximum Power Consumption: 60 W
• Processor: MIPS 24K, 400 MHz
• System Memory: 64 MB
• Code Storage: 8 MB
• USB Port: USB 2.0 Type A, reserved for future use
• ESD Rating: 24 kV Air / 24 kV Contact
• Dimensions: 197 x 87.5 x 27.3 mm
• Weight: 250 g
• Wall-Mount: Yes
• Operating Temperature: -25 to 55°C (-13 to 131°F)
• Operating Humidity: 90% non-condensing
• Certifications: CE, FCC, IC

INTENDED USE / APPLICATIONS

• Providing Gigabit Ethernet connectivity and configurable passive PoE to attached Ubiquiti devices and other devices that support passive PoE
• Connecting both PoE and non-PoE devices through individually configurable data ports
