Ubiquiti Fiber XGS/XG Optical Transceiver for Networks

Description

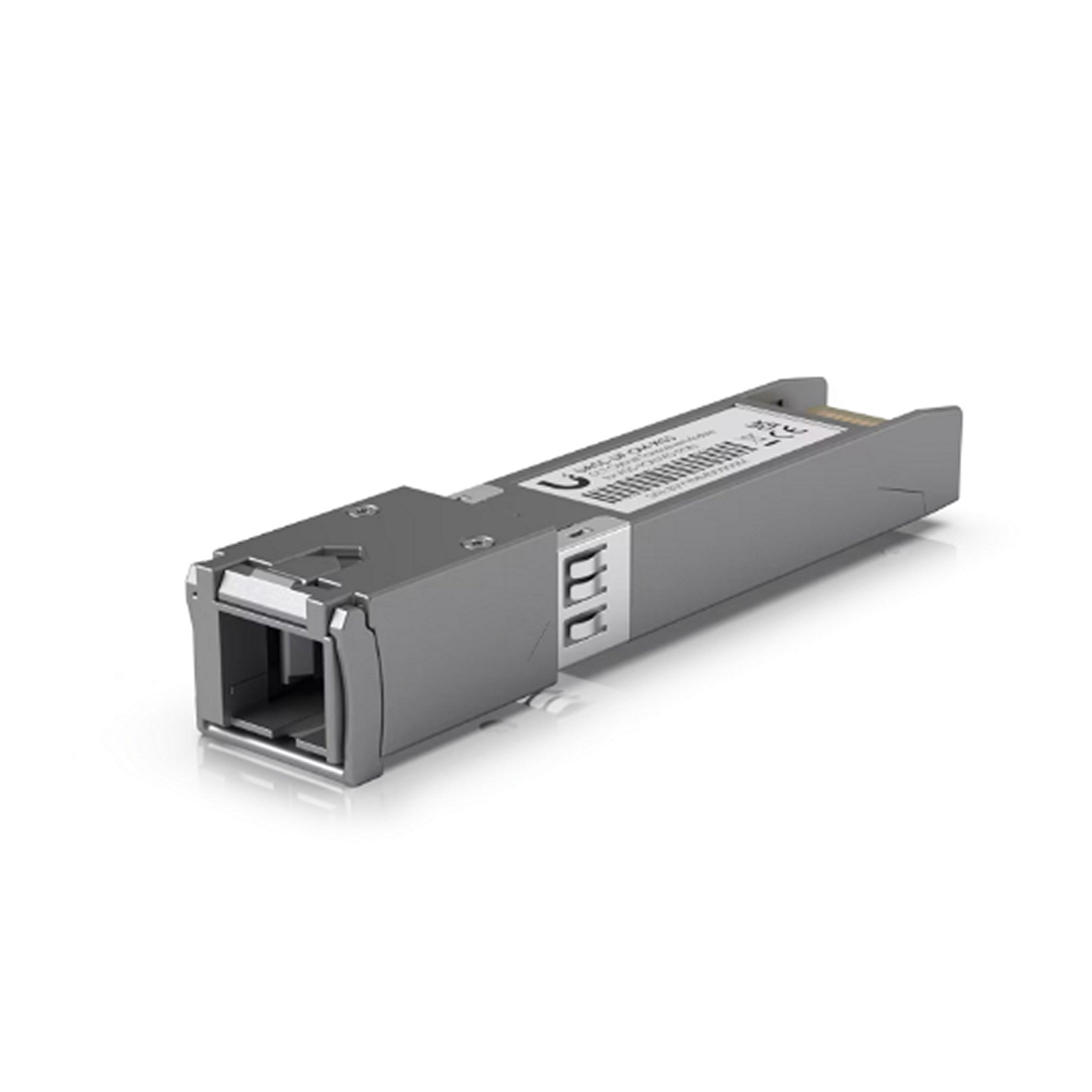

Fiber XGS/XG Optical Transceiver – High-Speed Connectivity

The Fiber XGS/XG Optical Transceiver offers advanced connectivity for fiber-optic networks, supporting both uplink and downlink data rates of up to 10 Gbps. Designed for long-distance connections, this transceiver is compatible with single-mode fiber and features an impressive range of 20 km. Ideal for scalable network deployments, it provides reliable data transmission with low power consumption and works within a broad temperature range, making it a crucial component for high-performance network infrastructure.

Key Features

• Supports single-mode fiber with SC/UPC connector
• 10 Gbps data rate with XGS and XG support
• Compatible with Fiber OLT XGS
• Reliable performance up to 20 km distance
• Efficient power consumption (2.6W max)

Technical Specifications

Supported media: Single-mode fiber
Connector type: (1) SC/UPC
TX wavelength: 1,577nm
RX wavelength: 1,270nm
TX power range: +4 to +7 dBm
RX power range: -9 to -26 dBm
Downlink data rate: 10 Gbps
Uplink data rate: 10 Gbps (XGS) / 2.5 Gbps (XG)
Max. power consumption: 2.6W
Max. cable distance: 20 km
Ambient operating temperature: 0 to 70° C (32 to 158° F)
Storage temperature: -40 to 85° C (-40 to 185° F)
Packaging: Single pack
