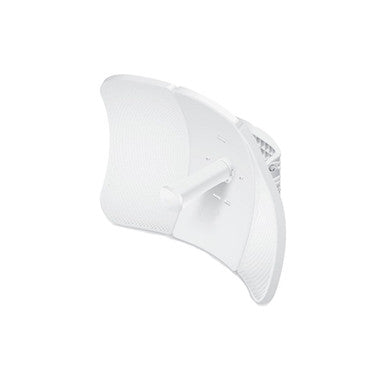

Ubiquiti LBE-5AC-LR-US 5GHz 26dBi airMAX AC CPE Long Range

Description

PRODUCT OVERVIEW

The LiteBeam 5AC Long Range is an affordable airMAX AC CPE designed for long-distance links. Reach new customers and still maintain your great ROI.

PRODUCT TYPE

Connectors and Adapters

KEY FEATURES

• Improved Radio Design
• Improved Mounting
• Improved Surge Protection
• Management WiFi Radio/UISP mobile app
• AirOS 8
• International version LBE-5AC-LR
• Dimensions 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17″)
• Weight 1.735 kg (3.825 lb)
• Networking Interface (1) 10/100/1000 Ethernet Port
• Antenna Gain 26 dBi
• Max. Power Output 25 dBm
• Max. Power Consumption 7W
• Power Supply 24V, 0.3A Gigabit PoE Adapter
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
• ESD/EMP Protection ± 24 kV Contact / Air
• Shock and Vibration ETSI300-019-1.4

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: LBE-5AC-LR-US
• Product Type: Networking Accessories
• Improved Radio Design
• Improved Mounting
• Improved Surge Protection
• Management WiFi Radio/UISP mobile app
• AirOS 8
• International version LBE-5AC-LR
• Dimensions 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17″)
• Weight 1.735 kg (3.825 lb)
• Networking Interface (1) 10/100/1000 Ethernet Port
• Antenna Gain 26 dBi
• Max. Power Output 25 dBm
• Max. Power Consumption 7W
• Power Supply 24V, 0.3A Gigabit PoE Adapter
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Operating Temperature -40 to 70° C (-40 to 158° F)
• Operating Humidity 5 to 95% Noncondensing
• ESD/EMP Protection ± 24 kV Contact / Air
• Shock and Vibration ETSI300-019-1.4
• Wind Survivability 200 km/h (125 mph)
• Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
• USA U-NII-1 – 5150-5250 MHz
• U-NII-2A – 5250-5350 MHz
• U-NII-2C – 5240-5725 MHz
• U-NII-3 – 5725-5850 MHz
• US/CA – 2412 – 2462 MHz

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
