Description

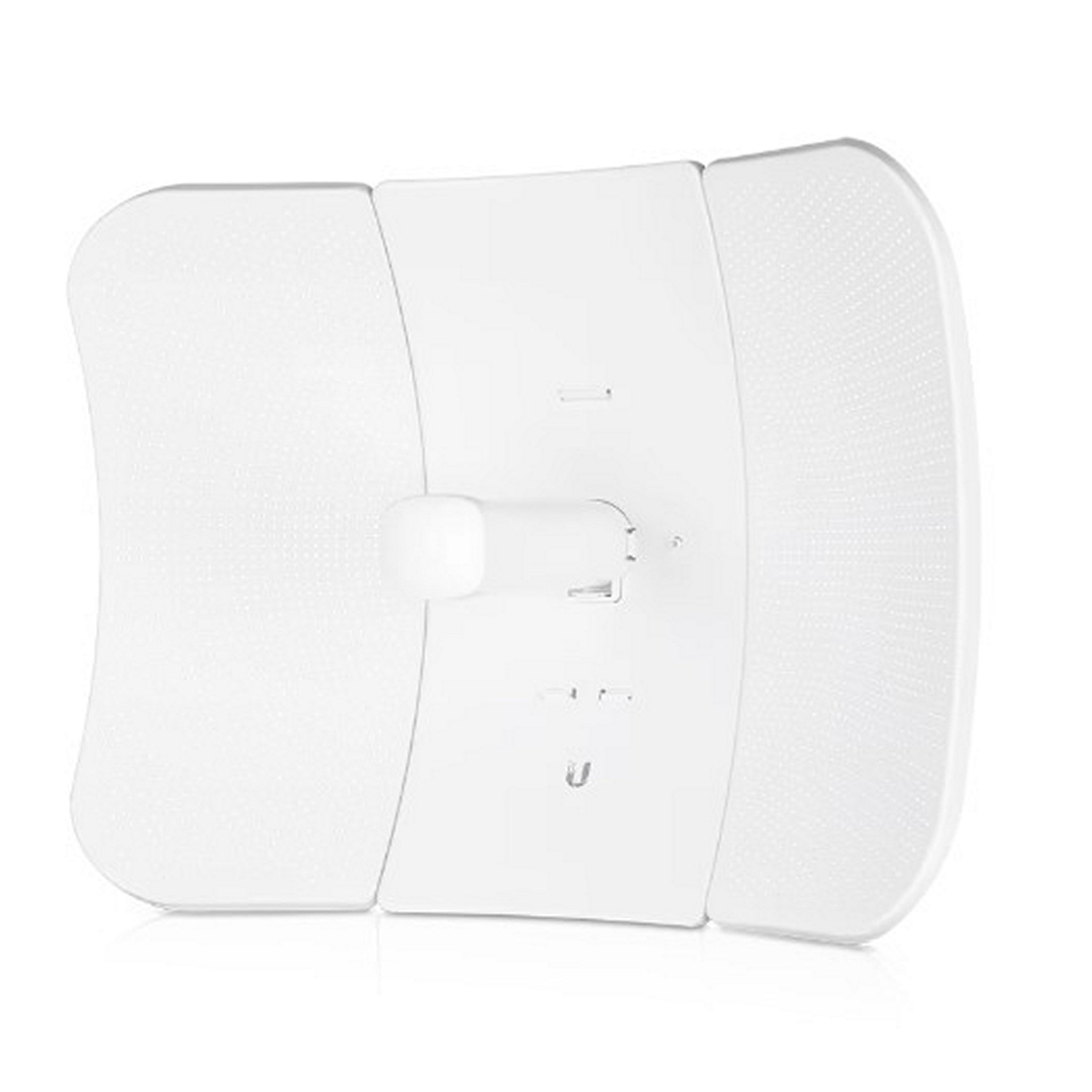

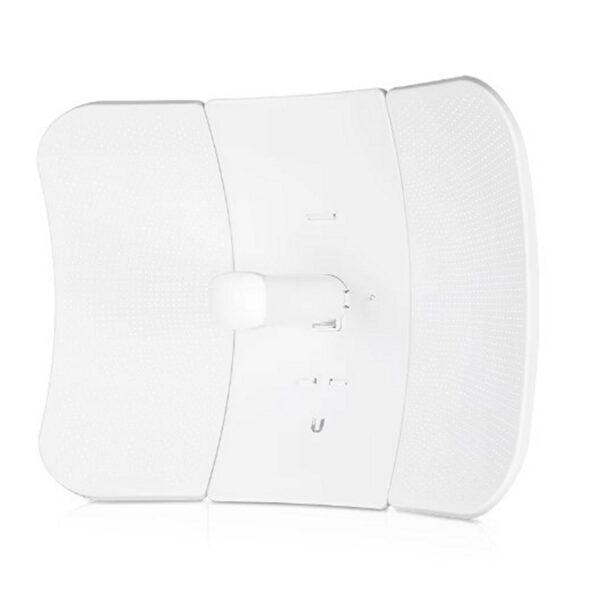

Ubiquiti LiteBeam 5AC LR Long-Range Wireless Radio (5-Pack)
The Ubiquiti LiteBeam 5AC LR is a high-performance, long-range outdoor wireless radio, perfect for point-to-point and point-to-multipoint installations. Designed for use in demanding environments, this 5-pack provides excellent power, reliability, and distance. Featuring 26 dBi gain and advanced airMAX technology, these units ensure superior connection stability even in harsh conditions.
Key Features
- Long-range, high-gain antenna with 26 dBi
- Durable aluminum and plastic enclosure for weather resistance
- Supports PtP and PtMP applications with multiple channel sizes
- Wind survivability up to 200 km/h (125 mph)
- Passive PoE for power and data over a single cable
Technical Specifications
Dimensions: 512 x 385.8 x 258.3 mm (20.2 x 15.2 x 10.2″)
Weight: Without mount: 1.4 kg (3 lb), With mount: 1.7 kg (3.8 lb)
Enclosure material: Aluminum, plastic
Mounting: Pole mount (Kit included)
Wind loading: 550 N at 200 km/h (123.6 lbf at 125 mph)
Wind survivability: 200 km/h (125 mph)
Networking interface: (1) GbE RJ45 port
Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
Power supply: 24V, 0.3A gigabit PoE adapter (Included)
Supported voltage range: 20-27V DC
Max. power consumption: 7W
Gain: 26 dBi
LEDs: Power, Ethernet
ESD/EMP protection: Air/contact ± 24kV
Channel sizes:
PtP mode: 10/20/30/40/50/60/80 MHz
PtMP mode: 10/20/30/40 MHz
Ambient operating temperature: -40 to 70° C (-40 to 158° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Operating Frequency (MHz):
Worldwide: 5150-5875 MHz
USA: U-NII-1 (5150-5250 MHz), U-NII-2A (5250-5350 MHz), U-NII-2C (5240-5725 MHz), U-NII-3 (5725-5850 MHz)
Management Radio (MHz): Worldwide: 2412 – 2472 MHz, US/CA: 2412 – 2462 MHz
