Ubiquiti LiteBeam 5AC XR Wireless Link Outdoor Use

Description

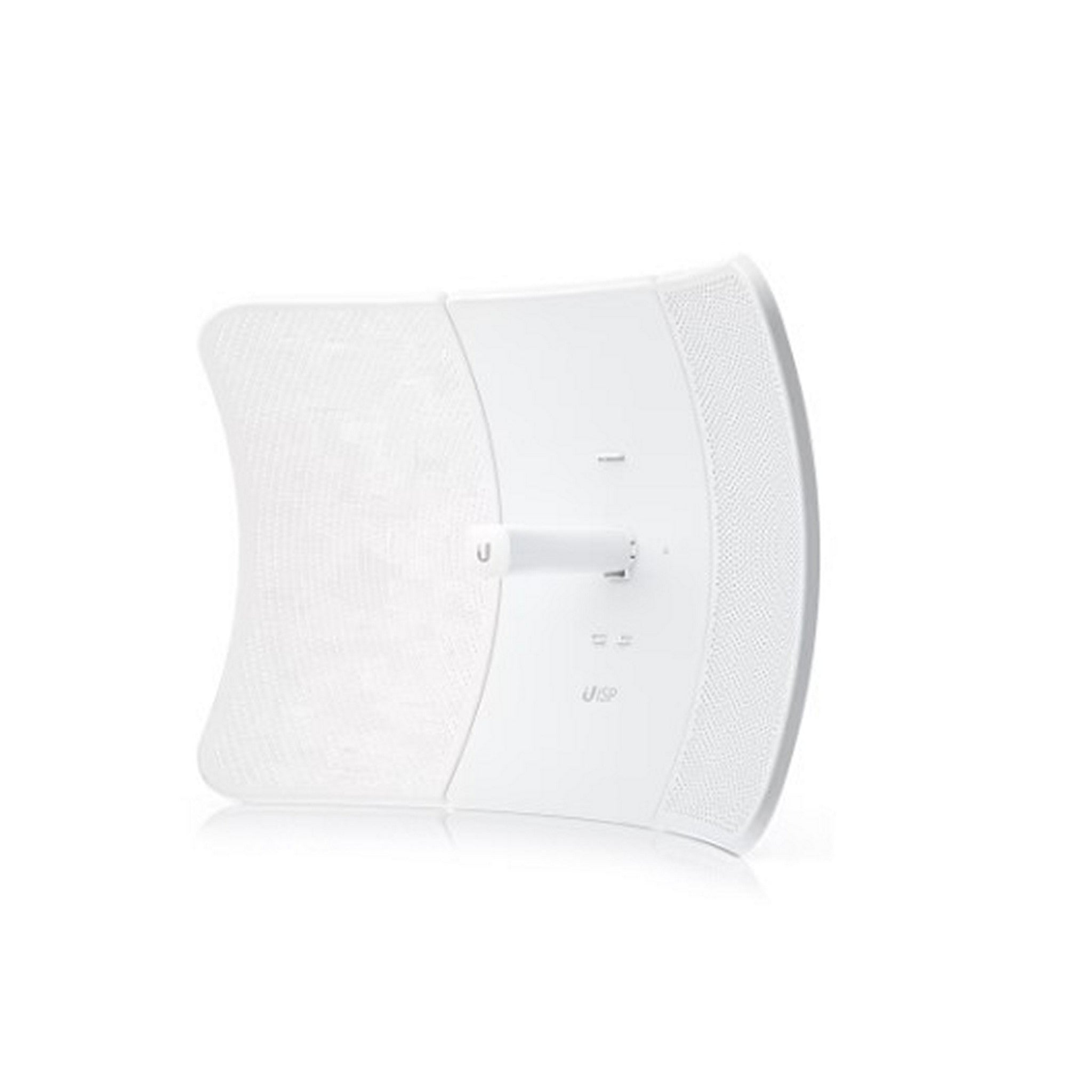

Ubiquiti LiteBeam 5AC XR Wireless Link

The Ubiquiti LiteBeam 5AC XR is a high-performance outdoor wireless link, designed for long-range, reliable Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) connections. Offering up to 450+ Mbps throughput, this lightweight and weather-resistant device provides superior range and stability, even in harsh weather conditions. With its easy-to-install design and robust capabilities, the LiteBeam 5AC XR is ideal for high-speed wireless links across long distances, making it a perfect solution for fixed wireless access and remote locations.

Key Features:

• Up to 450+ Mbps throughput
• Rugged design with IPX6 weatherproofing
• Easy installation with integrated pole mount
• Long-range, high-speed performance
• Supports PtP and PtMP modes for versatile deployments

Technical Specifications:

Dimensions: 747 x 525 x 347 mm (29.4 x 20.7 x 13.7″)
Weight: 3.2 kg (7.1 lb)
Enclosure material: Aluminum alloy, UV stabilized polycarbonate
Mount material: UV stabilized polycarbonate
Mounting: Integrated pole mount (included), Pole compatibility: Ø35 to 60 mm (Ø1.38 to 2.36″)
Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing: IPX6

Networking interface: (1) GbE RJ45 port
Power method: Passive PoE 2-pair (4, 5+; 7, 8- return)
Power supply: 24V DC, 0.5A gigabit PoE adapter (Included)
Supported voltage range: 22—27V DC
Max. power consumption: 7W
RF connections: Internal
LEDs: Power/ethernet
Button: Factory reset
Ambient operating temperature: -40 to 70° C (-40 to 158° F)
Ambient operating humidity: 5 to 95% non-condensing
Certifications: FCC, IC, CE

System
Maximum throughput: 450+ Mbps
Encryption: WPA2-PSK (AES)
Software
Modes: PtMP, PtP
Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities: airView®, speed test, alignment, discovery, ping, traceroute, constellation
Management interface: Dedicated management radio for quick device setup via the UISP™ Mobile app
WEB UI
Minimum software requirements: Modern Web browser or Android/iOS smartphone

RF
Operating frequency: 5.15 to 5.85 GHz (Depends on regulatory region)
Max. conducted TX power: 25 dBm
Management radio: 2400 – 2483.5 MHz
Channel bandwidth: 10/20/30/40/50/60/80 MHz
Antenna Gain: 29 dBi
Isolation: 20 dB
Beamwidth: HPOL: 3 dB: 5.5°, 6 dB: 7.5°
VPOL: 3 dB: 5.5°, 6 dB: 7.5°
Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt: 0°
