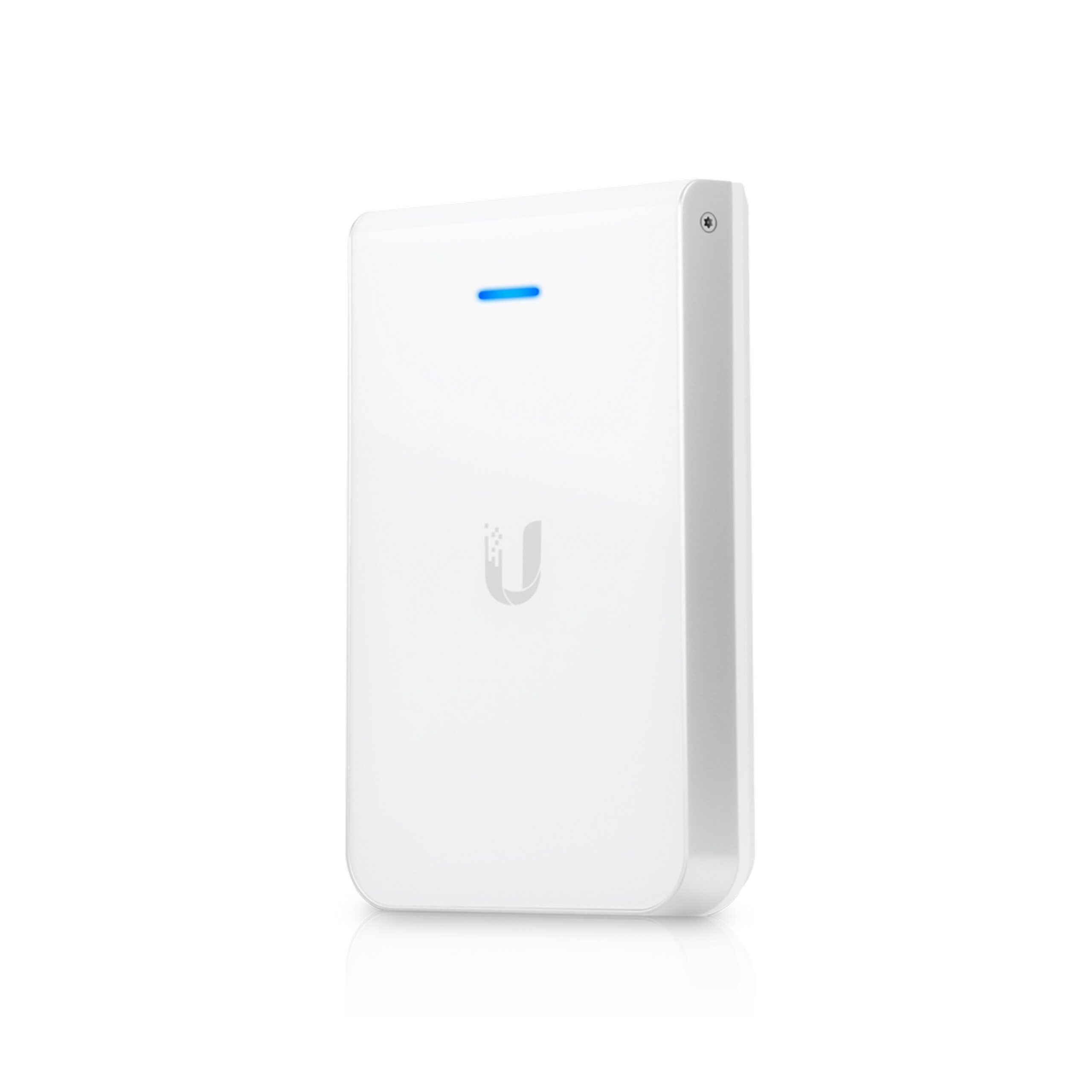

Ubiquiti Networks UAP-IW-HD-US UniFi In-Wall Wi-Fi Access Point 802.11AC Wave 2

$217.00

In stock

Spend & save Spend $149+, save up to $500 Applied automatically
Spend $149Save $50
Spend $399Save $100
Spend $799Save $200
Spend $1,299Save $300
Spend $1,999Save $500

Discount applied automatically in cart.

UBI-UAPIWHDUS Categories: , , , Tags: ,
SHARE

Description

Ubiquiti Networks UAP-IW-HD-US UniFi In-Wall Wi-Fi Access Point 802.11AC Wave 2

In-Wall 802.11ac Wave2 MU-MIMO Enterprise Access Point.

Key Features

  • 4×4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2×2 MIMO on 2.4GHz (300Mbps max PHY rate)
  • 802.3af for base functionality. 802.3at required if using PoE passthrough
  • 1×4 (1 in, 4 out) switched Gigabit Ethernet ports with configurable PoE passthrough (port 1 only)

Technical Specifications

Dimensions
139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01″)
Weight
210 g (7.41 oz)
Networking Interface
(5) 10/100/1000 Ethernet Ports
Buttons
Reset
Power Method
802.3af PoE
802.3at PoE+
Supported Voltage Range
44 to 57VDC
Power Supply
UniFi Switch (PoE)
PoE Out
48V Passthrough (Pins +1, 2; -3, 6)
Power Save
Supported
Beamforming
Supported
Maximum Power Consumption with PoE Passthrough
11W
23W (* Requires 802.3at PoE+ switch)
TX Power
2.4 GHz: 23 dBm
5 GHz: 26 dBm
Dual-Band Antennas
(2) Single-Port, Single-Polarity Dual-Band Antennas, 2.4 GHz: 1.8 dBi Each, 5 GHz: 3.4 dBi Each
Single-Band Antennas
(2) Single-Port, Dual-Polarity, Single-Band Antennas, 5 GHz: 6 dBi Each
Wi-Fi Standards
802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless Security
WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID
Up to 8 per Radio
Mounting
1-Gang Electrical Wall Box (Not Included)
Operating Temperature
-10 to 60 C (14 to 140 F)
Operating Humidity
5 to 95% Noncondensing
Certifications
CE, FCC, IC
ADVANCED TRAFFIC MANAGEMENT
VLAN: 802.1Q
Advanced QoS: Per-User Rate Limiting
Guest Traffic Isolation: Supported
WMM: Voice, Video, Best Effort, and Background
Concurrent Clients: 200+
SUPPORTED DATA RATES (MBPS)
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
