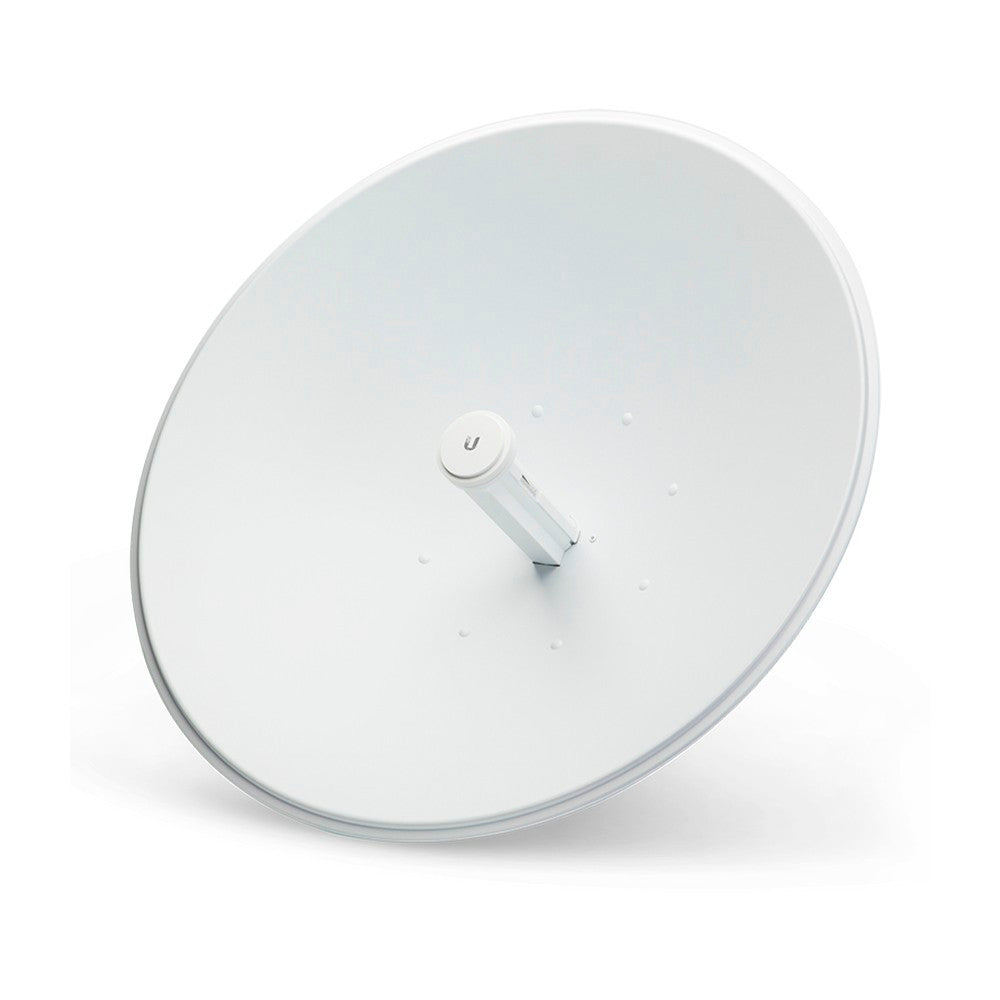

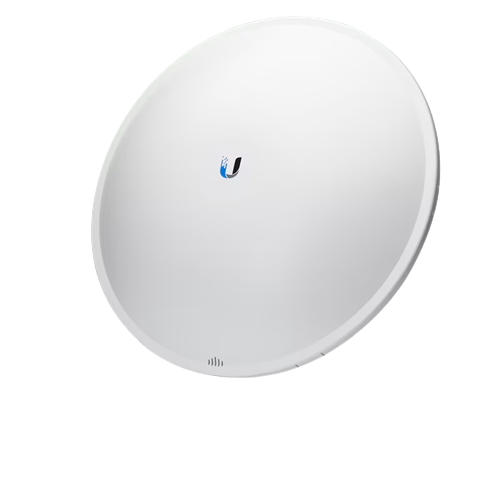

Ubiquiti PBE-5AC-500 5GHz Point-to-Point 450Mbps 25km Range

$167.49

In stock

Spend & save Spend $149+, save up to $500 Applied automatically
Spend $149Save $50
Spend $399Save $100
Spend $799Save $200
Spend $1,299Save $300
Spend $1,999Save $500

Discount applied automatically in cart.

PBE-5AC-500 Categories: , , , Tags: ,
SHARE

Description

PRODUCT OVERVIEW

5 GHz WiFi antenna with a 450+ Mbps Real TCP/IP throughput rate.

PRODUCT TYPE

Point-to-Point

KEY FEATURES

• Highly Efficient Antenna Beam Performance
• Custom Ubiquiti® airMAX® ac Processor
• Up to 450+ Mbps Real TCP/IP Throughput
• Innovative Snap and Lock Assembly
• Proprietary InnerFeed™ Technology
• 5 GHz, 25+ km link range
• 450+ Mbps throughput
• Improved mounting
• Dedicated spectral analysis radio
• Dedicated WiFi management radio
• Mechanical: Dimensions: Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1′)
• With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4′
• Weight: Without radome: 2.35 kg (5.2 lb)
• With radome: 3.2 kg (7 lb)
• Enclosure material: UV-stabilized plastic
• Mounting: Pole mount kit (Included)
• Wind loading: 264.6 N at 96 km/h (60 lbf at 60 mph)
• Wind survivability: 96 km/h (60 mph)

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: PBE-5AC-500
• Product Type: Point-to-Point
• Highly Efficient Antenna Beam Performance
• Custom Ubiquiti® airMAX® ac Processor
• Up to 450+ Mbps Real TCP/IP Throughput
• Innovative Snap and Lock Assembly
• Proprietary InnerFeed™ Technology
• 5 GHz, 25+ km link range
• 450+ Mbps throughput
• Improved mounting
• Dedicated spectral analysis radio
• Dedicated WiFi management radio
• Mechanical: Dimensions: Without radome: 520 x 520 x 308 mm (20.5 x 20.5 x 12.1′)
• With radome: 525 x 525 x 315 mm (20.7 x 20.7 x 12.4′
• Weight: Without radome: 2.35 kg (5.2 lb)
• With radome: 3.2 kg (7 lb)
• Enclosure material: UV-stabilized plastic
• Mounting: Pole mount kit (Included)
• Wind loading: 264.6 N at 96 km/h (60 lbf at 60 mph)
• Wind survivability: 96 km/h (60 mph)
• Hardware: Networking interface: (1) GbE RJ45 port
• Power method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Power supply: 24V, 0.5A gigabit PoE adapter (Included)
• Supported voltage range: 20-27V DC
• Max. power consumption: 8.5W
• ESD/EMP protection: Air/contact: ± 24 kV
• LEDs: (1) Power, (1) LAN, (4) WLAN
• Signal strength LEDs: Software-adjustable to correspond to custom RSSI levels
• Salt fog test: IEC 68-2-11 (ASTM B117)
• Equivalent: MIL-STD-810 G method 509.5
• Vibration test: IEC 68-2-6

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
