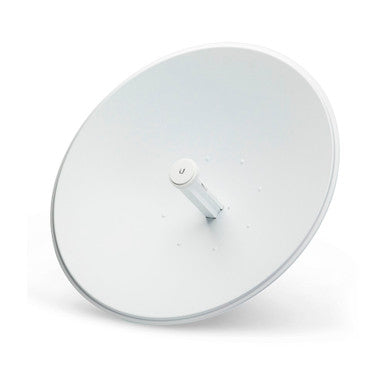

Ubiquiti PBE-M5-620 5GHz 29dBi airMAX Point-to-Point Bridge

Description

PRODUCT OVERVIEW

Long Distance Capable of high-speed, carrier-class links.

PRODUCT TYPE

Point-to-Point

KEY FEATURES

• The NanoBeam directs RF energy in a tighter beam width. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
• Providing increased performance from its faster processor and innovative mechanical design at a low cost, the NanoBeam is extremely versatile and cost-effective to deploy.
• Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
• This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class. Intelligent QoS Priority is given to voice/video for seamless streaming.
• Efficient footprint: The radio and antenna are combined into a single body that takes up minimal space.
• Versatile mounting: The NanoBeam can be mounted in almost any position needed for line of sight.
• Aesthetics: The NanoBeam is small enough to blend discreetly into the background at a customer’s location
• Uniform beam width improves noise immunity
• More efficient footprint
• Faster processor increases performance
• Easy assembly and installation
• US version PBE-M5-620 US
• Dimensions: 620 x 620 x 386 mm (24.41 x 24.41 x 15.2″)
• Weight: 6.4 kg (14.11 lb)
• Power Supply: 24V, 0.5A Gigabit PoE
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Max. Power Consumption: 8.5W
• Gain: 29 dBi

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: PBE-M5-620
• Product Type: Networking Accessories
• The NanoBeam directs RF energy in a tighter beam width. With the focus in one direction, the NanoBeam blocks or spatially filters out noise, so noise immunity is improved. This feature is especially important in an area crowded with other RF signals of the same or similar frequency.
• Providing increased performance from its faster processor and innovative mechanical design at a low cost, the NanoBeam is extremely versatile and cost-effective to deploy.
• Unlike standard Wi-Fi protocol, Ubiquiti’s Time Division Multiple Access (TDMA) airMAX protocol allows each client to send and receive data using pre-designated time slots scheduled by an intelligent AP controller.
• This “time slot” method eliminates hidden node collisions and maximizes airtime efficiency. It provides significant performance improvements in latency, throughput, and scalability compared to all other outdoor systems in its class. Intelligent QoS Priority is given to voice/video for seamless streaming.
• Efficient footprint: The radio and antenna are combined into a single body that takes up minimal space.
• Versatile mounting: The NanoBeam can be mounted in almost any position needed for line of sight.
• Aesthetics: The NanoBeam is small enough to blend discreetly into the background at a customer’s location
• Uniform beam width improves noise immunity
• More efficient footprint
• Faster processor increases performance
• Easy assembly and installation
• US version PBE-M5-620 US
• Dimensions: 620 x 620 x 386 mm (24.41 x 24.41 x 15.2″)
• Weight: 6.4 kg (14.11 lb)
• Power Supply: 24V, 0.5A Gigabit PoE
• Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Max. Power Consumption: 8.5W
• Gain: 29 dBi
• Wind Loading: 872 N@200 km/h (196 lbf @125 mph)
• Wind Survivability: 200 km/h (125 mph)
• LEDs: (1) Power, (1) LAN, (4) WLAN
• Signal Strength LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
• Channel Sizes: 5/8/10/20/30/40 MHz
• Polarization: Dual Linear
• Enclosure: Outdoor UV Stabilized Plastic
• Mounting: Pole-Mount Kit Included
• ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV
• Operating Temperature: -40 to 70° C (-40 to 158° F)
• Operating Humidity: 5 to 95% Noncondensing

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
