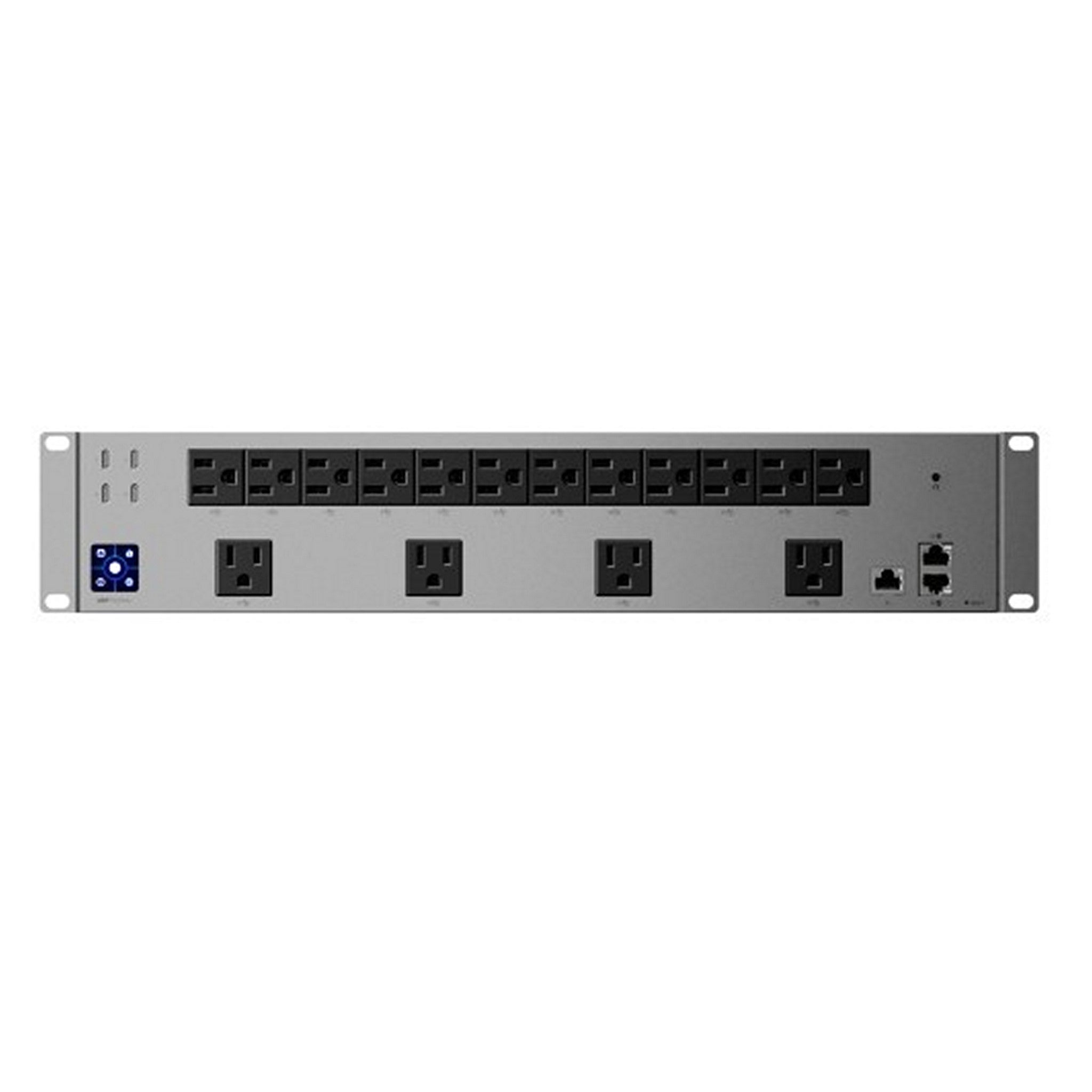

Ubiquiti Power Distribution Pro USP PDU Pro 16 Outlet Power Control

Description

Ubiquiti Power Distribution Pro USP-PDU-Pro – Advanced Rack Power Management

The Ubiquiti Power Distribution Pro (USP-PDU-Pro) offers reliable, efficient power management for rack-mounted devices. Equipped with 16 power control outlets and 4 USB-C ports, it ensures seamless power distribution. With a 1.3″ touchscreen for intuitive monitoring, this device supports network redundancy through Ethernet management interfaces and is designed to handle up to 1875W. Ideal for critical networking setups, the USP-PDU-Pro provides robust protection and control for your devices.

Key Features

• 16 power control outlets and 4 USB-C ports
• 1.3″ touchscreen display for easy management
• Supports 125V AC, 15A Max., 50/60 Hz
• Internal AC/DC power supply with 40W consumption
• Network redundancy through GbE RJ45 ports

Technical Specifications

Dimensions: 442.4 x 87.4 x 106 mm (17.4 x 3.4 x 4.2″)
Weight: 3.5 kg (7.6 lb) without mount, 3.7 kg (8.2 lb) with mount
Enclosure Material: SGCC steel

Networking Interface: (1) 100 MbE RJ45 port, (3) GbE RJ45 ports
Power Output: (16) Power control outlets, 125V AC, 15A Max., 50/60Hz (1875W Max. total)
USB-C Ports: (4) 2A Max. per port (4A/20W Max. total)
Power Method: 125V AC, 15A Max., 50/60 Hz
Power Supply: AC/DC internal, 40W
Max. Power Consumption: 1875W for 125V AC

Buttons: (1) Factory reset, (1) Circuit breaker
Display: (1) 1.3″ touchscreen LCM
Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
Ambient Operating Humidity: 10 to 90% noncondensing
Certifications: FCC, IC

Package Contents

• Ubiquiti Power Distribution Pro (USP-PDU-Pro)
• Rack Mounting Kit
• Power Cable
