Description
PRODUCT OVERVIEW

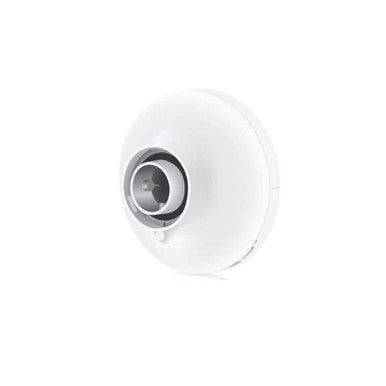

Featuring a die-cast aluminum base and interchangeable horn antenna*, the PrismStation 5AC directs RF energy in a tighter beamwidth. With the focus in one direction, the PrismStation 5AC blocks or spatially filters out noise, for improved noise immunity. This feature is important in crowded areas with other RF signals of the same or similar frequency.
PRODUCT TYPE
Networking Accessories
KEY FEATURES
• Removes up to an additional 30+ dB of adjacent channel interference
• Capable of high-speed, carrier-class links
• Dedicated WiFi management radio
• High capacity and scalability
• International version PS-5AC
• Dimensions: 174 x 174 x 184mm (6.85 x 6.85 x 7.24″) Without Horn Antenna: 155 x 155 x 104mm (5.16 x 5.16 x 4.09″)
• Mounting Hardware Only: 83 x 117 x 69mm (3.27 x 4.61 x 2.72″)
• Weight: 1.07kg (2.36lbs) Without Horn Antenna: 0.77kg (1.70lbs)
• Mounting Hardware Only: 0.79kg (1.74lbs)
• Networking Interface: (1) 10/100/1000 Ethernet Port
• RF Connector: (1) GPS
• LED: (1) Power
• Max. Power Consumption: 10W
• Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 20 to 26VDC
• Processor Specs: MIPS 74 Kc
• Memory: DDR2 128MB
TECHNICAL SPECIFICATIONS
• Brand: Ubiquiti
• Model: PS-5AC-US
• Product Type: Networking Accessories
• Removes up to an additional 30+ dB of adjacent channel interference
• Capable of high-speed, carrier-class links
• Dedicated WiFi management radio
• High capacity and scalability
• International version PS-5AC
• Dimensions: 174 x 174 x 184mm (6.85 x 6.85 x 7.24″) Without Horn Antenna: 155 x 155 x 104mm (5.16 x 5.16 x 4.09″)
• Mounting Hardware Only: 83 x 117 x 69mm (3.27 x 4.61 x 2.72″)
• Weight: 1.07kg (2.36lbs) Without Horn Antenna: 0.77kg (1.70lbs)
• Mounting Hardware Only: 0.79kg (1.74lbs)
• Networking Interface: (1) 10/100/1000 Ethernet Port
• RF Connector: (1) GPS
• LED: (1) Power
• Max. Power Consumption: 10W
• Power Supply: 24V, 1A Gigabit PoE Adapter (Included)
• Power Method: Passive PoE (Pairs 4,5+;7,8 Return)
• Supported Voltage Range: 20 to 26VDC
• Processor Specs: MIPS 74 Kc
• Memory: DDR2 128MB
• Max. VSWR: 2:1
• Polarization: Dual-Linear
• Wind Loading: 31N @ 200km/h (7lbf @ 125mph)
• Wind Survivability: 200km/h (125mph)
• Operating Temperature: -40 to 70°C (-40 to 158°F)
• Operating Humidity: 5 to 95% non-condensing
• Mounting: Pole-Mount (Kit Included)
• ESD/EMP Protection: ±24kV Contact/Air
• Certifications: FCC, IC, CE
• Operating Frequencies: 2412 – 2462MHz
• USA U-NII-1: 5150 – 5250MHz
INTENDED USE / APPLICATIONS
• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
