Description

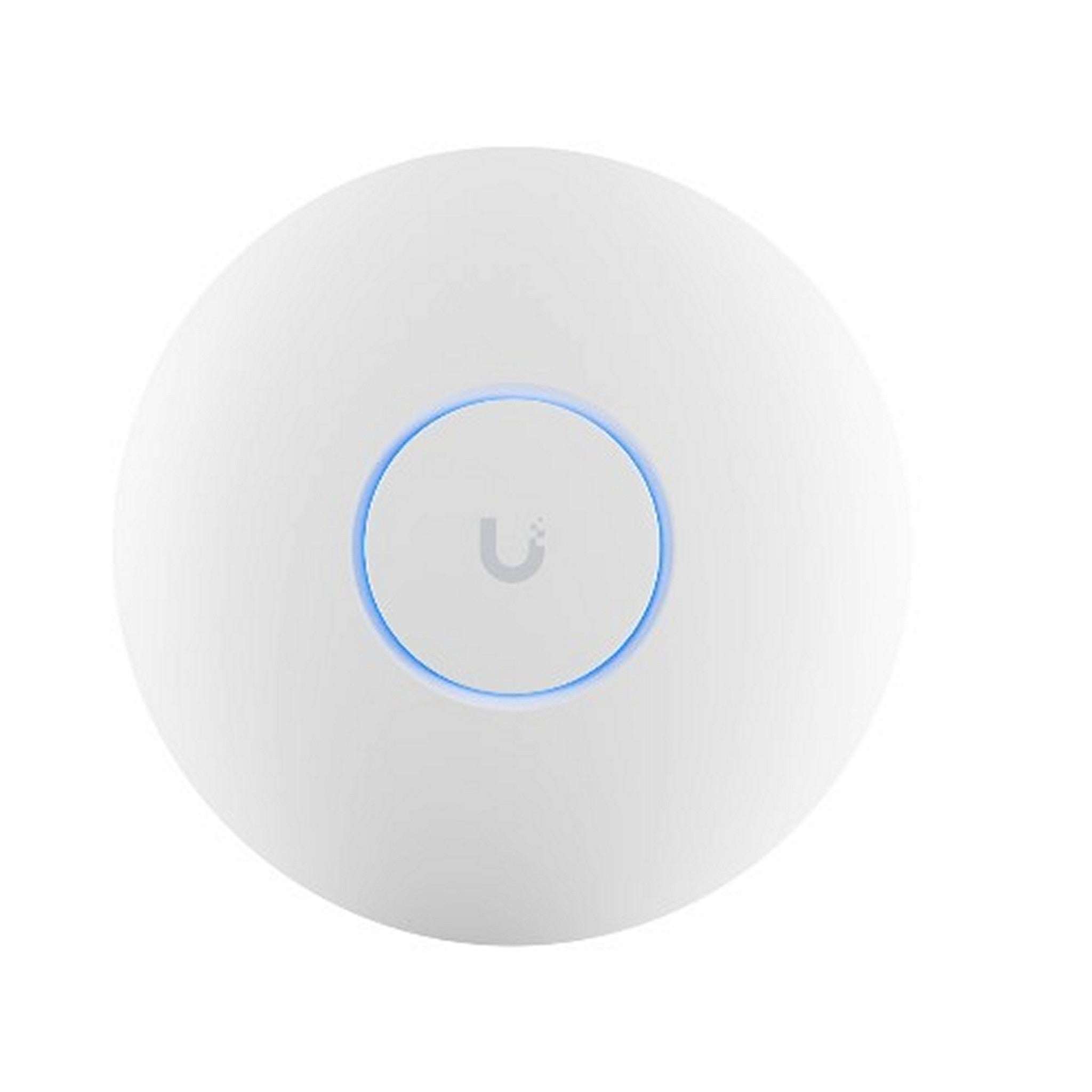

Ubiquiti UniFi U6 Pro Access Point – High-Performance WiFi 6
The Ubiquiti UniFi U6 Pro is a high-performance WiFi 6 (802.11ax) access point designed for powerful wireless connectivity in both small and large network environments. With its advanced 4×4 MU-MIMO and OFDMA technology, the U6 Pro delivers exceptional speeds and performance across multiple devices simultaneously, making it ideal for high-density areas. Its dual-band capabilities provide up to 5.3 Gbps combined throughput, ensuring fast, reliable connectivity for bandwidth-intensive applications like streaming, gaming, and VoIP.
Built for versatility, the UniFi U6 Pro is optimized for indoor deployments and integrates seamlessly with the UniFi Network Application. This centralized platform allows you to manage and monitor your entire network with ease. Supporting Power over Ethernet (PoE), the U6 Pro simplifies installation by reducing cable clutter and ensuring a clean, professional setup. Whether used in homes, offices, or enterprise networks, the U6 Pro delivers superior wireless performance and scalability.
Key Features:
- WiFi 6 (802.11ax) technology for faster, more efficient connectivity
- Dual-band operation with 2.4 GHz and 5 GHz bands
- 4×4 MU-MIMO and OFDMA for superior multi-device performance
- Up to 5.3 Gbps combined throughput
- Supports Power over Ethernet (PoE) for simplified installation
- Seamless integration with the UniFi Network Application
Technical Specifications:
Mechanical
Dimensions: Ø197 x 35 mm (Ø7.8 x 1.4″)
Weight: Without mount: 580 g (1.3 lb), With mount: 720 g (1.6 lb)
Enclosure material: Polycarbonate
Mount material: Stainless steel (SUS304)
Weatherproofing: IP54
Hardware
Networking interface: (1) GbE RJ45 port
Management interface: Ethernet, Bluetooth
Power method: PoE
Power supply: UniFi PoE switch, PoE adapter (Not included)
Supported voltage range: 44—57V DC
Max. power consumption: 13W
Max. TX power:
2.4 GHz: 22 dBm
5 GHz: 26 dBm
MIMO:
2.4 GHz: 2×2 (UL MU-MIMO)
5 GHz: 4×4 (DL/UL MU-MIMO)
Max. data rate:
2.4 GHz: 573.5 Mbps (BW40)
5 GHz: 4.8 Gbps (BW160)
Antenna gain:
2.4 GHz: 4 dBi
5 GHz: 6 dBi
LEDs: White/blue
Button: Factory reset
Mounting: Wall, ceiling (Included)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software
WiFi standards: 802.11a/b/g/n/ac/ax (WiFi 6)
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 350+
Zero wait DFS: Yes*
*Supported with upcoming firmware versions
Supported Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 600 Mbps (MCS0 – MCS31, HT 20/40)
802.11ac: 6.5 Mbps to 3.4 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 4.8 Gbps (MCS0 – MCS11 NSS1/2/3/4, HE 20/40/80/160)
Application Requirements
UniFi Network: Version 6.1.56 and later
Package Contents:
- U6 Pro Access Point
- Ceiling/Wall Mount Kit
- Quick Start Guide
