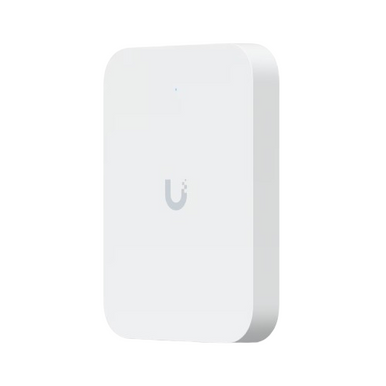

Ubiquiti U7-IW-US WiFi 7 In-Wall AP 4-Stream 2.5 GbE PoE Switch

Description

PRODUCT OVERVIEW

Ubiquiti U7-IW-US is a wall-mounted dual-band WiFi 7 access point with 4 spatial streams, 2.5 GbE connectivity, integrated PoE switching, 1,250 ft² coverage, and support for 200+ connected devices.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• WiFi 7 wireless access point
• Wall-mounted in-wall design
• Dual-radio 2.4 GHz and 5 GHz operation
• 4 spatial streams
• Coverage area up to 115 m² (1,250 ft²)
• Supports 200+ connected devices
• (3) 2.5 GbE RJ45 networking interfaces
• Integrated switch with (1) PoE+ input and (1) PoE output
• PoE or PoE+ power support
• PoE+ input required to provide single-port PoE output
• 5 GHz 2 x 2 DL/UL MU-MIMO
• 2.4 GHz 2 x 2 DL/UL MU-MIMO
• Maximum 5 GHz data rate of 4.3 Gbps with 240 MHz channel bandwidth
• Maximum 2.4 GHz data rate of 688 Mbps with 40 MHz channel bandwidth
• Wireless meshing and band steering
• 802.11r Fast Roaming
• 802.11k Radio Resource Management
• 802.11v BSS Transition Management
• Passpoint Hotspot 2.0
• Captive hotspot portal functionality
• Private Pre-Shared Key support
• Dynamic RADIUS-assigned VLAN
• RADIUS over TLS
• Client device and guest network isolation
• Metal wall mount included

TECHNICAL SPECIFICATIONS

• Manufacturer: Ubiquiti
• Model / Part Number: U7-IW-US
• Product: U7 In-Wall
• WiFi Standard: WiFi 7
• Spatial Streams: 4
• Frequency Bands: 2.4 GHz and 5 GHz
• Coverage Area: 115 m² (1,250 ft²)
• Maximum Client Count: 200+

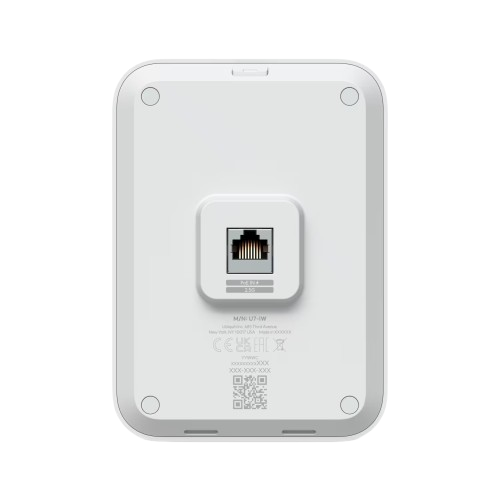

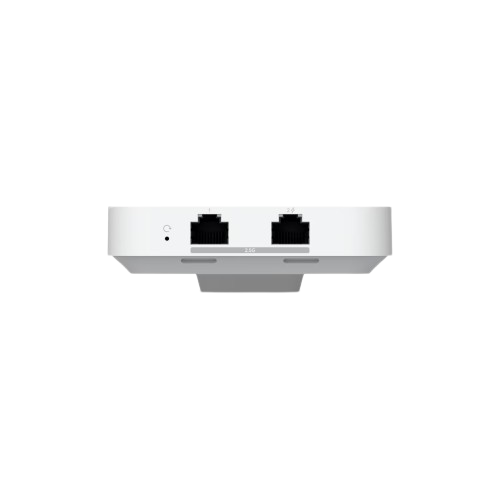

• Networking Interface: (3) 2.5 GbE RJ45 ports
• Uplink: 2.5 GbE
• Built-In Switch: (1) PoE+ input and (1) PoE output
• Power Method: PoE; PoE+ required for PoE output
• Supported Voltage Range: 42.5-57V DC
• Maximum Power Consumption: 13W excluding PoE output
• 5 GHz MIMO: 2 x 2 DL/UL MU-MIMO
• 2.4 GHz MIMO: 2 x 2 DL/UL MU-MIMO
• Maximum 5 GHz Data Rate: 4.3 Gbps (BW240)
• Maximum 2.4 GHz Data Rate: 688 Mbps (BW40)
• 5 GHz Antenna Gain: 8 dBi
• 2.4 GHz Antenna Gain: 4 dBi
• Maximum 5 GHz TX Power: 24 dBm
• Maximum 2.4 GHz TX Power: 23 dBm
• Maximum BSSIDs: 8 per radio
• Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 MHz
• Dimensions: 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2 in)
• Weight: 400 g (14.1 oz)
• Enclosure Material: Polycarbonate and aluminum alloy
• Mount Material: Aluminum alloy
• Mounting: Wall
• Management: Ethernet
• System LED: White/Blue
• Operating Temperature: -30°C to 40°C (-22°F to 104°F)
• Operating Humidity: 5% to 95% noncondensing
• Certifications: CE, FCC, IC
• UniFi Network Requirement: Version 9.0.114 or later
• UniFi iOS Application: Version 10.20.2 or later
• UniFi Android Application: Version 10.21.7 or later

INTENDED USE / APPLICATIONS

• Hospitality environments
• Wall-mounted indoor WiFi 7 deployments
• High-density wireless environments supporting 200+ connected devices
• Installations requiring integrated 2.5 GbE wired connectivity
• Deployments requiring a single PoE output when powered by PoE+
