Description

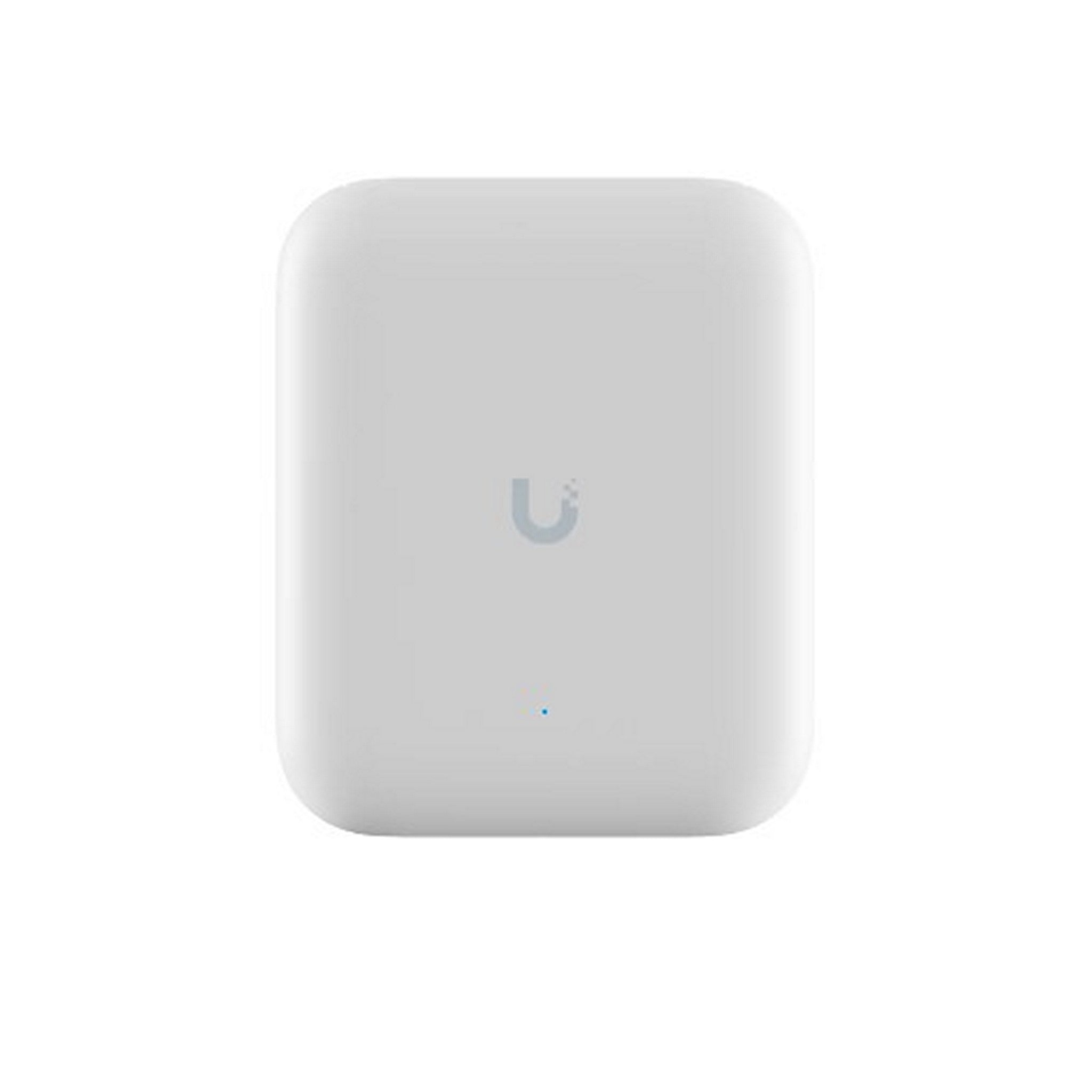

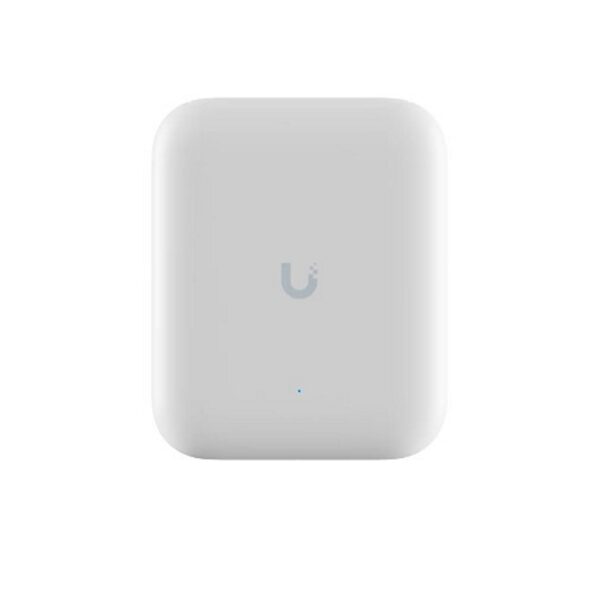

Ubiquiti U7 Outdoor WiFi 7 Access Point – High-Performance Coverage
The Ubiquiti U7 Outdoor is a top-tier WiFi 7 access point designed to provide exceptional coverage and performance for outdoor deployments. Equipped with advanced WiFi 7 technology, the U7 Outdoor features directional and external omni antennas, delivering up to 4.3 Gbps speeds over 5 GHz. Its rugged IPX6-rated weatherproof enclosure ensures reliable operation in harsh environments. Supporting over 200 concurrent devices, this access point is ideal for outdoor spaces requiring high-capacity, long-range connectivity.
Key Features:
- WiFi 7 support with up to 4.3 Gbps speed
- Integrated directional antenna and external omni antennas
- Weatherproof IPX6-rated enclosure for outdoor use
- Supports over 200 concurrent clients
- Powerful 2.5 GbE uplink for fast data transfer
- PoE+ powered for simplified installation
- Wall, ceiling, and pole mounting options included
Technical Specifications:
Mechanical:
Dimensions: 6.7 x 8.2 x 2.1 inches
Weight: 2.6 lb
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Polycarbonate, SGCC steel
Pole Mount Diameter: 1–2.36 inches
Wind Survivability: 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Weatherproofing: IPX6
Hardware:
Networking Interface: (1) 1/2.5 GbE RJ45 port
Management Interface: Ethernet
Power Method: PoE+
Power Supply: UniFi PoE Switch
Supported Voltage Range: 42.5—57V DC
Max. Power Consumption: 19W
Max. TX Power:
2.4 GHz: 23 dBm
5 GHz: 26 dBm
6 GHz: –
MIMO:
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
6 GHz: –
Max. Data Rate:
2.4 GHz: 688 Mbps (BW40)
5 GHz: 4.3 Gbps (BW240)
6 GHz: –
Antenna Gain:
2.4 GHz: Directional: 8 dBi / External Omni: 3 dBi
5 GHz: Directional: 12.5 dBi / External Omni: 4 dBi
6 GHz: –
Antenna Beamwidth:
2.4 GHz: 90°
5 GHz: 45°
6 GHz: –
Antennas:
(1) Directional internal antenna
(2) External omni antennas
(2) RP-SMA connectors for external antenna
LEDs: (1) Power (white/blue), (4) Mesh signal (blue)
Button: Factory reset
Mounting: Wall, ceiling, pole (Included)
Ambient Operating Temperature: -30 to 60° C (-22 to 140° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software:
WiFi Standards: 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest Traffic Isolation: Supported
Concurrent Clients: 200+
Supported Data Rates:
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: 6.5 Mbps to 300 Mbps (MCS0 – MCS15, HT 20/40)
802.11ac: 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 – MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 – MCS13 NSS1/2, EHT 20/40/80/160/240)
Application Requirements: UniFi Network Version 8.3 and later
Package Contents:
- U7 Outdoor Access Point
- Wall, ceiling, and pole mounting kit
