Description

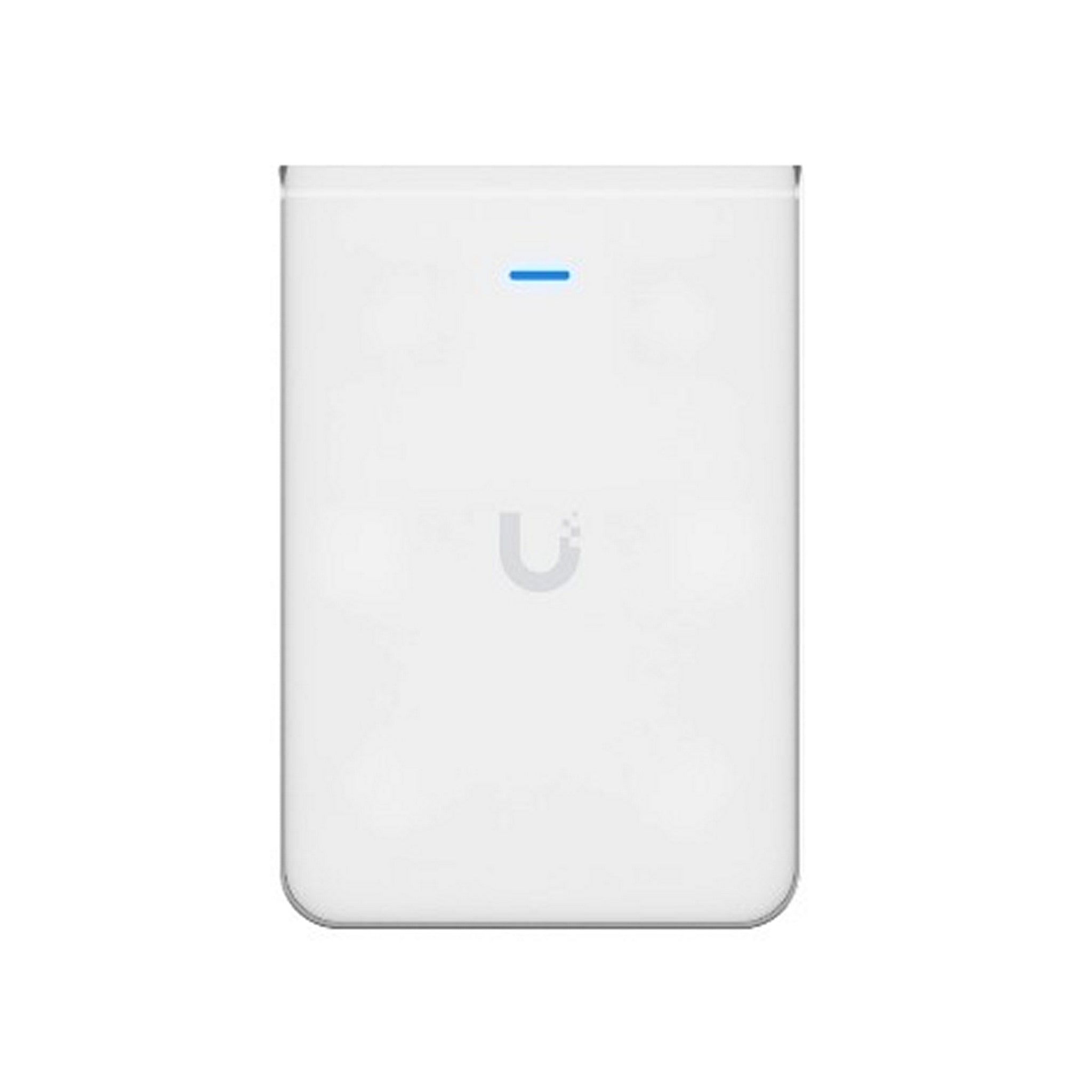

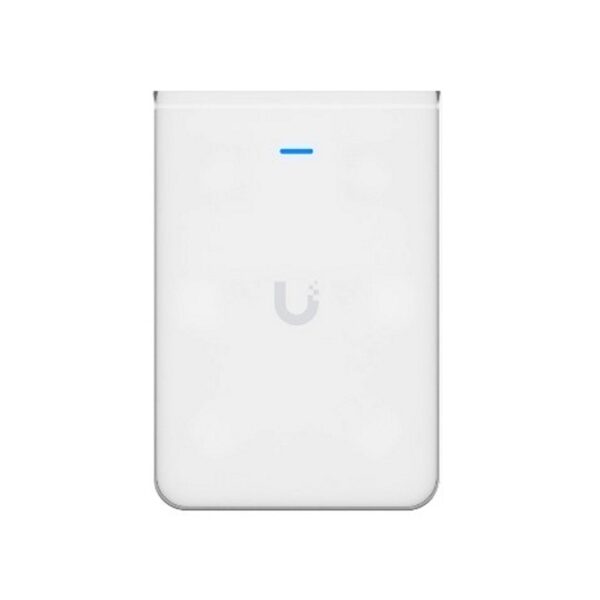

Ubiquiti U7 Pro Wall – High-Performance Wall-Mounted WiFi 7 Access Point
The Ubiquiti U7 Pro Wall is a cutting-edge, wall-mounted WiFi 7 access point designed for optimal wireless performance. Ideal for demanding environments, it offers broad coverage with support for 6 GHz, 5 GHz, and 2.4 GHz bands, alongside high-speed data transfer capabilities. With up to 6 spatial streams and the latest WiFi 7 technology, this access point ensures seamless connectivity across multiple devices. Its robust construction and mounting versatility make it perfect for both home and business environments, providing exceptional speed, stability, and scalability for modern networks.
Key Features
- WiFi 7 support with 6 GHz band for ultra-fast connectivity
- 6 spatial streams (2×2 MIMO for all bands)
- Maximum data rates: 5.7 Gbps on 6 GHz
- Powerful 2.5 GbE uplink for high-speed data transfer
- Wall-mountable design with optional accessories: flush mount and table stand
- Up to 300+ concurrent clients for large-scale connectivity
- Advanced security with WPA3 and VLAN support
Technical Specifications
Mechanical
Dimensions: 150 x 103 x 36 mm (5.9 x 4.1 x 1.4″)
Weight: 580 g (1.3 lb)
Enclosure material: Polycarbonate, aluminum
Mount material: Aluminum
Hardware
Networking interface: (1) 1/2.5 GbE RJ45 port
Management interface: Ethernet
Power method: PoE+
Power supply: UniFi PoE switch
Supported voltage range: 44—57V DC
Max. power consumption: 22W
Max. TX power
2.4 GHz: 22 dBm
5 GHz: 26 dBm
6 GHz: 23 dBm
MIMO
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 2 x 2 (DL/UL MU-MIMO)
6 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz: 688 Mbps (BW40)
5 GHz: 4.3 Gbps (BW240)
6 GHz: 5.7 Gbps (BW320)
Antenna gain
2.4 GHz: 4 dBi
5 GHz: 5 dBi
6 GHz: 6 dBi
LEDs: White/blue
Button: Factory reset
Mounting: Wall (Included), Table stand, flush mount (Optional)
Ambient operating temperature: -30 to 60° C (-22 to 140° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
Software
WiFi standards: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Wireless security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID: 8 per radio
VLAN: 802.1Q
Advanced QoS: Per-user rate limiting
Guest traffic isolation: Supported
Concurrent clients: 300+
Application Requirements
- UniFi Network Version 8.1 and later
- UniFi OS Version 3.2 and later
In The Box
- U7 Pro Wall Access Point
- Quick Start Guide
- Mounting Hardware
