Description
PRODUCT OVERVIEW

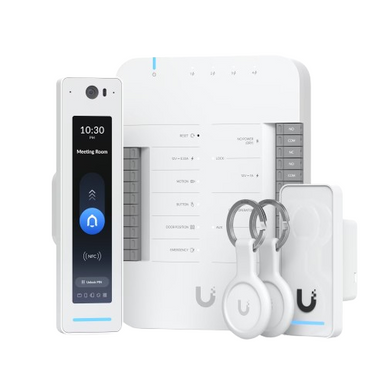

Starter kit that provides complete entry and exit control for a single door with two readers and Apple Touch Pass support.
PRODUCT TYPE
PoE & Power Injectors
KEY FEATURES
- PoE (out) for readers and camera
- Reset button
- 12V line output for accessories
- (4) inputs for push buttons, motion sensors, emergency alarm and door position sensors
- (2) Lock relays to support 12V-powered and dry options
- (2) AUX output relays to connect an external siren and automatic door opener
- Technical Specification:
- Overview: In the Box: (1) Door Hub
- (1) G3 Reader Pro
- (1) G3 Reader
- (2) Pocket Keyfobs
- Door Hub: Dimensions: 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3′)
- Supported Doors: 1
- Input Terminals: (2) Door exit request
- (1) Door position
- (1) Emergency
- Power Method: PoE++
- UL 294 Power-limited Class 2 PSU
TECHNICAL SPECIFICATIONS
- Brand: Ubiquiti
- Model: UA-G3-SK-Pro
- Product Type: Security Cameras
- PoE (out) for readers and camera
- Reset button
- 12V line output for accessories
- (4) inputs for push buttons, motion sensors, emergency alarm and door position sensors
- (2) Lock relays to support 12V-powered and dry options
- (2) AUX output relays to connect an external siren and automatic door opener
- Overview: In the Box: (1) Door Hub
- (1) G3 Reader Pro
- (1) G3 Reader
- (2) Pocket Keyfobs
- Door Hub: Dimensions: 174.9 x 126 x 32.9 mm (6.9 x 5 x 1.3′)
- Supported Doors: 1
- Input Terminals: (2) Door exit request
- (1) Door position
- (1) Emergency
- Power Method: PoE++
- UL 294 Power-limited Class 2 PSU
- UL 60950-1/62368-1 LPS/PS2 PSU
- Weight: 363 g (12.8 oz)
- Enclosure Material: Polycarbonate
- Mount Material: Polycarbonate
- Mounting: DIN-rail (Included)
- Ambient Operating Temperature: 0 to 40° C (32 to 104° F)
- Ambient Operating Humidity: 5 to 95% noncondensing
- Networking Interface: (5) 10/100/1000 Base-T
- PoE Interface: (1) PoE++ input, 50V DC, 1A
- (4) PoE outputs, 50V DC, 15.4W per port (Max. 28W aggregated)
- Max. Power Consumption: 30W (Without PoE output)
- 50W (With PoE output)
INTENDED USE / APPLICATIONS
- Video surveillance and security monitoring
- Commercial, institutional, or industrial installations
- Integration with compatible network and recording systems
