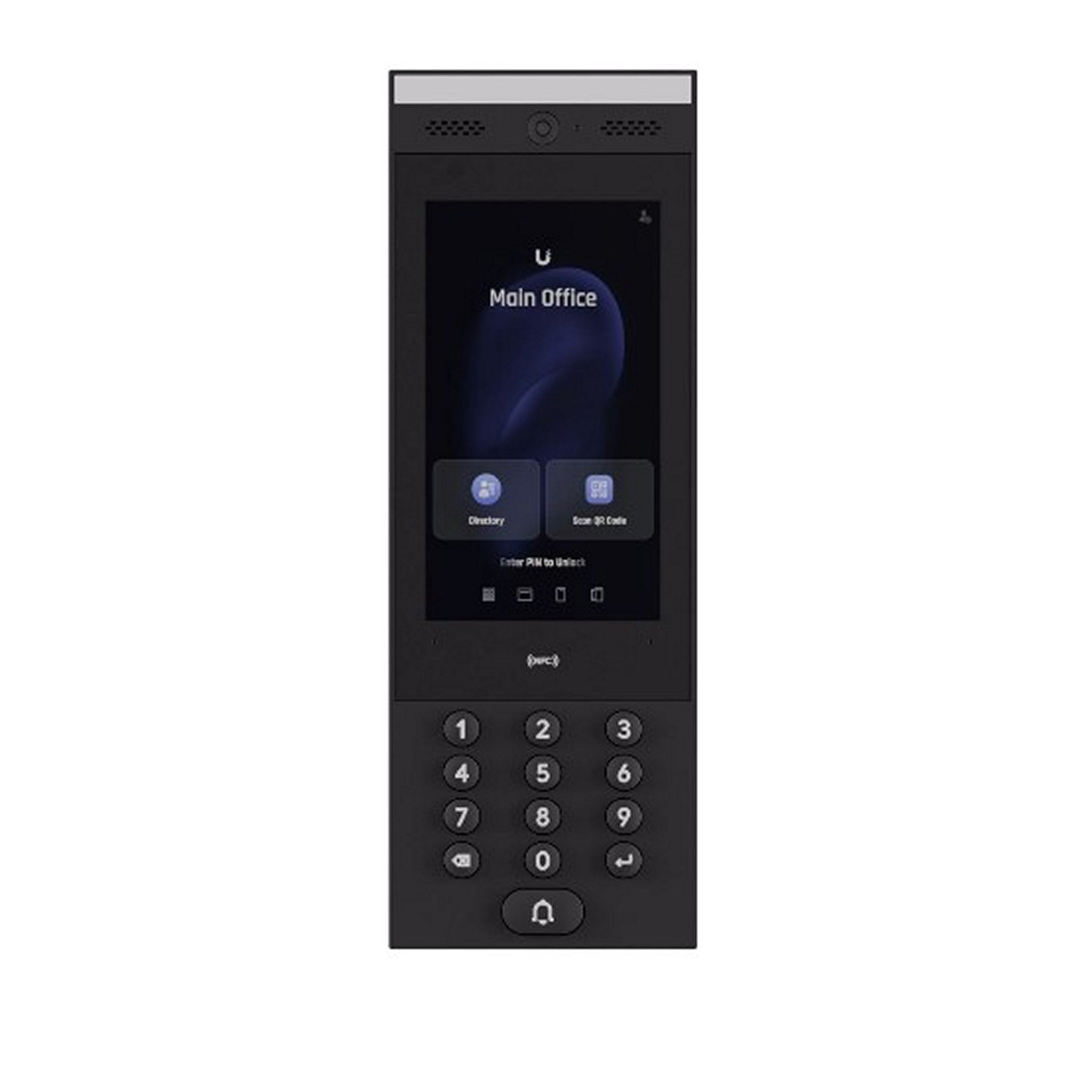

Ubiquiti UA-Intercom Access Control Outdoor System

Description

Ubiquiti UA-Intercom Access Control System

The Ubiquiti UA-Intercom provides a versatile and secure entry management system, offering NFC, Bluetooth, and PIN code-based unlocking. It supports up to 13W power consumption via PoE, ensuring easy setup. Built with a weatherproof design, it’s perfect for outdoor use in harsh environments. The 7″ capacitive multi-touch display with a high resolution ensures clear communication, while the integrated camera offers wide-angle visibility. This intercom system integrates seamlessly with UniFi Access for a complete entry solution, providing both security and convenience.

Key Features:

• Supports multiple unlocking methods: NFC, Bluetooth, and PIN code.
• Weatherproof with an IP65 rating for outdoor use.
• 7″ capacitive touch display with 1024 x 600 resolution.
• Camera with a 118.2° diagonal field of view.
• PoE powered for simple installation.

Technical Specifications:

Dimensions: 324.8 x 113.7 x 28.3 mm (12.8 x 4.5 x 1.1″)
Weight: Device: 965 g (2.1 lb), Bracket: 445 g (1 lb)
Enclosure Material: Aluminum alloy, UV-stabilized polycarbonate, glass
Mount Material: Powder-coated stainless steel
Mounting: Wall mount, adapter to gooseneck pedestal (included), surface angle mount, flush mount (optional), sunshield kit (optional)
Weatherproofing: IP65
Networking Interface: (1) GbE RJ45 port
Connectivity: Bluetooth 4.2, NFC
Power Method: PoE (48V DC)
Max Power Consumption: 13W
ESD/EMP Protection: Air: ±15kV, contact: ±8kV
Sensors: Proximity sensor, ALS sensor
Camera View Angle: H: 79.4°, V: 97.5°, D: 118.2°
Display: 177 mm (7″) diagonal, 1024 x 600 resolution, max. 1000 nits luminance, capacitive multi-touch
Microphone: Yes
Speaker: (1) 4 ohm, 2W
NFC Frequency: 13.56 MHz, read range < 30 mm
NFC Technology: ISO/IEC 14443A/B, MIFARE Classic/Desfire, Sony FeliCa™
Ambient Operating Temperature: Device: -30 to 60° C (-22 to 140° F), Display: -25 to 60° C (-13 to 140° F)
Operating Environment: Outdoor use
Operating Humidity: 5 to 90% noncondensing
Certifications: CE, FCC, IC, UL 294, CAN/ULC-60839-11-1
Management Application: UniFi Access: Version 1.22.17 and later
