Description

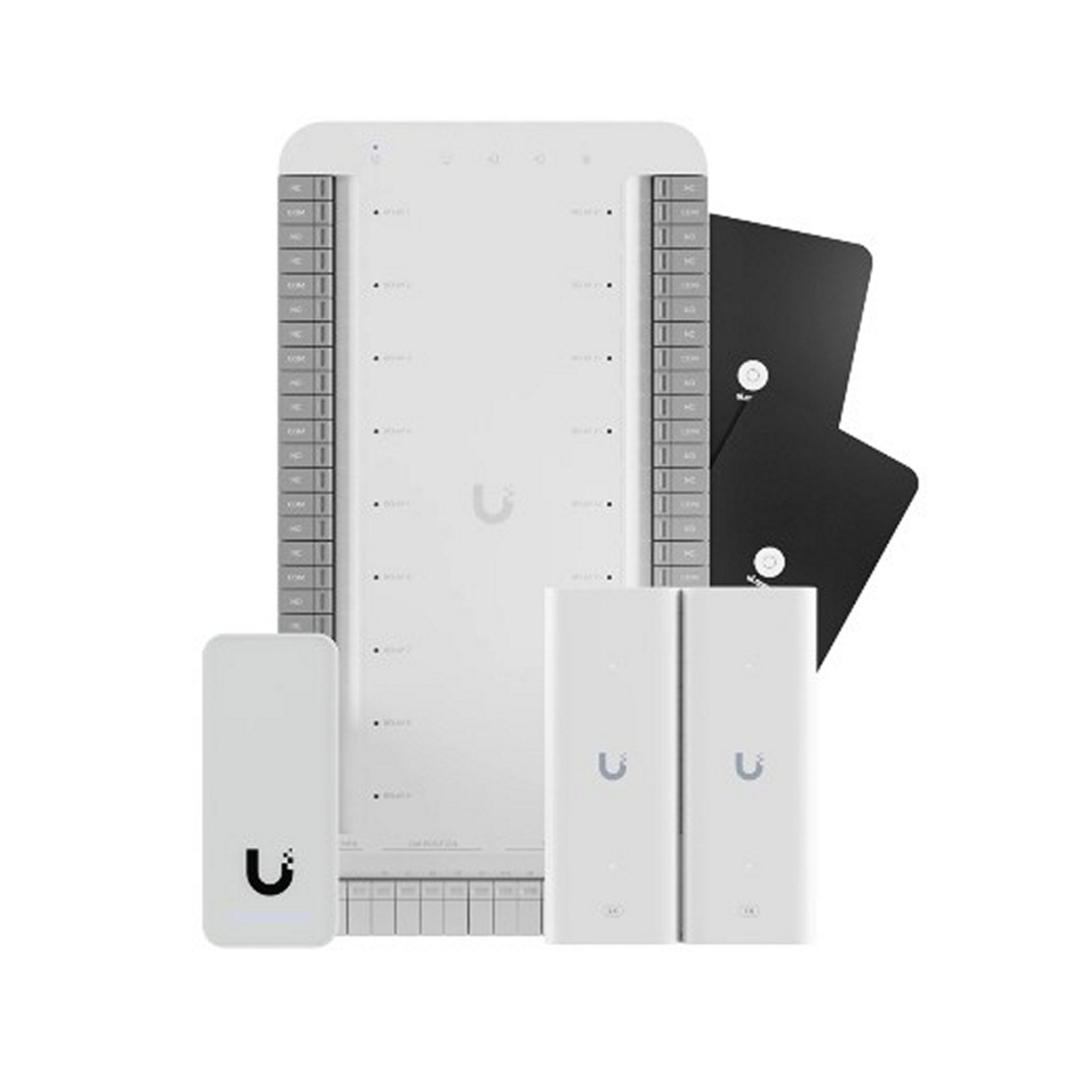

Ubiquiti UA-SK-Elevator Access Elevator Starter Kit
The Ubiquiti UA-SK-Elevator Access Elevator Starter Kit is a comprehensive solution for secure, PoE-powered elevator access. This system supports up to 18 floors, integrates digital inputs for elevator car status, and provides emergency signaling functionality. Ideal for both new installations and upgrades, it ensures reliable performance for controlling access to multiple floors, enhancing both security and user convenience.
Key Features:
- Supports up to 18 floors with elevator car status inputs.
- PoE-powered for easy installation and reduced wiring complexity.
- Digital input for elevator car controls and emergency signals.
- Comprehensive kit with all necessary components for setup.
Technical Specifications:
UA-Hub-Elevator:
Dimensions: 129.3 x 244.7 x 33.6 mm (5.1 x 9.6 x 1.3″)
Weight: 537 g (1.2 lb)
Enclosure material: Polycarbonate
Mounting material: Polycarbonate
Networking interface: (5) 10/100/1000 Base-T
Power method: PoE++
Max. power consumption: 7W (without PoE output)
PoE input: (1) PoE++, 50 VDC, 1.2A
PoE output: (4) PoE, 50VDC, total 45W
Buttons: (1) Factory-reset
Outputs: (18) Relays, 30VDC/2A rating
LEDs: System (white/blue/red), Output relays (white)
Digital input: Up/down/stop/full/door open/door close/(5) car position, (1) Emergency
Ambient operating temperature: -10 to 40° C (14 to 104° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
UA-Extender:
Dimensions: 40 x 105 x 25 mm (1.6 x 4.1 x 1″)
Weight: PoE in: 77 g (2.7 oz), PoE out: 79 g (2.8 oz)
Networking interface: (1) 10/100 MbE, (1) Homeplug AV
Power method: PoE++
Max. power consumption: 3W (without PoE output)
PoE input: (1) PoE++, 50VDC, 1.2A
PoE output: (1) PoE+, 48VDC, 0.6A
LED: White
Ambient operating temperature: -10 to 40° C (14 to 104° F)
Ambient operating humidity: 5 to 95% noncondensing
Certifications: CE, FCC, IC
UA-Reader Lite:
Dimensions: 94.9 x 40 x 31.1 mm (3.74 x 1.57 x 1.22″)
Weight: 67 g (2.36 oz)
Enclosure material: Polycarbonate
Mounting options: Wall-mount
IP rating: IP54
Networking interface: 10/100 MbE
Power method: PoE
Supported voltage range: 44 to 57VDC
Max. power consumption: 6W
Buttons: (1) Factory-reset
LEDs: White/blue
Connectivity: Ethernet, BLE 4.1
NFC frequency: 13.56 MHz
Ambient operating temperature: -40 to 40° C (-40 to 104° F)
Ambient operating humidity: 5 to 90% noncondensing
Certifications: CE, FCC, IC
UA-Card:
Dimensions: 85.6 x 54 x 0.8 mm (3.37 x 2.13 x 0.03″)
Weight: 5 g (0.18 oz)
Format: ISO 7810 ID-1
NFC frequency: 13.56 MHz
NFC technology: ISO/IEC 14443 Type A, MIFARE DESFire
UniFi Access Proprietary Security Protocol
Management application: UniFi Access Version 1.4.5 and later
Package Contents:
- Elevator Hub
- G2 Reader
- 2-wire PoE Extenders (x2)
- Access Cards (x10)
