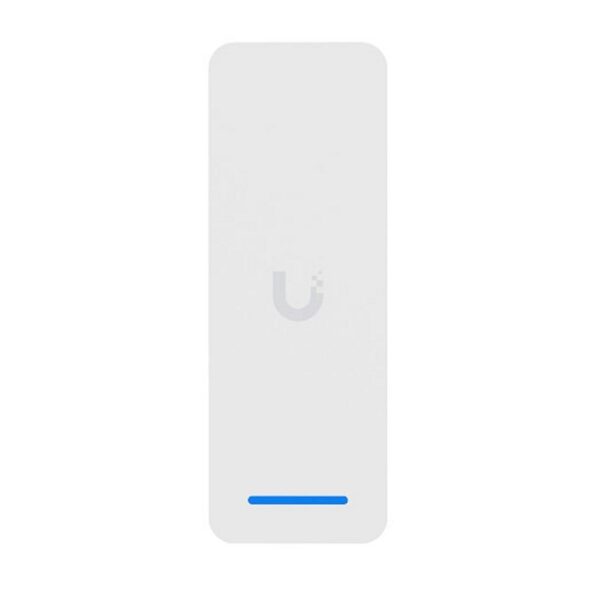

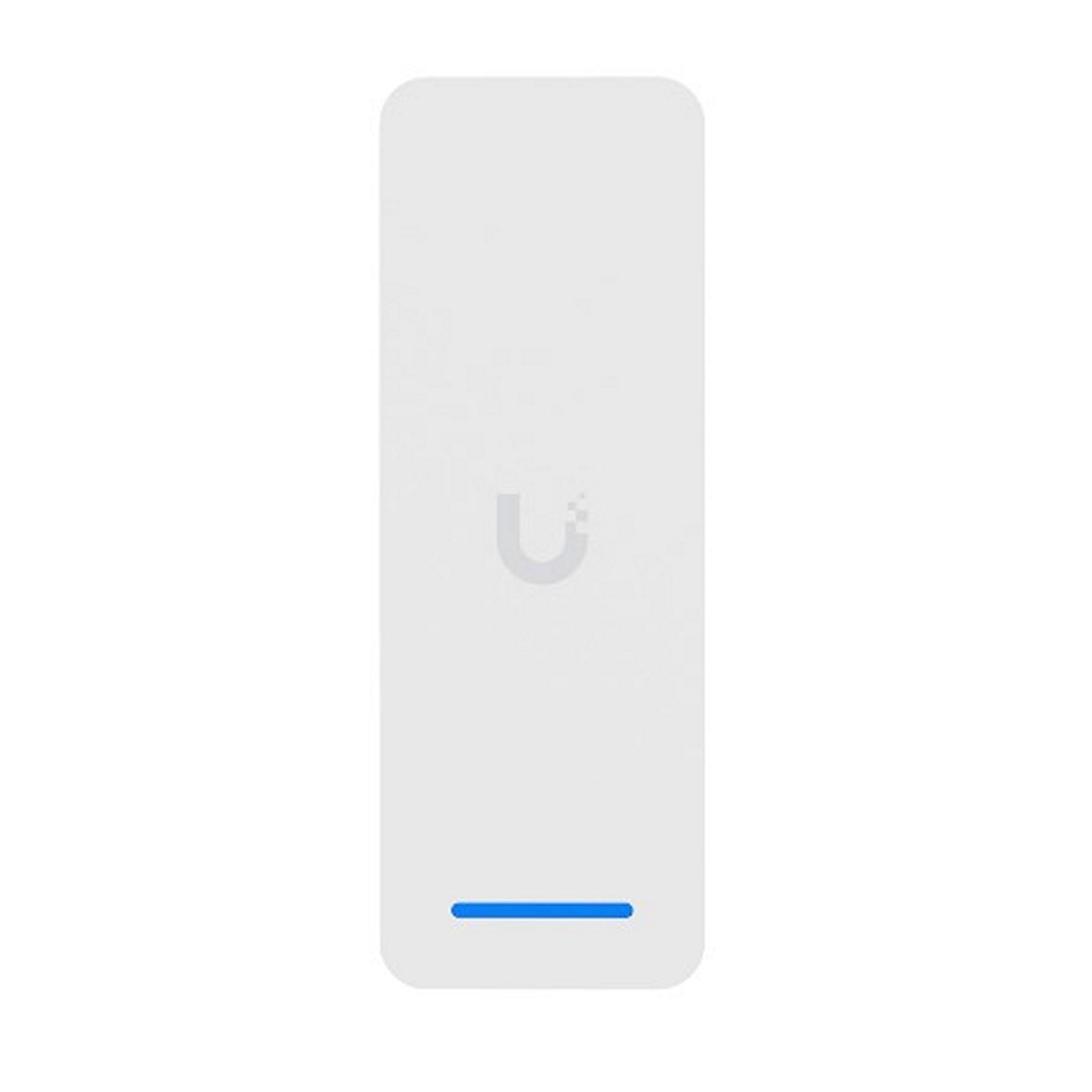

The Ubiquiti UA-Ultra Access Reader is a powerful, weatherproof access control device featuring a built-in hub for seamless integration with existing systems. Designed for reliable outdoor use, it supports PoE+ for easy installation and connects via Ethernet or BLE 4.2. The reader supports NFC technology for secure access and integrates digital inputs, making it ideal for controlling doors or entryways. With tamper protection, a buzzer, and multiple lock terminals, this unit is perfect for modern security environments.
Key Features:
Built-in hub for easy integration with access control systems
Weatherproof design with an IP55 rating
Supports NFC, BLE 4.2, and mobile app access
Includes tamper switch, buzzer, and exit request input
Technical Specifications:
Dimensions: 126 x 45 x 37.45 mm (4.9 x 1.8 x 4.5″) Weight: 140 g (4.9 oz) Enclosure material: Polycarbonate, aluminum alloy Mounting: Wall mount, gang box mount Weatherproofing: IP55 Networking interface: 10/100 MbE RJ45 port Connectivity: Ethernet, BLE 4.2 Digital input: (1) Exit request Lock terminals: (1) 12V DC, 1A Power method: PoE+ Max. power consumption: 18W ESD/EMP protection: Air: ±8kV, contact: ±4kV LEDs: R/G/B/W Button: (1) Factory reset Tamper switch: Yes Speaker: Buzzer NFC frequency: 13.56 MHz NFC read range: < 50 mm NFC standards: ISO 14443A, 14443B, 15693 NFC technology: MIFARE Classic, MIFARE Plus, MIFARE Ultralight, MIFARE DESFire Ambient operating temperature: -30 to 40° C (-22 to 104° F) Ambient operating humidity: 5 to 90% noncondensing Certifications: CE, FCC, IC
Package Contents:
UA-Ultra Access Reader
Quick Start Guide
