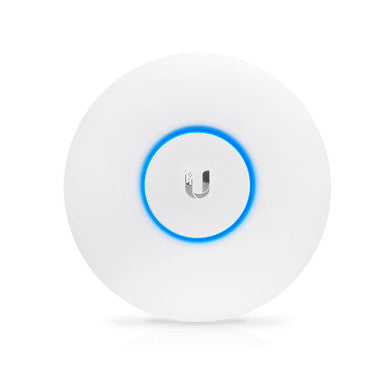

Ubiquiti UAP-AC-SHD 802.11ac Wave 2 Wireless Access Point PoE+

Description

PRODUCT OVERVIEW

Four-stream, 802.11ac Wave 2 access point with a dedicated network security radio.

PRODUCT TYPE

Wireless Access Points

KEY FEATURES

• 802.11ac Wave 2 WiFi technology
• 5 GHz (4×4 MU-MIMO) band with a 1.7 Gbps throughput rate
• 2.4 GHz (4×4 MIMO) band with a 800 Mbps throughput rate
• Dedicated security radio for persistent network threat management
• Powered with PoE+
• (2) GbE RJ45 ports
• (1) USB port
• US version UAP-AC-SHD-US
• Networking Interface (2) 10/100/1000 Ethernet Ports
• Ports (2) Ethernet RJ45
• (1) USB Type C
• Radios 2.4 GHz, 5 GHz, Security
• Max. Power Consumption 20W
• Supported Voltage Range 44 – 57VDC
• Power Method PoE+
• Power Supply UniFi Switch
• Button Reset
• Antennas 2.4 GHz – (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: UAP-AC-SHD
• Product Type: Wireless Access Points
• 802.11ac Wave 2 WiFi technology
• 5 GHz (4×4 MU-MIMO) band with a 1.7 Gbps throughput rate
• 2.4 GHz (4×4 MIMO) band with a 800 Mbps throughput rate
• Dedicated security radio for persistent network threat management
• Powered with PoE+
• (2) GbE RJ45 ports
• (1) USB port
• US version UAP-AC-SHD-US
• Networking Interface (2) 10/100/1000 Ethernet Ports
• Ports (2) Ethernet RJ45
• (1) USB Type C
• Radios 2.4 GHz, 5 GHz, Security
• Max. Power Consumption 20W
• Supported Voltage Range 44 – 57VDC
• Power Method PoE+
• Power Supply UniFi Switch
• Button Reset
• Antennas 2.4 GHz – (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each
• 5 GHz – (2) Dual-Port, Dual-Polarity Antennas, 6 dBi each
• Max. TX Power 2.4 GHz – 6-25 dBm
• 5 GHz – 6-25 dBm
• MIMO 2.4 GHz – 4 x 4
• 5 GHz – 4 x 4
• Speeds 2.4 GHz – 800 Mbps
• 5 GHz – 1.7 Gbps
• Mounting Wall/Ceiling (Kits Included)

INTENDED USE / APPLICATIONS

• Outdoor or indoor wireless networking, as specified
• Point-to-point or point-to-multipoint deployments where compatible
• Professional network installations
