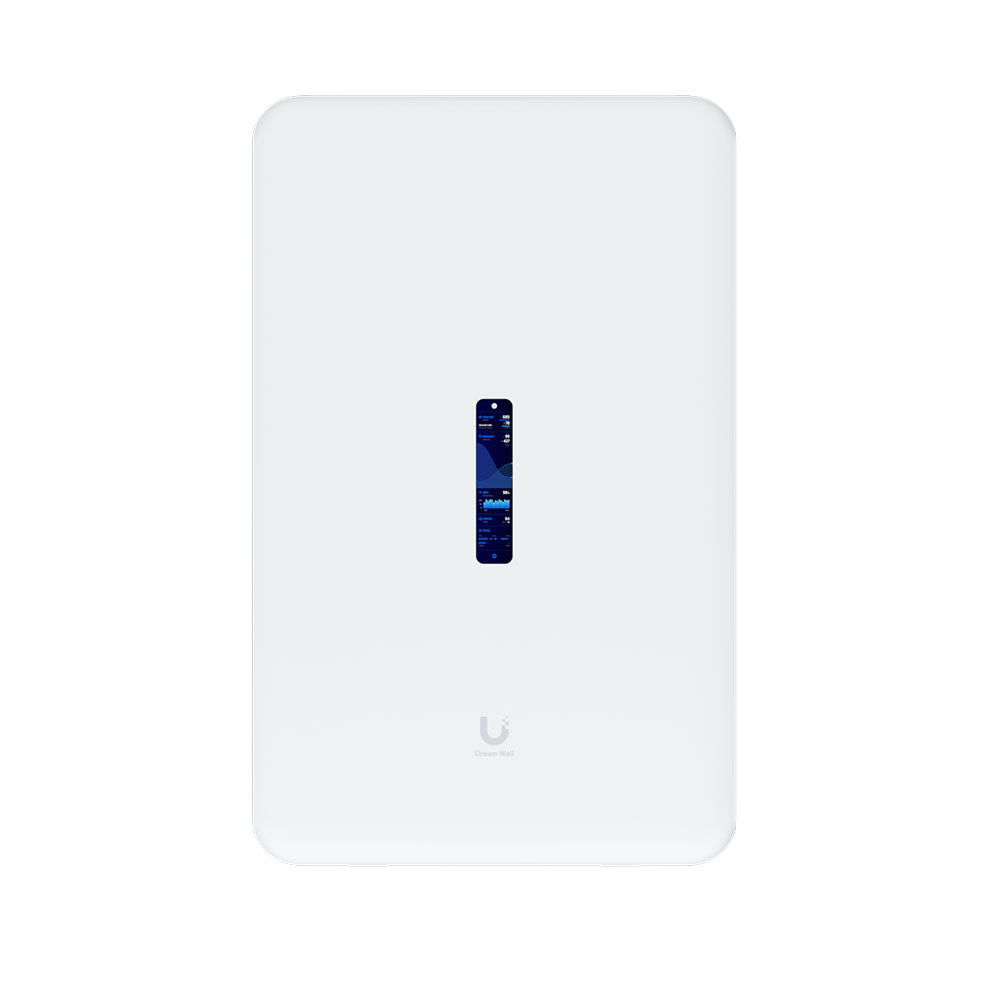

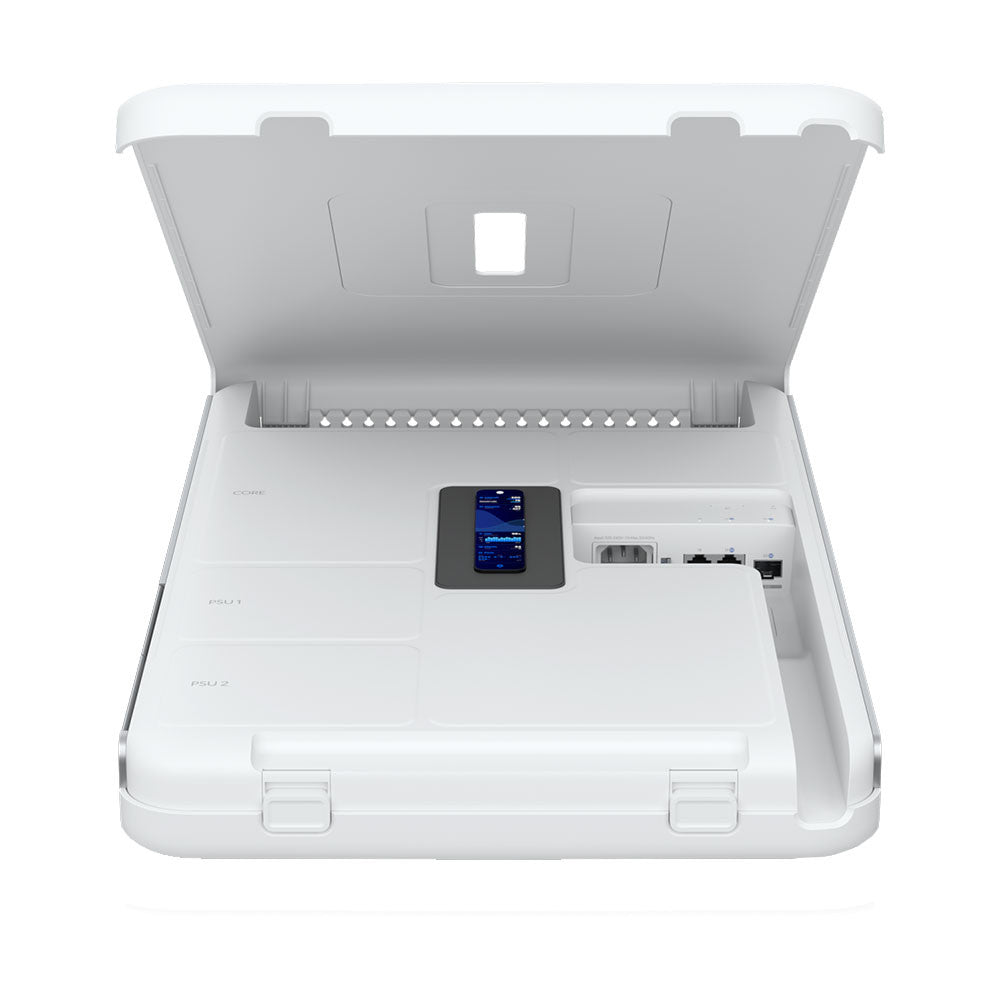

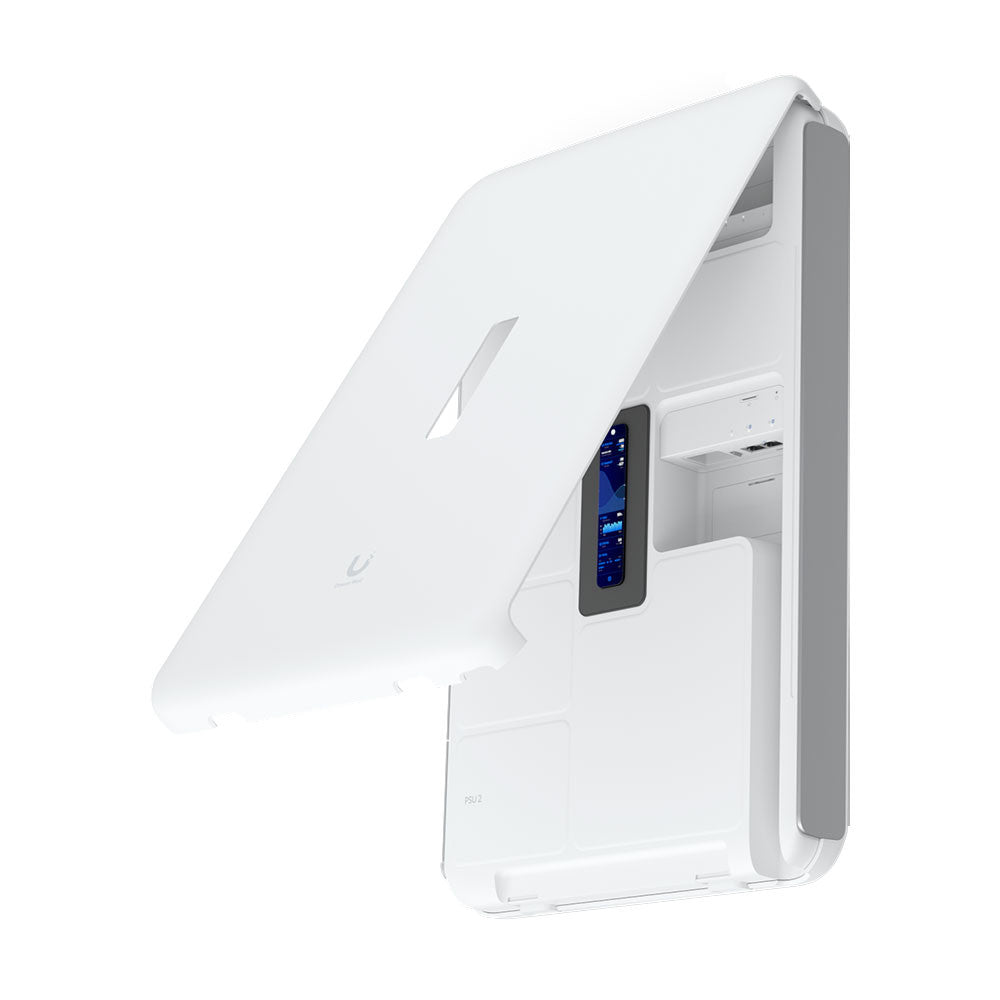

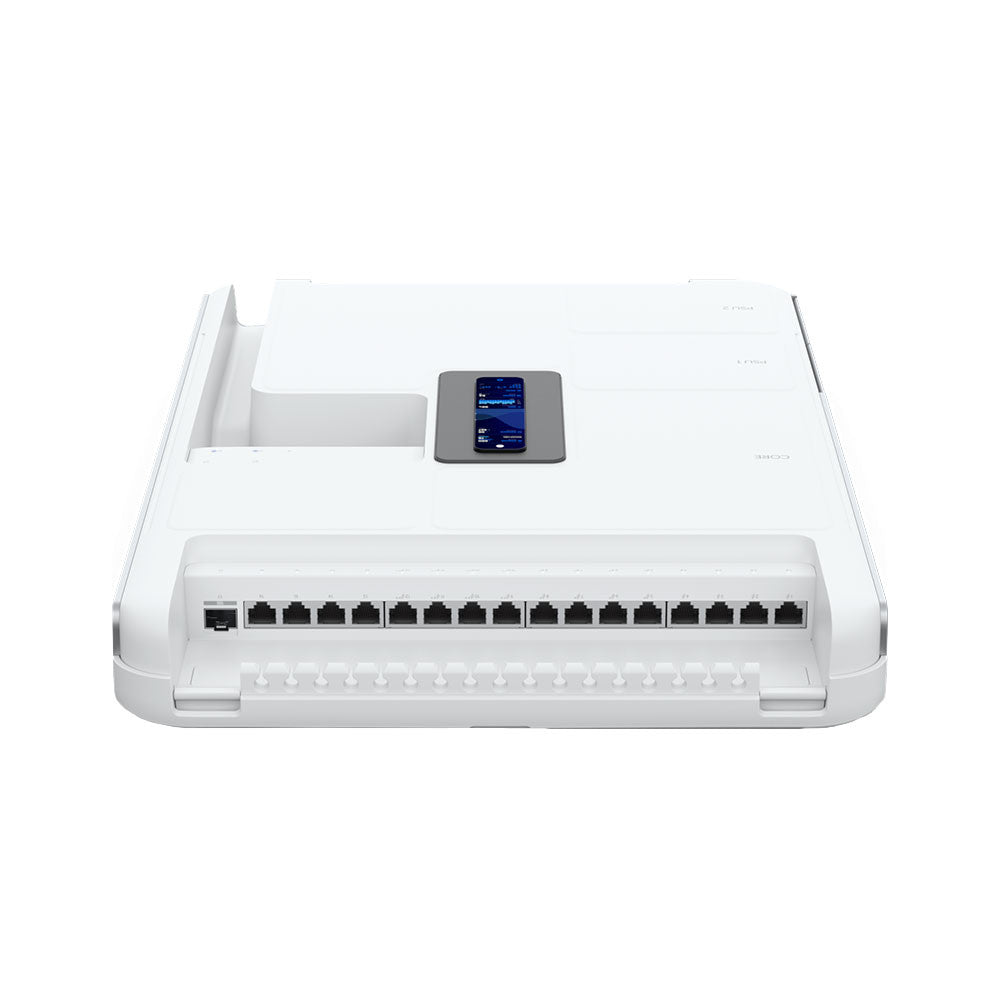

Ubiquiti UDW-US Dream Wall WiFi 6 PoE++ Cloud Gateway Router

$1,122.47

In stock

Spend & save Spend $149+, save up to $500 Applied automatically
Spend $149Save $50
Spend $399Save $100
Spend $799Save $200
Spend $1,299Save $300
Spend $1,999Save $500

Discount applied automatically in cart.

Categories: , , , Tags: , ,
SHARE

Description

PRODUCT OVERVIEW

The Ubiquiti Dream Wall (UDW-US) is a wall-mountable UniFi Cloud Gateway that integrates high-performance routing, WiFi 6 capabilities, PoE switching, and support for all UniFi applications. It is designed for enterprise environments requiring robust networking solutions with advanced connectivity and security features.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• WiFi 6 Access Point : Enterprise-grade 4×4 MIMO for superior performance.
• Full UniFi OS : Manages all UniFi applications, including networking, security, and IoT devices.
• High-Speed Networking : (1) 10G SFP+ WAN and LAN ports.
• (17) GbE RJ45 LAN ports, including: (4) PoE++ ports (60W max per port).
• (4) PoE+ ports (30W max per port).
• (4) PoE ports (15.4W max per port).
• (1) 2.5 GbE RJ45 WAN port.
• Advanced Touchscreen Management : A 4.7′ LCM touchscreen for intuitive configuration and monitoring.
• Storage : Integrated 128 GB SSD.
• Pre-installed 512 GB microSD card with expansion capabilities.
• Robust Power : Supports 532W max power consumption.
• Dual hot-swappable AC/DC 550W power supplies.
• Enterprise Environments : High-performance networking for offices or campuses.
• Smart Home Hubs : Streamlined management for connected devices.
• Data Centers : Reliable switching and routing with PoE++ support.
• Accessories SFP+ Module
• SFP+ to RJ45 Adapter
• International version UDW

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: UDW-US
• Product Type: Routers and Switches
• WiFi 6 Access Point : Enterprise-grade 4×4 MIMO for superior performance.
• Full UniFi OS : Manages all UniFi applications, including networking, security, and IoT devices.
• High-Speed Networking : (1) 10G SFP+ WAN and LAN ports.
• (17) GbE RJ45 LAN ports, including: (4) PoE++ ports (60W max per port).
• (4) PoE+ ports (30W max per port).
• (4) PoE ports (15.4W max per port).
• (1) 2.5 GbE RJ45 WAN port.
• Advanced Touchscreen Management : A 4.7′ LCM touchscreen for intuitive configuration and monitoring.
• Storage : Integrated 128 GB SSD.
• Pre-installed 512 GB microSD card with expansion capabilities.
• Robust Power : Supports 532W max power consumption.
• Dual hot-swappable AC/DC 550W power supplies.
• Enterprise Environments : High-performance networking for offices or campuses.
• Smart Home Hubs : Streamlined management for connected devices.
• Data Centers : Reliable switching and routing with PoE++ support.
• Accessories SFP+ Module
• SFP+ to RJ45 Adapter
• International version UDW
• Mechanical : Dimensions : 549 x 342 x 62 mm (21.6 x 13.5 x 2.4′).
• Weight : 8.6 kg (19 lbs).
• Materials : Polycarbonate, galvanized steel, and aluminum alloy.
• Mounting : Wall mount included.
• Hardware : Processor: Quad-core ARM Cortex-A57 at 1.7 GHz.
• System Memory: 4 GB DDR4.
• Networking Interfaces: (17) GbE RJ45 LAN ports.
• (1) 10G SFP+ LAN and WAN ports.
• (1) 2.5GbE RJ45 WAN port.
• WiFi Throughput: 2.4 GHz: 300 Mbps.
• 5 GHz: 2.4 Gbps.

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
