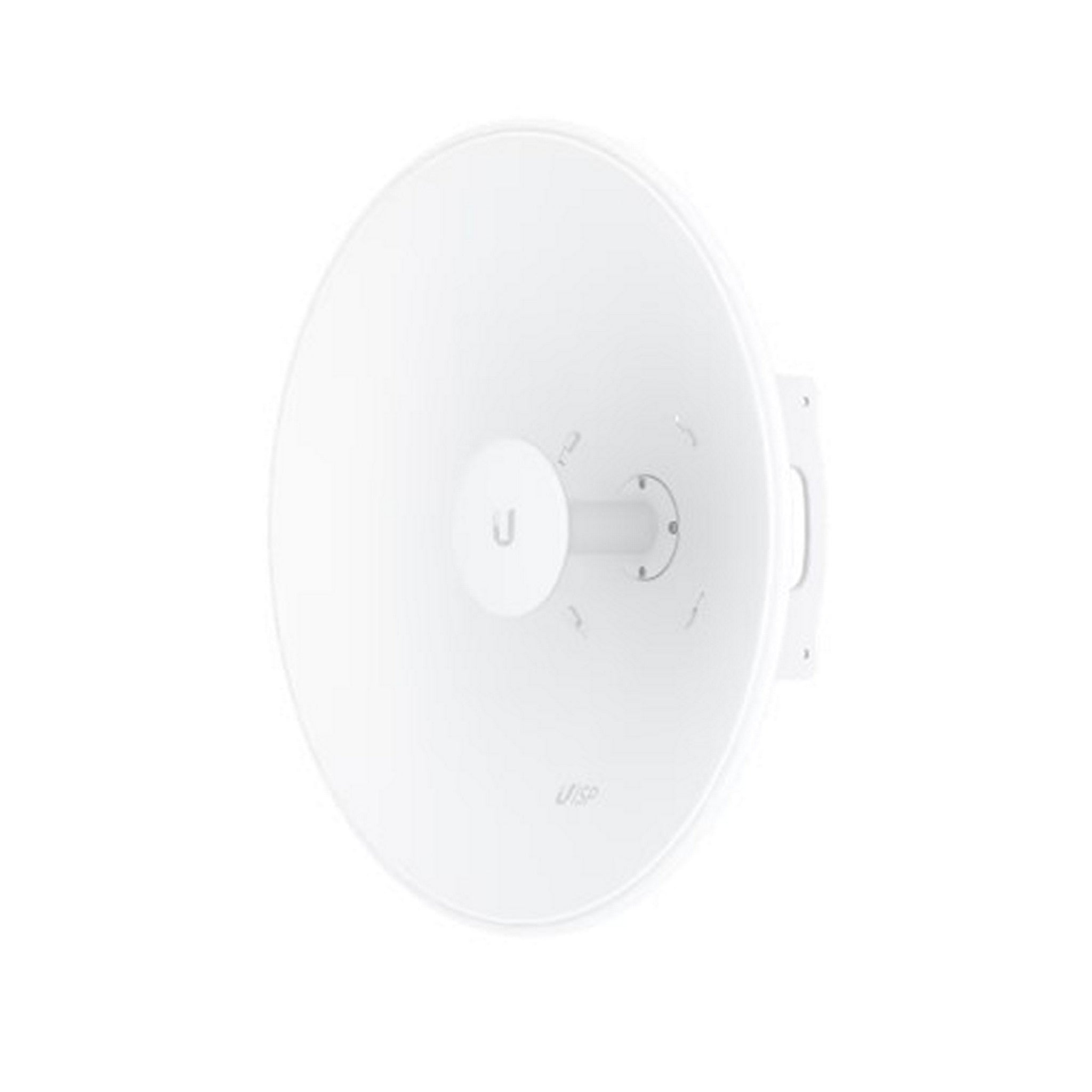

The Ubiquiti UISP Dish is a high-performance antenna designed for long-range point-to-point links. Operating in the 5.15 to 6.875 GHz range, it delivers excellent performance for wireless backhaul, extending coverage up to 30+ km. Its robust design includes UV-resistant materials and an aluminum alloy frame for durability. The antenna is weatherproof with an IPX6 rating and features an alignment mounting kit, offering easy installation and fine-tuning with ±15° mechanical adjustment.
Key Features:
Frequency range: 5.15 to 6.875 GHz
Gain: 30 dBi
Beamwidth: 5 to 6° (3 dB azimuth)
Weatherproof, IPX6 rated
Mounting kit included with adjustable pole compatibility
Technical Specifications:
Dimensions: Ø 650 x 200 mm (Ø 25.6 x 7.9″) Weight: Device: 4.54 kg (10 lb), Mount: 3.1 kg (6.8 lb) Enclosure materials: Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy Wind survivability: Up to 200 km/h (124 mph) Wind loading: 860 N at 200 km/h Mounting: Alignment mounting kit (included), Mechanical adjustment: ±15° elevation, Pole compatibility: Ø40 to 90mm (Ø1.57 to 3.5″) Weatherproofing: IPX6 Frequency range: 5.15 to 6.875 GHz Gain: 30 dBi Beamwidth: Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB), Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB) Electrical downtilt: 0° Maximum VSWR: 2:1 Polarization: Dual-linear Cross-pol isolation: 20 dB
