Ubiquiti UniFi LTE Backup Pro for 4G Failover Solution

Description

Ubiquiti UniFi LTE Backup Pro – Internet Failover for UniFi

The Ubiquiti UniFi LTE Backup Pro provides seamless backup internet connectivity for UniFi systems. With reliable LTE failover, it ensures uninterrupted service during network outages. Ideal for home and office environments, the device is compatible with AT&T networks and offers flexible mounting options. Featuring PoE, it is powered through a UniFi PoE switch and supports an optional external antenna for enhanced coverage.

Key Features

• Reliable LTE failover for uninterrupted connectivity
• Supports AT&T with BYO SIM for US users
• PoE for easy installation and power
• RP-SMA connector for optional external antenna
• 1.54″ display for status updates
• Flexible wall or stand mounting

Technical Specifications

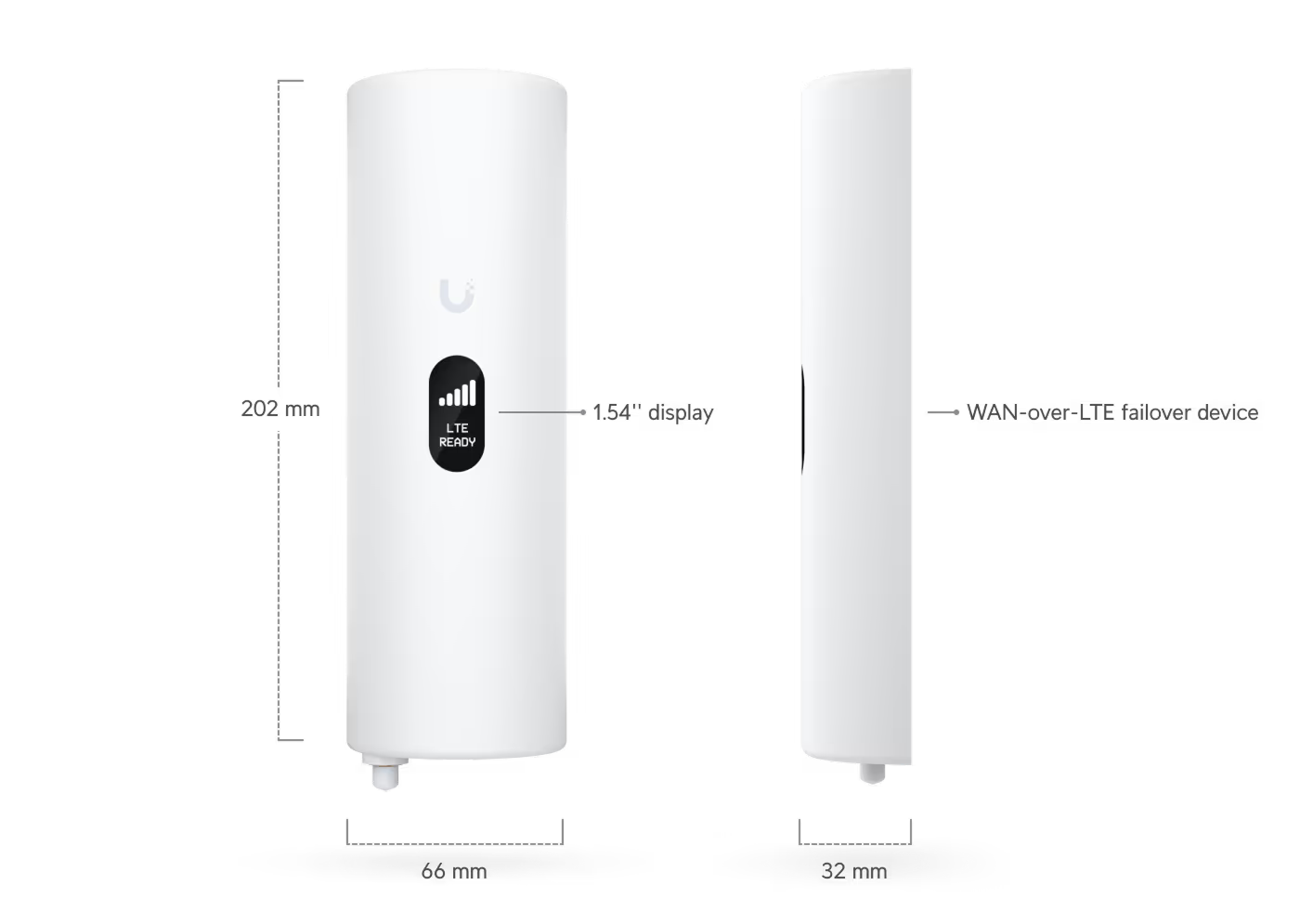

Mechanical Dimensions: 2.6 x 8 x 1.3 inches (66 x 202 x 32 mm)
Weight: 7.9 oz (223 g) without stand, 11.9 oz (336 g) with stand
Enclosure Material: Polycarbonate
Mount Material: Stand: Aluminum, Wall mount: Polycarbonate
Processor: 74 Kc MIPS processor at 775 MHz
Memory: 128 MB DDR2
Networking Interface: 2 x GbE RJ45 ports
LTE Category: 4
Management Interface: Ethernet
PoE Interface: 1 PoE in, 1 PoE passthrough output (requires PoE+ switch)
SIM Type: Nano-SIM (data-only)
Supported LTE Bands: Band 2, 4, 5, 12, 14, 66
Power Supply: UniFi PoE switch, 48V, 0.5A PoE adapter
Max. Power Consumption: 8.5W (excluding PoE passthrough)
Max. PoE Pass-through Wattage: 15.4W (requires PoE+ switch)
MIMO: 2 x 2 LTE Category 4
Throughput Speeds: Download: 150 Mbps, Upload: 50 Mbps (depending on location and network)

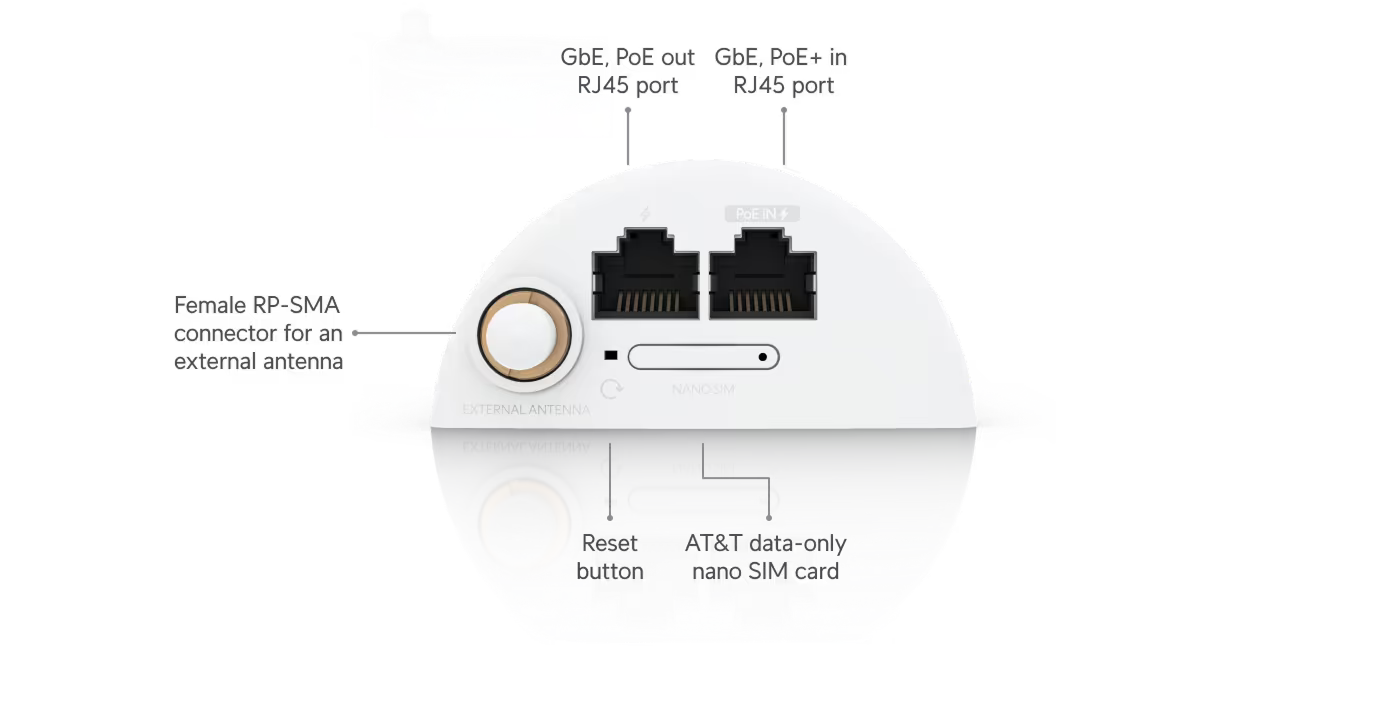

Antenna: 2 internal LTE antennas, 1 RP-SMA connector for external antenna (optional)
External Antenna Port: Female RP-SMA (supports male RP-SMA connectors)
LCM Display: 1.54″ screen
Button: Factory reset

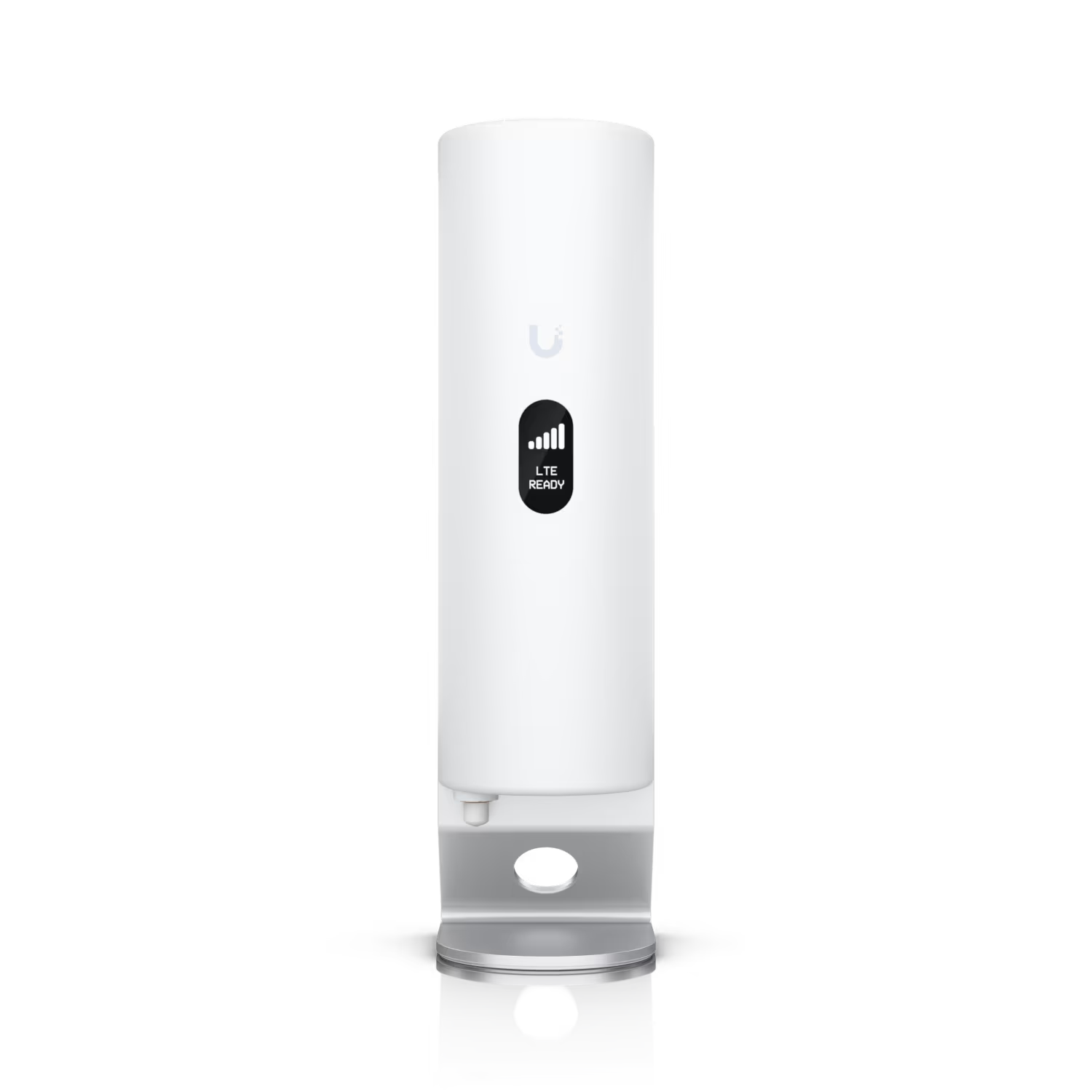

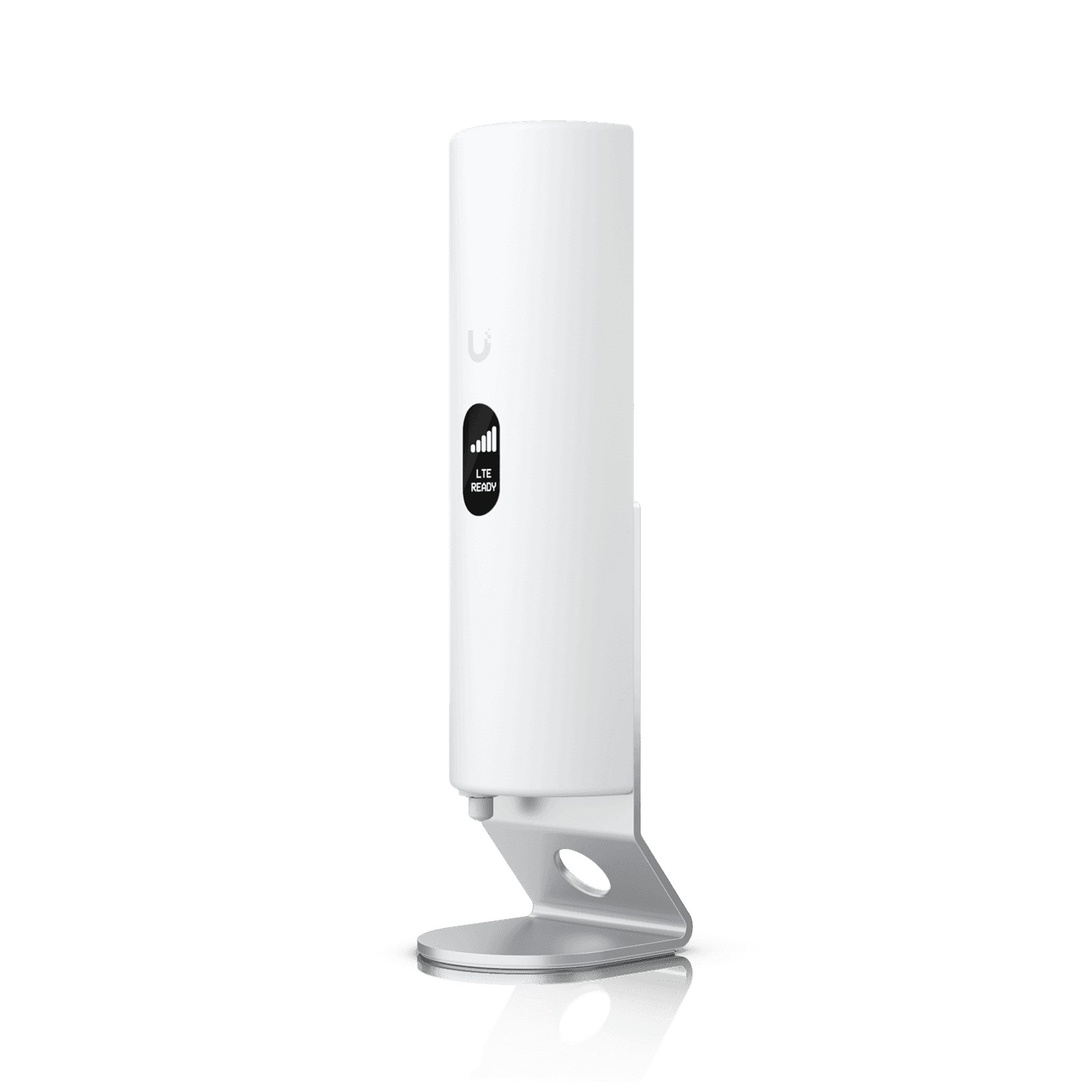

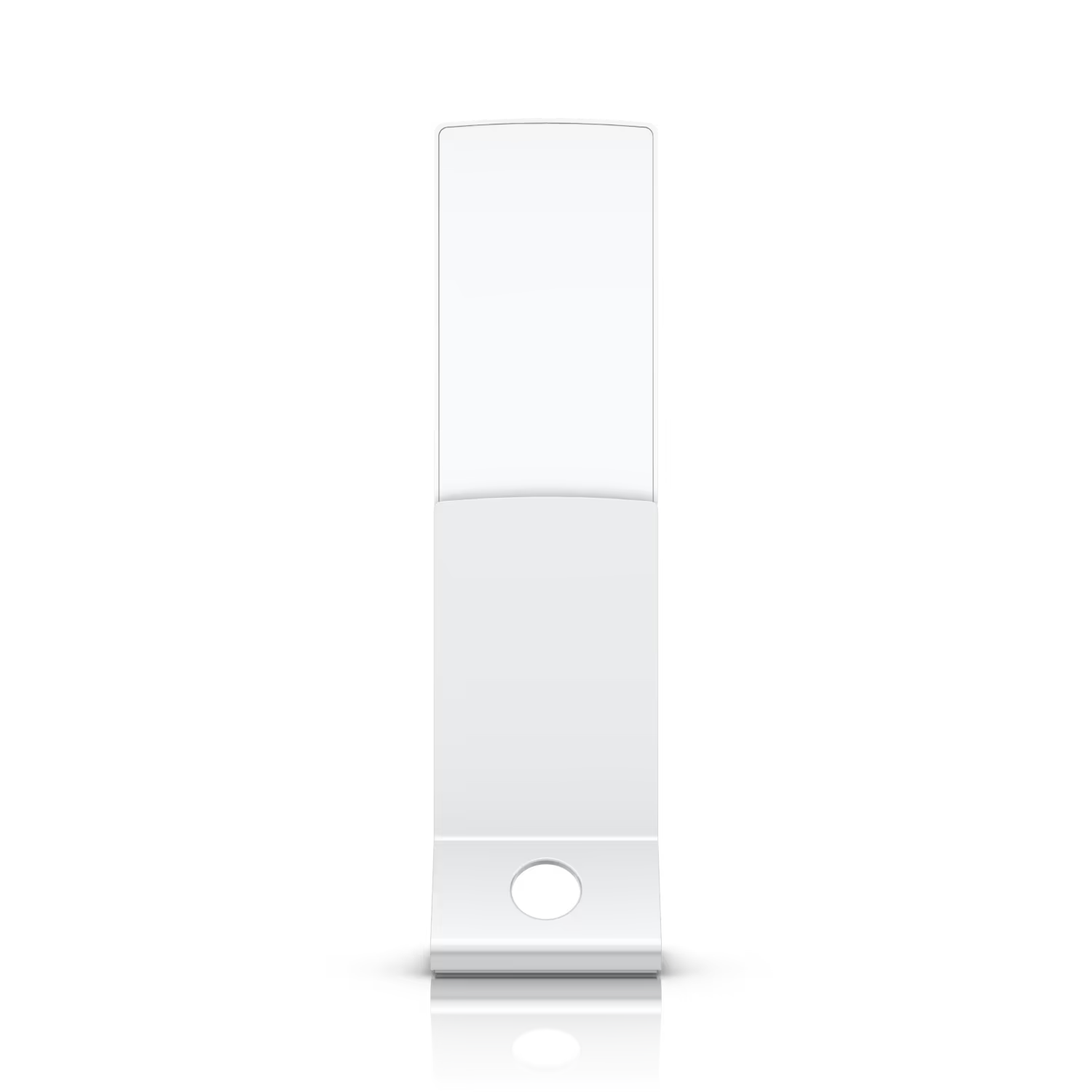

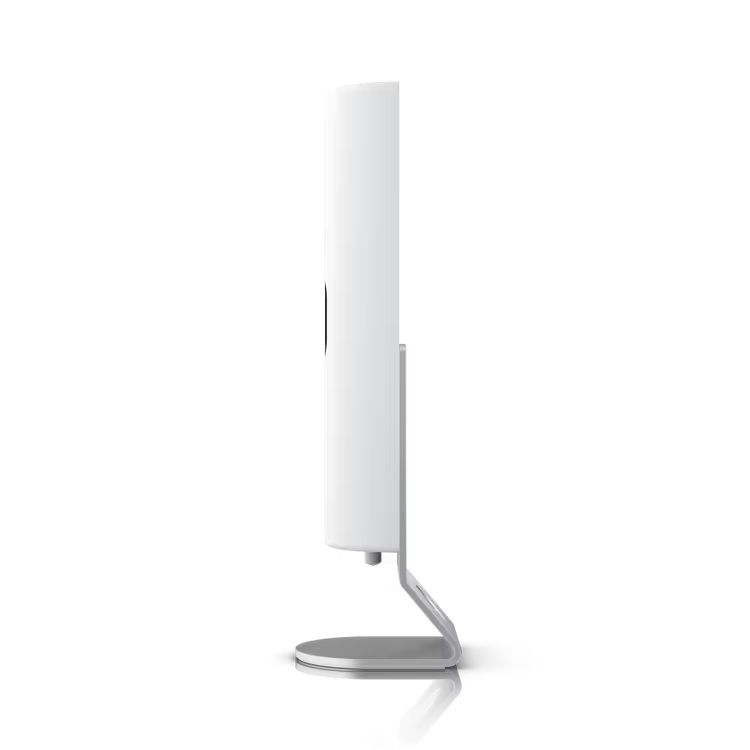

Mounting: Wall mount or foot stand (included)
Operating Temperature: -10 to 60°C (14 to 140°F)
Operating Humidity: 5 to 95% non-condensing
Certifications: FCC, IC
Software Management Application: UniFi Network: Version 7.2.85 and later

Installation / Use Cases

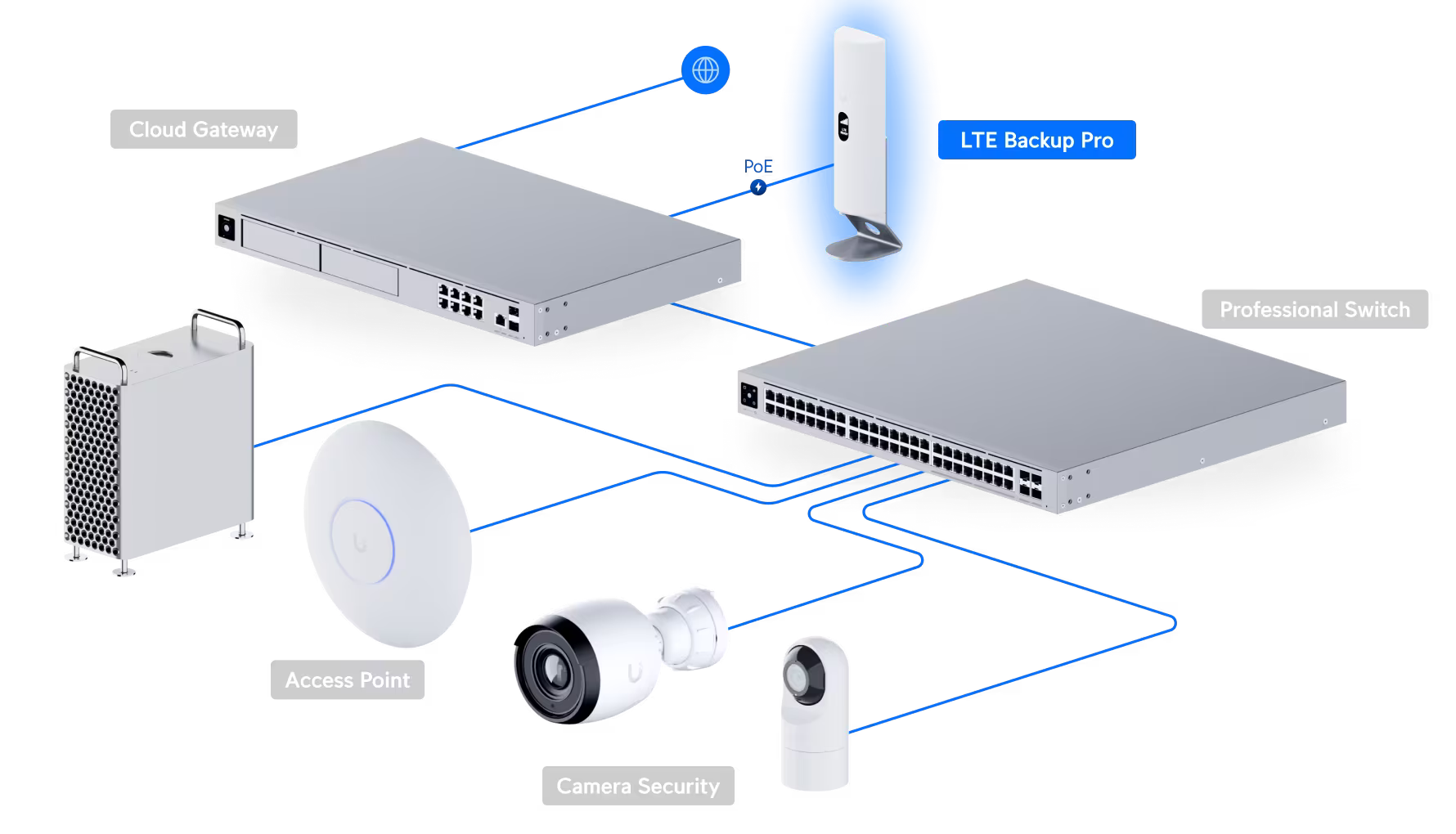

• UniFi network setups requiring LTE backup internet connectivity
• Home and office environments needing internet failover during network outages
• US installations using AT&T with BYO SIM
• Network deployments using PoE power from a UniFi PoE switch
• LTE coverage setups requiring an optional external antenna through RP-SMA connection
• Wall or desk installations using included wall mount or foot stand mounting

Package Contents

• Ubiquiti UniFi LTE Backup Pro for 4G Failover Solution
