Description
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐈𝐓𝐋𝐄

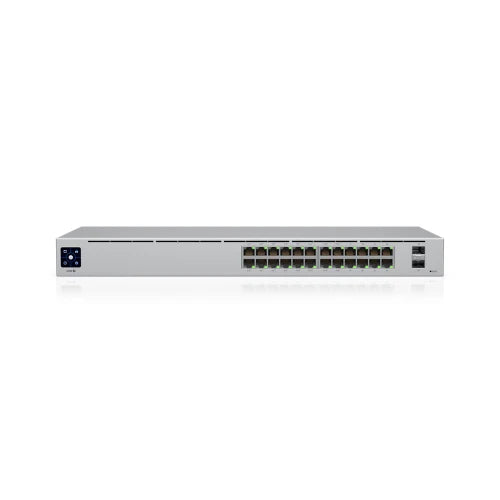

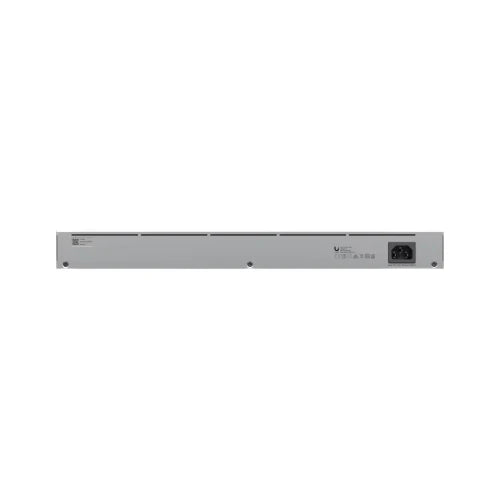

Ubiquiti UniFi USW-24-PoE 24-Port Gigabit 802.3af/at PoE+ Switch 2x 1G SFP
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐎𝐕𝐄𝐑𝐕𝐈𝐄𝐖
Ubiquiti UniFi USW-24-PoE managed Gigabit switch with 24 RJ45 ports, including 16 IEEE 802.3af/at PoE+ ports, two 1G SFP ports, 95W total PoE availability, and a 1.3-inch touchscreen display.
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐏𝐑𝐎𝐃𝐔𝐂𝐓 𝐓𝐘𝐏𝐄 / 𝐂𝐀𝐓𝐄𝐆𝐎𝐑𝐘
Networking
Routers and Switches
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐊𝐄𝐘 𝐅𝐄𝐀𝐓𝐔𝐑𝐄𝐒
• 24 Gigabit 10/100/1000 RJ45 ports
• 16 RJ45 ports support PoE+ IEEE 802.3af/at
• 2 x 1G SFP Ethernet ports for fiber connectivity
• 95W total available PoE
• Up to 32W PoE wattage per port by PSE using 802.3at
• 52 Gbps switching capacity
• 26 Gbps total non-blocking throughput
• 38.69 Mpps forwarding rate
• 1.3-inch touchscreen for status information, monitoring, and troubleshooting
• Fanless, silent thermal cooling
• 1U rackmountable
• Supports management through the UniFi Network Controller
• Supports network/VLAN configuration, port mirroring and aggregation, jumbo frames, flow control, storm control, spanning tree, and 802.1X/RADIUS VLAN
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐓𝐄𝐂𝐇𝐍𝐈𝐂𝐀𝐋 𝐒𝐏𝐄𝐂𝐈𝐅𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
• Model: USW-24-PoE
• RJ45 Interfaces: 24 x 10/100/1000 Mbps
• PoE Interfaces: Ports 1-16, PoE+ IEEE 802.3af/at
• PoE Pin Assignment: Pins 1, 2+; 3, 6-
• SFP Interfaces: 2 x 1G SFP Ethernet
• Management: Ethernet In-Band
• Total Available PoE: 95W
• Maximum PoE Wattage per Port by PSE: 32W with 802.3at
• 802.3af Voltage Range: 44-57V
• 802.3at Voltage Range: 50-57V
• Total Non-Blocking Throughput: 26 Gbps
• Switching Capacity: 52 Gbps
• Forwarding Rate: 38.69 Mpps
• Power Method: 100-240VAC, 50/60 Hz, universal input
• Power Supply: Internal AC/DC, 120W
• Maximum Power Consumption Excluding PoE Output: 25W
• Dimensions: 442.4 x 200 x 43.7 mm (17.42 x 7.87 x 1.72 in)
• Weight: 3.00 kg (6.61 lb)
• Weight With Brackets: 3.09 kg (6.81 lb)
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 10-90% noncondensing
• ESD/EMP Protection: Air ±16 kV; Contact ±12 kV
• Shock and Vibration: ETSI300-019-1.4 Standard
• Certifications: CE, FCC, IC
• Rack Form Factor: 1U
• Rackmount Hardware: Included
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
𝐈𝐍𝐓𝐄𝐍𝐃𝐄𝐃 𝐔𝐒𝐄 / 𝐀𝐏𝐏𝐋𝐈𝐂𝐀𝐓𝐈𝐎𝐍𝐒
Designed to expand and power UniFi networks, including PoE devices such as UniFi access points and cameras. The 7.9-inch depth supports installation in a SOHO rack cabinet or placement on a desktop. Fanless thermal cooling supports deployment in areas where fan noise would be distracting.
