Ubiquiti USW Aggregation 8 Port 10G SFP+ Switch for High Speed Connectivity

Description

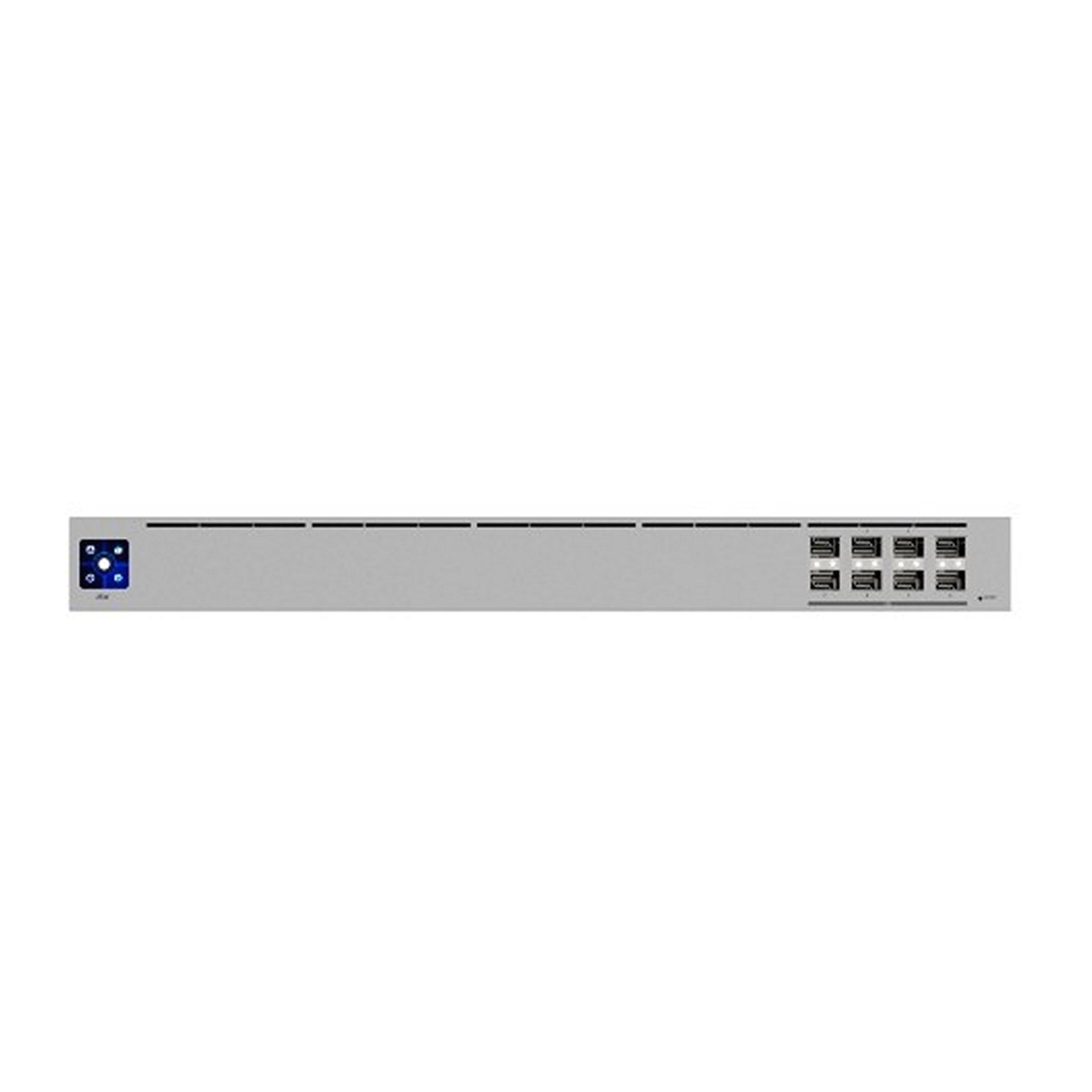

Ubiquiti USW-Aggregation 8-Port 10G SFP+ Switch

The Ubiquiti USW-Aggregation is an 8-port Layer 2 switch designed for high-performance network environments. With 10G SFP+ ports and an impressive throughput of 80 Gbps, this switch supports efficient data aggregation for large-scale deployments. Featuring a fanless design and a robust internal power supply, it delivers reliable performance for mission-critical applications while maintaining a low footprint. Ideal for managing large volumes of data traffic in high-speed network setups.

Key Features

• 8 x 10G SFP+ ports for high-speed connectivity
• 80 Gbps non-blocking throughput for efficient data transfer
• Fanless design for quiet and reliable operation
• Layer 2 switching with advanced features like LACP and IGMP snooping

Technical Specifications

Dimensions: 17.4 x 4.7 x 1.7 inches (442 x 120 x 43.7 mm)
Weight: 5.8 lbs (2.6 kg) without mounting brackets, 6 lbs (2.7 kg) with brackets

Networking Interface: (8) 10G SFP+ ports
Total Non-Blocking Throughput: 80 Gbps
Switching Capacity: 160 Gbps
Forwarding Rate: 119.04 Mpps
Power Method: Universal AC input (100–240V AC, 50/60 Hz)
Max. Power Consumption: 30W
Power Supply: Internal AC/DC, 36W
Supported Voltage Range: 100–240V AC
ESD/EMP Protection: Air: ± 16kV, Contact: ± 12kV
LCM Display: 1.3″ color touchscreen
Operating Temperature: -5 to 40° C (23 to 104° F)
Operating Humidity: 10 to 90% non-condensing
Certifications: CE, FCC, IC

Switching Features

• IGMP snooping, STP/RSTP, Port isolation, and Storm control
• Voice VLAN, Port mirroring, LACP port aggregation
• Multicast/broadcast rate limiting, 802.1X control, Jumbo frames support
• MAC address blocking, Flow control, and more advanced features

Application Requirements

UniFi Network Version 5.14.12 or later
