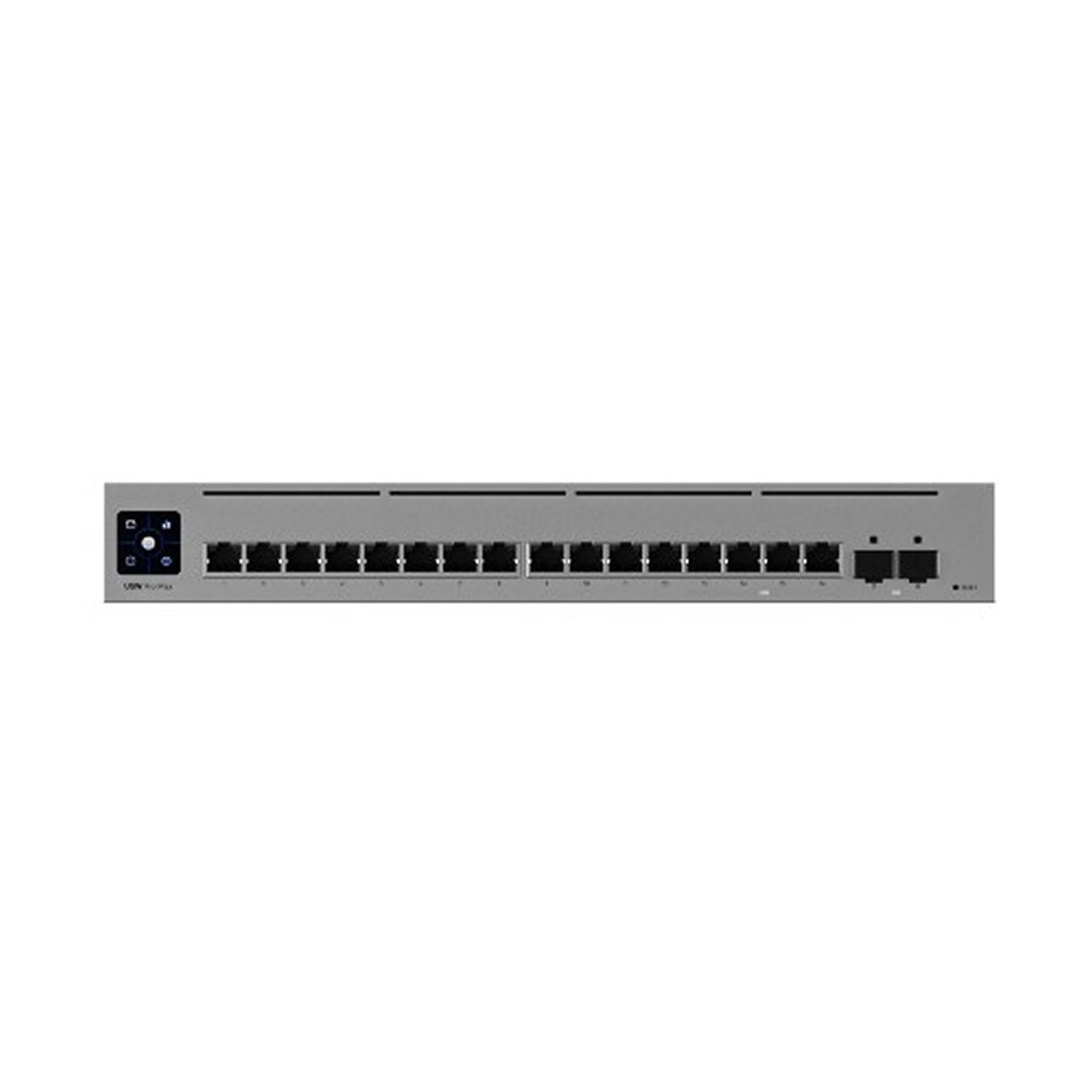

Ubiquiti USW Pro Max 16 16 Port Managed Switch with SFP+ Ports

Description

Ubiquiti USW-Pro-Max-16 16-Port Managed Switch with 2.5GbE & SFP+

The Ubiquiti USW-Pro-Max-16 is a high-performance managed switch designed for demanding network environments. It features 12 Gigabit RJ45 ports, 4 1/2.5GbE RJ45 ports, and 2 SFP+ ports, making it ideal for connecting a variety of devices while providing superior data throughput. With a total non-blocking throughput of 42 Gbps and advanced Layer 2 features, it delivers reliable and efficient network management. The switch includes a 1.3″ touchscreen display for easy status monitoring, making it an excellent choice for both home and enterprise networks.

Key Features

• 12 GbE and 4 1/2.5GbE RJ45 ports for flexible network configuration
• 2 10G SFP+ ports for high-speed uplink options
• Non-blocking throughput of 42 Gbps, with a switching capacity of 84 Gbps
• Built-in 1.3″ touchscreen display for easy monitoring and status updates
• Supports PoE+ with up to 25W power consumption

Technical Specifications

Dimensions: 12.8 x 6.3 x 1.7 inches (325.1 x 160 x 43.7 mm)
Weight: 4.3 lb (1.95 kg)
Enclosure material: SGCC steel
Management interface: Ethernet In-Band
Networking interface: (12) GbE RJ45, (4) 1/2.5 GbE RJ45, (2) 10G SFP+
Total non-blocking throughput: 42 Gbps
Switching capacity: 84 Gbps
Forwarding rate: 62.496 Mpps
Power method: Type-C adapter
Power supply: 5V, 25W
Max. power consumption: 25W
LCM display: (1) 1.3″ touchscreen
Button: Factory reset
Operating temperature: -5 to 40°C (23 to 104°F)
Operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC

In the Box

• Ubiquiti USW-Pro-Max-16 Switch
• Power Adapter
• Mounting hardware
