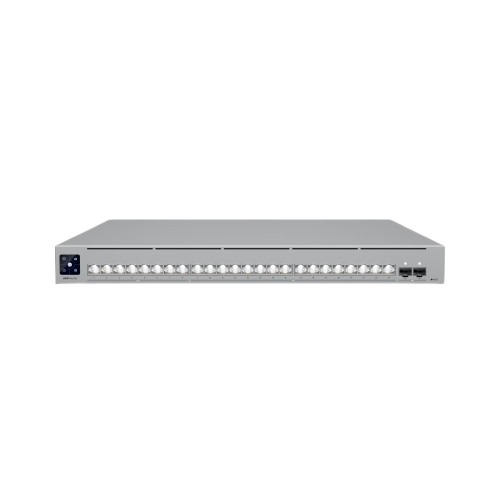

Ubiquiti USW-Pro-XG-24 24-Port 10GbE Layer 3 PoE Switch 25G SFP28

Description

PRODUCT OVERVIEW

Professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• 1.3′ touchscreen with AR (Augmented Reality) switch management
• 8 multi-speed 2.5 GbE ports (2.5G / 1G / 100M / 10M)
• 16 multi-speed 10 GbE ports (10G / 5G / 2.5G / 1G / 100M / 10M)
• 2 × 25G SFP28 ports
• Layer 3 switching features
• DC power backup support (requires UniFi Power Backup)
• Reset button
• AC power input
• Safety latch
• Active cooling system (multiple rear fans)
• Technical Specification
• Overview: Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7′)
• Port Layout: 2.5 GbE RJ45: 8 (2.5G/1G/100M/10M)
• 10 GbE RJ45: 16 (10G/5G/2.5G/1G/100M/10M)
• 25G SFP28: 2 (25G/10G/1G)
• Redundancy: DC Power Backup
• Layer 3: ✓

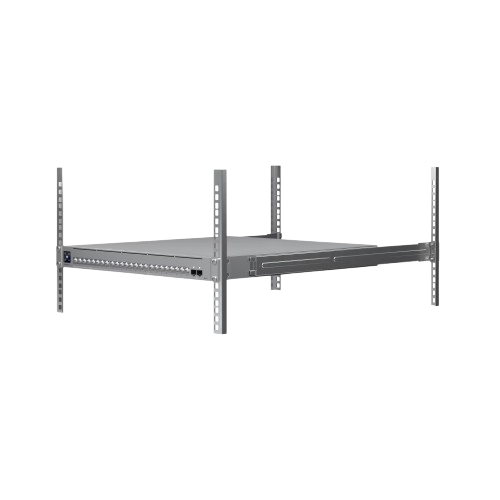

• Form Factor: Rack mount (1U)

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: USW-Pro-XG-24
• Product Type: Fiber
• 1.3′ touchscreen with AR (Augmented Reality) switch management
• 8 multi-speed 2.5 GbE ports (2.5G / 1G / 100M / 10M)
• 16 multi-speed 10 GbE ports (10G / 5G / 2.5G / 1G / 100M / 10M)
• 2 × 25G SFP28 ports
• Layer 3 switching features
• DC power backup support (requires UniFi Power Backup)
• Reset button
• AC power input
• Safety latch
• Active cooling system (multiple rear fans)
• Overview: Dimensions: 442 x 480 x 44 mm (17.4 x 18.9 x 1.7′)
• Port Layout: 2.5 GbE RJ45: 8 (2.5G/1G/100M/10M)
• 10 GbE RJ45: 16 (10G/5G/2.5G/1G/100M/10M)
• 25G SFP28: 2 (25G/10G/1G)
• Redundancy: DC Power Backup
• Layer 3: ✓
• Form Factor: Rack mount (1U)
• Etherlighting™: ✓
• Performance: Switching Capacity: 460 Gbps
• Total Non-Blocking Throughput: 230 Gbps
• Forwarding Rate: 342 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 128,000
• L3 Table Size: ARP Entries: 128,000
• IPv4 Routes: 256,000
• Packet Buffer Size: 8 MB
• Access Lists: IPv4: 256
• MAC: 256
• Layer 3 Features: DHCP Server (Local Networks): ✓

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
