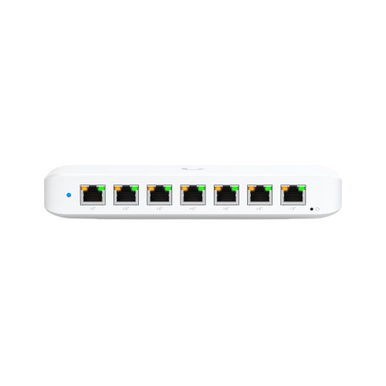

Ubiquiti USW-Ultra-210W 8-Port Gigabit PoE+ Switch 210W

Description

PRODUCT OVERVIEW

Ubiquiti USW-Ultra-210W compact Layer 2 Gigabit Ethernet switch with 8 RJ45 ports, 7 PoE+ outputs, PoE++ input, 210W external AC/DC power supply, and desktop, wall, or magnetic mounting options.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• 8 x 1 GbE RJ45 ports
• 7 x PoE+ ports
• 1 x PoE++ input
• Up to PoE+ output
• 16 Gbps switching capacity
• 8 Gbps total non-blocking throughput
• 12 Mpps forwarding rate
• Supports up to 256 VLANs
• 4,000-entry MAC address table
• Layer 2 switching features
• Compact desktop, wall, and magnetic mounting options
• Ethernet management

TECHNICAL SPECIFICATIONS

• Manufacturer: Ubiquiti
• Model / Part Number: USW-Ultra-210W
• Dimensions: 203 x 76 x 33 mm (8 x 3 x 1.3 in)
• Ports: 8 x 1 GbE RJ45
• PoE+: 7 ports
• PoE++: 1 input
• Maximum PoE Wattage per PoE+ Port: 30W
• PoE Availability with PoE++ Input: 42W
• PoE Availability with PoE+ Input: 16W
• PoE Availability with 60W PoE Adapter Input: 42W
• PoE Availability with 60W AC Adapter Input: 52W
• PoE Availability with 210W AC Adapter Input: 202W
• Switching Capacity: 16 Gbps
• Total Non-Blocking Throughput: 8 Gbps
• Forwarding Rate: 12 Mpps
• Supported VLANs: 256
• MAC Address Table Size: 4,000
• Layer 2 Features: STP/RSTP, egress rate limiting, flow control, storm control, multicast/broadcast rate limiting, port isolation, port mirroring, jumbo frames, and loop protection
• Maximum Power Consumption with PoE Input: 9W excluding PoE output
• Maximum Power Consumption with Adapter Input: 8W excluding PoE output
• Maximum Power Consumption with 210W AC Adapter: 210W including PoE output
• Power Method: AC/DC adapter or PoE++
• Power Input: DC or PoE
• Power Supply: External AC/DC, 210W
• Supported Voltage Range: 50–57V DC/PoE
• Management: Ethernet
• Heat Dissipation Excluding PoE Output: 30.708 BTU/hr or 27.296 BTU/hr, depending on power input
• Device Weight: 320 g (11.3 oz)
• Wall Mount Weight: 45 g (1.6 oz)
• Adapter Weight: 770 g (1.7 lb)
• Enclosure Material: Polycarbonate
• Operating Temperature with PoE++ Input: -30 to 60°C (-22 to 140°F)
• Operating Temperature with 210W AC Adapter Input: -20 to 60°C (-4 to 140°F)
• Operating Humidity: 10% to 90% noncondensing
• Certifications: CE, FCC, IC
