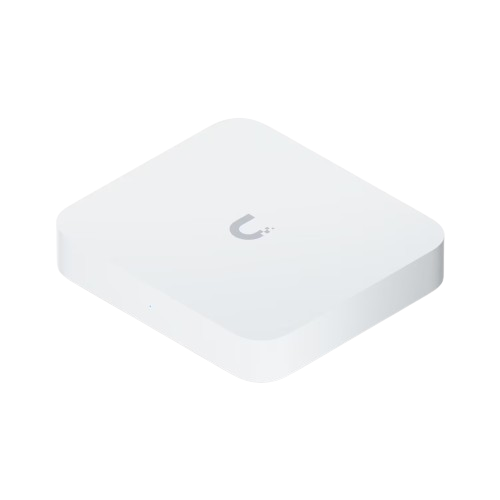

Ubiquiti UXG-MAX 2.5G Multi-WAN Gateway 2.3 Gbps IDS/IPS

Description

PRODUCT OVERVIEW

Compact, multi-WAN independent gateway with full 2.5G support for high-performance networking at small-to-medium sites.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
• Up to 2.3 Gbps routing with IDS/IPS when using UniFi OS 4.1 or later

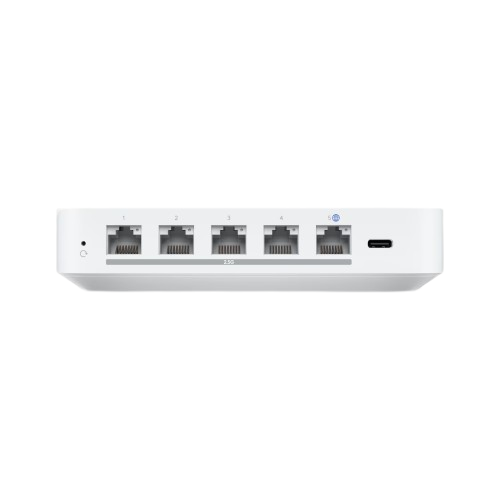

• (1) 2.5 GbE WAN port
• (4) 2.5 GbE LAN ports, including (1) remappable to WAN
• USB-C powered (adapter included)
• Managed with UniFi Network 8.1.113 and later
• Compact plug-and-play design
• Status LED
• Reset button
• USB-C power input* *5V DC, 3A USB-C adapter included
• Note: EU Store version includes EU power plug only.
• Technical Specification:
• Overview:
• Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2′)
• Default WAN Ports: (1) 2.5 GbE RJ45
• LAN Ports: (4) 2.5 GbE RJ45
• IDS/IPS Throughput: 2.3 Gbps
• Form Factor: Compact desktop

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: UXG-MAX
• Product Type: Networking Accessories
• Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server
• Up to 2.3 Gbps routing with IDS/IPS when using UniFi OS 4.1 or later
• (1) 2.5 GbE WAN port
• (4) 2.5 GbE LAN ports, including (1) remappable to WAN
• USB-C powered (adapter included)
• Managed with UniFi Network 8.1.113 and later
• Compact plug-and-play design
• Status LED
• Reset button
• USB-C power input* *5V DC, 3A USB-C adapter included
• Note: EU Store version includes EU power plug only.
• Overview: Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2′)
• Default WAN Ports: (1) 2.5 GbE RJ45
• LAN Ports: (4) 2.5 GbE RJ45
• IDS/IPS Throughput: 2.3 Gbps
• Form Factor: Compact desktop
• Security: Stateful Firewall
• Application-Aware Layer 7 Firewall
• DPI & Traffic Identification
• Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)
• Content Filtering
• Intrusion Prevention (IPS/IDS)
• Ad Blocking
• IDS/IPS Signatures 55,000+ With CyberSecure
• VPN & SD-WAN: License-Free SD-WAN
• Site-to-Site VPN: Site Magic
• IPsec
• OpenVPN
• VPN Server: Teleport Zero-Configuration VPN

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
