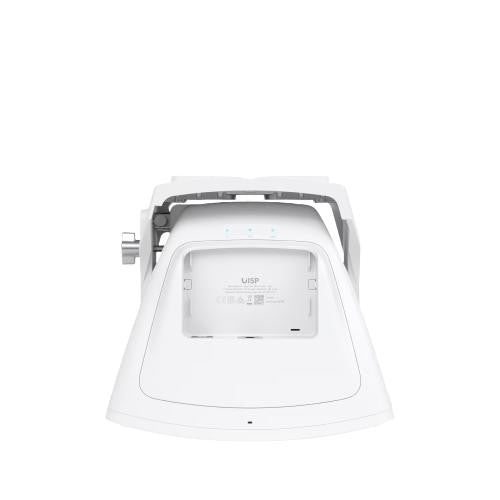

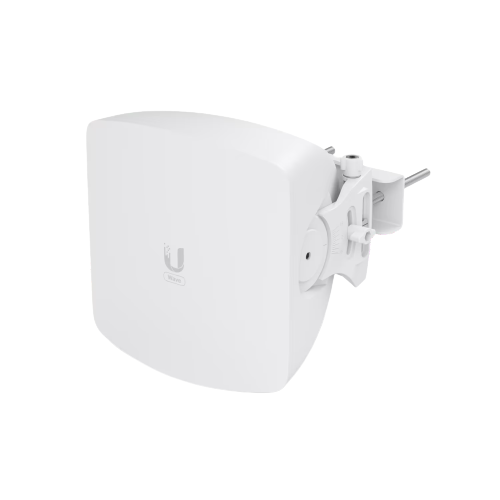

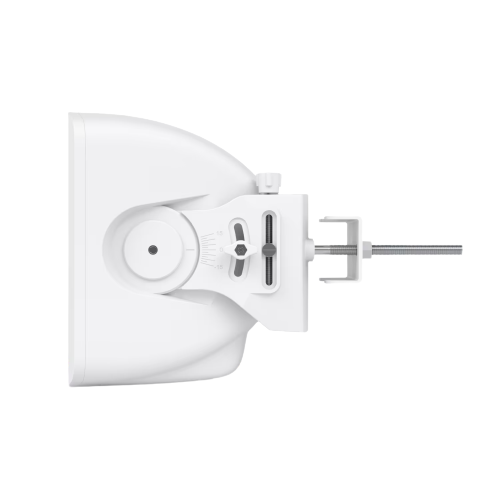

Ubiquiti Wave 60 GHz PtMP access point with 5.4 Gbps total throughput, support for 15 clients, 2.5 GbE and 10G SFP+ connectivity, GPS, and 802.11ax WiFi 6 backup RF.
PRODUCT TYPE
Wireless Access Points
KEY FEATURES
• PtMP access point operating mode • Supports up to 15 clients • 5.4 Gbps total throughput (2.7 Gbps duplex) • 57–71 GHz operating frequency, dependent on regulatory region • 24 dBi 60 GHz antenna gain • 30° azimuth beamwidth • Up to 8 km range when connecting to a Wave Long-Range • Up to 5 km range when connecting to a Wave Nano • 802.11ax WiFi 6 backup RF • 12 dBi backup RF antenna gain • (1) 2.5 GbE RJ45 port • (1) 10G SFP+ port • Integrated GPS • WPA2-PSK (AES) encryption • Wave technology • Bluetooth management for setup through the UISP Mobile app • IPX6 weatherproofing • 48V DC, 0.65A, 2.5 GbE PoE adapter included
TECHNICAL SPECIFICATIONS

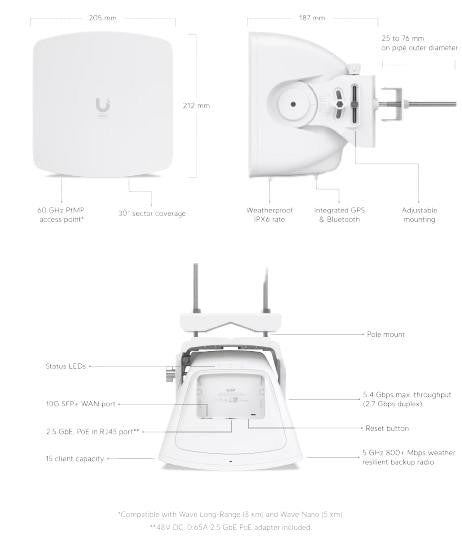

• Model: Wave-AP • Operating Mode: PtMP Access Point • Dimensions: 212 x 205 x 187 mm (8.3 x 8.1 x 7.4″) • Weight: 2.3 kg (5.07 lb) • Enclosure Materials: Aluminum alloy, UV-stabilized polycarbonate • Pole Mount Diameter: 25–76 mm (1–3″) pipe outer diameter • Wind Loading: 98 N at 200 km/h (22 lbf at 125 mph) • Weatherproofing: IPX6 • Processor: Quad ARM Cortex-A53 cores at 1.4 GHz • Memory: 512 MB DDR3L • Network Interface: (1) 2.5 GbE RJ45 port (100/1000/2500); active only when SFP+ port is down • SFP+ Interface: (1) 10G SFP+ port (1/10) • Maximum Power Consumption: 24W • Power Method: 48V DC passive PoE 4-pair or 2-pair; 24V DC passive PoE 4-pair • Power Supply: 48V DC, 0.65A, 2.5 GbE PoE adapter included • GPS: Yes • Operating Temperature: -40 to 60°C (-40 to 140°F) • Operating Humidity: 5–95% noncondensing • Certifications: FCC, IC, CE • OS: airOS • Network Mode: Bridge • Services: UISP, ping watchdog, NTP client, SNMP • Management: Bluetooth through UISP Mobile app and Web UI • Total Throughput: 5.4 Gbps (2.7 Gbps duplex) • Supported Client Count: 15 • Encryption: WPA2-PSK (AES) • 60 GHz Operating Frequency: 57–71 GHz, dependent on regulatory region • 60 GHz Channel Bandwidth: 2160, 1080 MHz • 60 GHz Modulation: 16QAM, QPSK • 60 GHz Antenna Gain: 24 dBi • 60 GHz Polarization: Vertically linear • 60 GHz Beamwidth: 30° azimuth; 3° elevation at 3 dB; 4° elevation at 6 dB • Backup RF Standard: 802.11ax (WiFi 6) • Backup RF US/CA Frequencies: U-NII-1 5150–5250 MHz; U-NII-2A 5250–5350 MHz; U-NII-2C 5470–5725 MHz; U-NII-3 5725–5850 MHz • Backup RF Channel Bandwidth: 20, 40, 80 MHz • Backup RF Antenna Gain: 12 dBi • Backup RF Cross-Pol Isolation: 10 dB
Specifications
