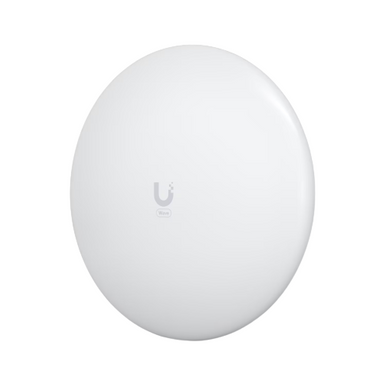

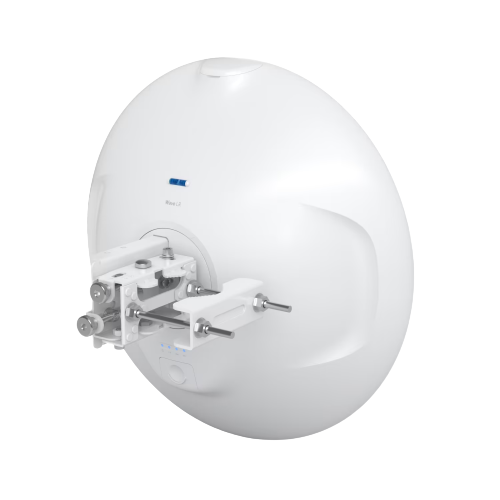

Ubiquiti WAVE-LR-US 60GHz 8km PtMP Station 2Gbps 5GHz Backup

$413.43

In stock

Spend & save Spend $149+, save up to $500 Applied automatically
Spend $149Save $50
Spend $399Save $100
Spend $799Save $200
Spend $1,299Save $300
Spend $1,999Save $500

Discount applied automatically in cart.

Categories: , , , Tags: ,
SHARE

Description

PRODUCT OVERVIEW

Ubiquiti Wave long-range PtMP station with integrated 60 GHz radio, up to 8 km maximum range, 2 Gbps total throughput, and 802.11ax WiFi 6 backup RF.

PRODUCT TYPE

Point-to-Multipoint

KEY FEATURES

• PtMP station operating mode
• Integrated 60 GHz radio with Wave technology
• 2 Gbps total throughput (1 Gbps duplex)
• Maximum range: 8 km
• 57–71 GHz operating frequency, dependent on regulatory region
• 46 dBi 60 GHz antenna gain
• 802.11ax (WiFi 6) backup RF
• 22 dBi backup RF antenna gain
• Integrated GPS
• WPA2-PSK (AES) encryption
• Bluetooth management for setup through the UISP app
• Bridge/Router network modes
• IPX6 weatherproofing
• 48VDC, 0.65A gigabit PoE adapter included

TECHNICAL SPECIFICATIONS

• Dimensions: Ø424.4 x 166.2 mm (Ø16.7 x 6.5″)
• Weight without mount: 2.59 kg (5.7 lb)
• Weight with mount: 3.79 kg (8.4 lb)
• Enclosure Material: UV-stabilized plastic
• Mount Material: Galvanized steel
• Pole Mount Diameter: 25–76.2 mm (1–3″) pipe outer diameter
• Wind Loading: 286 N at 200 km/h (64.3 lbf at 125 mph)
• Weatherproofing: IPX6
• Processor: Dual ARM Cortex-A53 cores at 1 GHz
• Memory: 512 MB DDR3L
• Network Interface: (1) GbE RJ45 port
• Maximum Power Consumption: 18W
• Power: 48VDC passive PoE 4-pair or 2-pair; 24VDC passive PoE 4-pair
• Power Supply: 48VDC, 0.65A gigabit PoE adapter included
• Operating Temperature: -40 to 60°C (-40 to 140°F)
• Operating Humidity: 5–95% noncondensing
• Certifications: FCC, IC, CE
• OS: airOS
• Services: UISP, ping watchdog, NTP client, SNMP
• Tools: Antenna alignment, discovery utility, ping, trace route, speed test
• 60 GHz Channel Bandwidth: 2160, 1080 MHz
• 60 GHz Modulation: 16QAM, QPSK
• 60 GHz Antenna Gain: 46 dBi
• 60 GHz Beamwidth: 0.8° at 3 dB; 1.1° at 6 dB
• Backup RF Standard: 802.11ax (WiFi 6)
• Backup RF US/CA Frequencies: U-NII-1 5150–5250 MHz; U-NII-3 5725–5850 MHz
• Backup RF Channel Bandwidth: 20, 40, 80 MHz
• Backup RF Antenna Gain: 22 dBi
• Backup RF Polarization: Dual-linear
• Backup RF Cross-Pol Isolation: 20 dB
• Backup RF Beamwidth: 8–10° at 3 dB
• Total Throughput: 2 Gbps (1 Gbps duplex)
• Maximum Range: 8 km
• Encryption: WPA2-PSK (AES)
