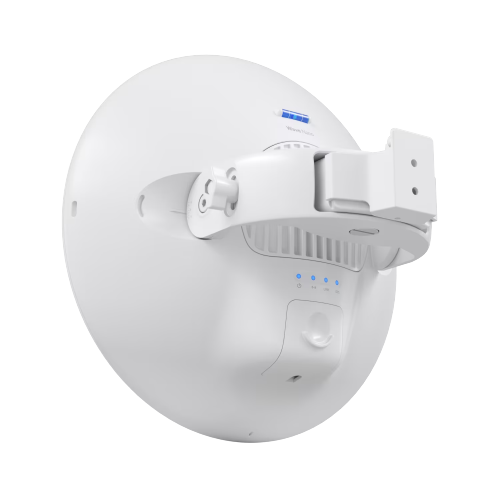

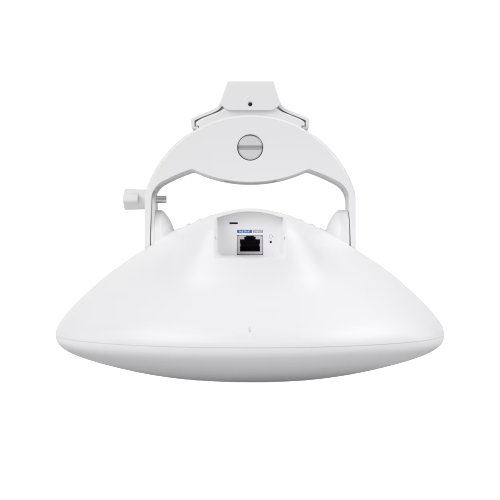

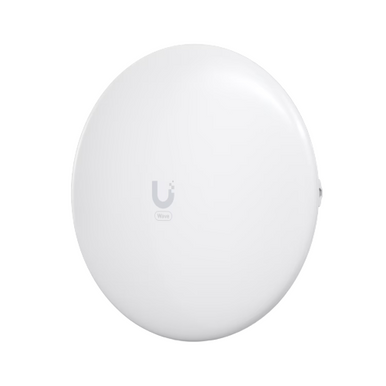

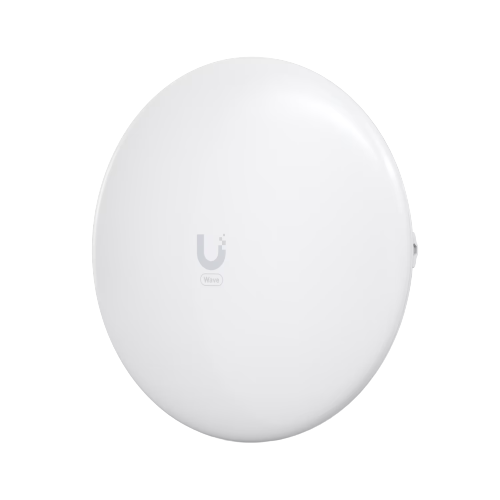

Ubiquiti WAVE-NANO-US 60GHz Point-to-Multipoint 2Gbps Station

Description

PRODUCT OVERVIEW

Ubiquiti introduces the UISP Wave Nano PtMP Station , a cutting-edge 60 GHz wireless solution powered by Wave Technology. With a total throughput of 2 Gbps (1 Gbps duplex) , it ensures rapid data transmission. The built-in 5 GHz backup radio ensures uninterrupted connectivity in challenging environments. Featuring a Bluetooth radio , setup is effortless via the UISP Mobile app. Its sleek design seamlessly integrates into any network setup, supporting data transfer speeds of 10, 100, and 1000 Mbit/s for reliable network transmission. Manage networks and clients centrally with the UISP app, organizing plans, billing, and growing your customer base easily. Supported distances include 5 km with Wave AP and 4 km with Wave AP Micro , offering maximum throughput and weather-resilient backup radio for robust performance.

PRODUCT TYPE

Point-to-Multipoint

KEY FEATURES

• Compatibility and supported distances:
• Wave AP – 5 km link range
• Wave AP Micro – 4 km link range
• 2 Gbps max. throughput (1 Gbps duplex)
• 5 GHz 800+ Mbps weather-resilient backup radio
• (1) GbE RJ45 port
• Integrated GPS & Bluetooth
• International version WAVE-NANO
• Mechanical Enclosure materials: Aluminum alloy, UV stabilized plastic
• Mount materials: Aluminum alloy, UV stabilized plastic
• Pole mount diameter: 25 to 63.5 mm (1 to 2.5′) on pipe outer diameter
• Wind loading: 127 N at 200 km/h (28.6 lbf at 125 mph)
• Weatherproofing: IPX6
• Hardware Processor: Dual ARM® Cortex®-A53 cores at 1 GHz
• Memory: DDR3L 512 MB
• Networking interface: (1) GbE RJ45 port
• Max. power consumption: 20W
• Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: WAVE-NANO-US
• Product Type: Point-to-Multipoint
• Compatibility and supported distances:
• Wave AP – 5 km link range
• Wave AP Micro – 4 km link range
• 2 Gbps max. throughput (1 Gbps duplex)
• 5 GHz 800+ Mbps weather-resilient backup radio
• (1) GbE RJ45 port
• Integrated GPS & Bluetooth
• International version WAVE-NANO
• Mechanical Enclosure materials: Aluminum alloy, UV stabilized plastic
• Mount materials: Aluminum alloy, UV stabilized plastic
• Pole mount diameter: 25 to 63.5 mm (1 to 2.5′) on pipe outer diameter
• Wind loading: 127 N at 200 km/h (28.6 lbf at 125 mph)
• Weatherproofing: IPX6
• Hardware Processor: Dual ARM® Cortex®-A53 cores at 1 GHz
• Memory: DDR3L 512 MB
• Networking interface: (1) GbE RJ45 port
• Max. power consumption: 20W
• Power method: Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎
• Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only
• Power supply: 48V DC, 0.65A gigabit PoE adapter (included)
• Can be powered by a UISP Router or UISP Switch
• Supported voltage range: 44–54V DC
• 22–27V DC
• GPS: Yes
• Button: Factory reset
• LEDs: Power, Ethernet, GPS, link
• Operating temperature: -40 to 60° C (-40 to 140° F)
• Operating humidity: 5 to 95% non-condensing
• Certifications: FCC, IC, CE

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
