Ubiquiti LTU Rocket PtMP BaseStation Radio

Description

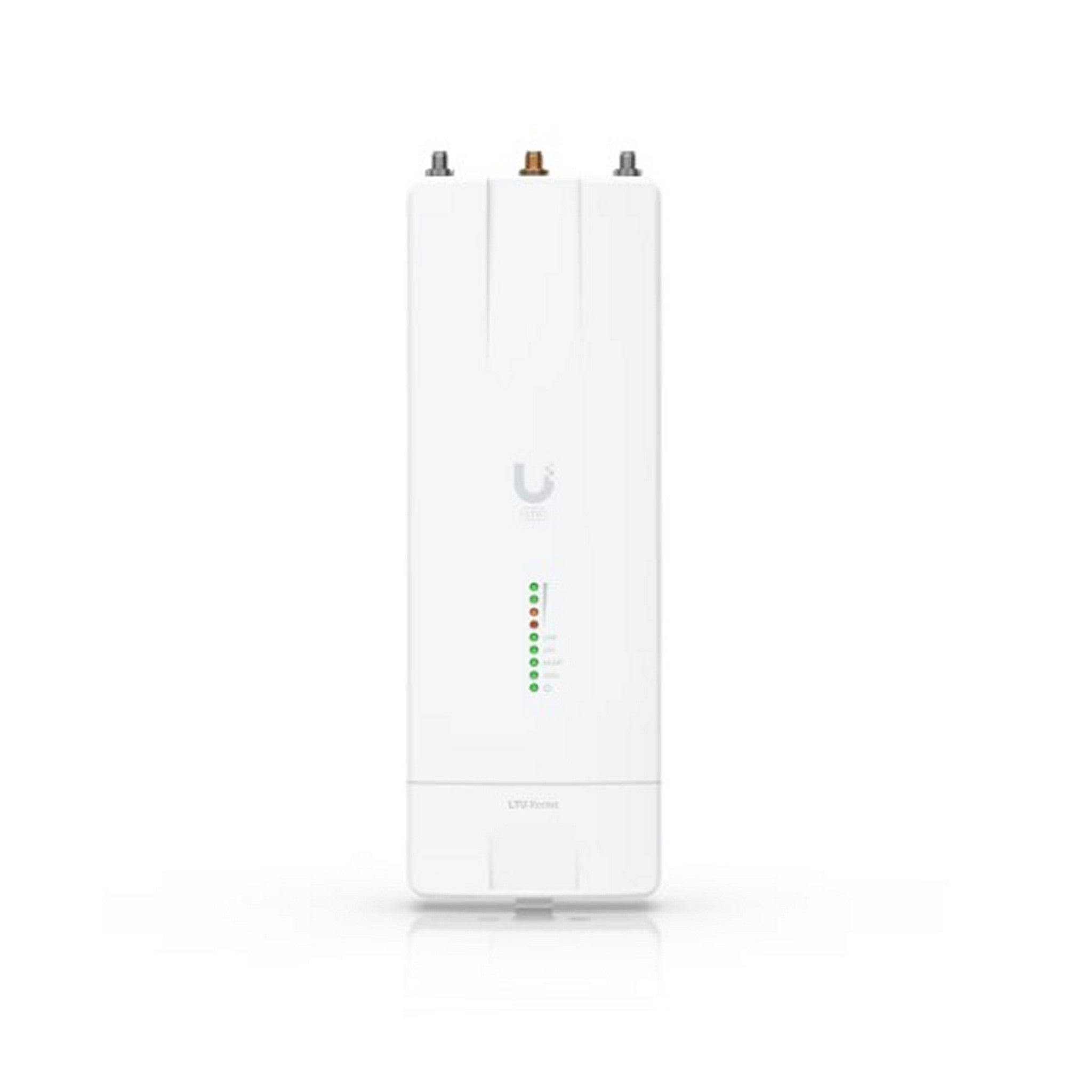

Ubiquiti LTU Rocket PtMP BaseStation Radio

The Ubiquiti LTU Rocket is a robust 5 GHz PtMP base station designed to deliver superior wireless performance. It is equipped with advanced filtering technology and can support over 100 clients with a maximum throughput of 900+ Mbps. With its built-in GPS support and integration with other LTU devices, it ensures precise synchronization for reliable and efficient network performance. The LTU Rocket’s weatherproof design and easy-to-use Bluetooth management interface make it ideal for outdoor installations and large-scale deployments.

Key Features

• 900+ Mbps throughput (FW version 2.3.0 and later)
• Supports over 100 clients
• Integrated GPS sync for precise timing
• Advanced 5 GHz filtering for improved performance
• IP67 weatherproofing for all-weather reliability

Technical Specifications

Dimensions: 244 x 82 x 48 mm (9.6 x 3.2 x 1.9 inches)
Weight: 468 g (1 lb)
Enclosure material: Diecast aluminum, polycarbonate
Mount material: Metal, polycarbonate
Mounting: Integrated pole mount (Kit included), GPS pole mount (Kit included), Rocket mount compatible
Weatherproofing: IP67
Networking interface: (2) GbE RJ45 ports
Power method: Passive PoE 4-pairs (1, 2+; 3, 6-), Passive PoE 2-pairs (4, 5+; 7, 😎 or (1, 2+; 3, 6-)
Power supply: 24V, 1A gigabit PoE adapter (Included)
Supported voltage range: 18—54V DC
Max. power consumption: 24W
RF connections: (2) RP-SMA weatherproof (CH0, CH1), (1) SMA weatherproof (GPS)
GPS: Yes, with external magnetic base antenna
Button: Factory reset
Ambient operating temperature: -40° to 55° C (-40° to 131° F)
Certifications: CE, FCC, IC
Mode: PtMP BaseStation radio
Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities: airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment: Yes
Auto power adjustment: Yes
Security: Yes
Statical reporting: Yes
Management interface: Bluetooth management for easy setup over UISP App
WEB UI: Yes
Minimum software requirements: Any modern web browser, iOS™ or Android™ based smartphone
Maximum throughput: 900+ Mbps (FW version 2.3.0 and later)
Packets per second: 2+ million
Supported clients count: 100+
Maximum range: 100+ km (Throughput and range may vary depending on environmental conditions)
Encryption: WPA2-PSK (AES)
Uplink/Downlink ratio: 25/75, 33/67, 50/50
Max. conducted TX power: 29 dBm
Channel bandwidth: 10/20/30/40/50/60/80/100 MHz (selectable)
Programmable uplink and downlink duty cycles: Yes
Management radio: 2400 – 2483.5 MHz
