Ubiquiti LTU XR Long Range Wireless Client for Outdoor Networks

$168.03

In stock

Spend & save Spend $149+, save up to $500 Applied automatically
Spend $149Save $50
Spend $399Save $100
Spend $799Save $200
Spend $1,299Save $300
Spend $1,999Save $500

Discount applied automatically in cart.

UBI-LTUXRUS Categories: , , , Tags: , ,
SHARE

Description

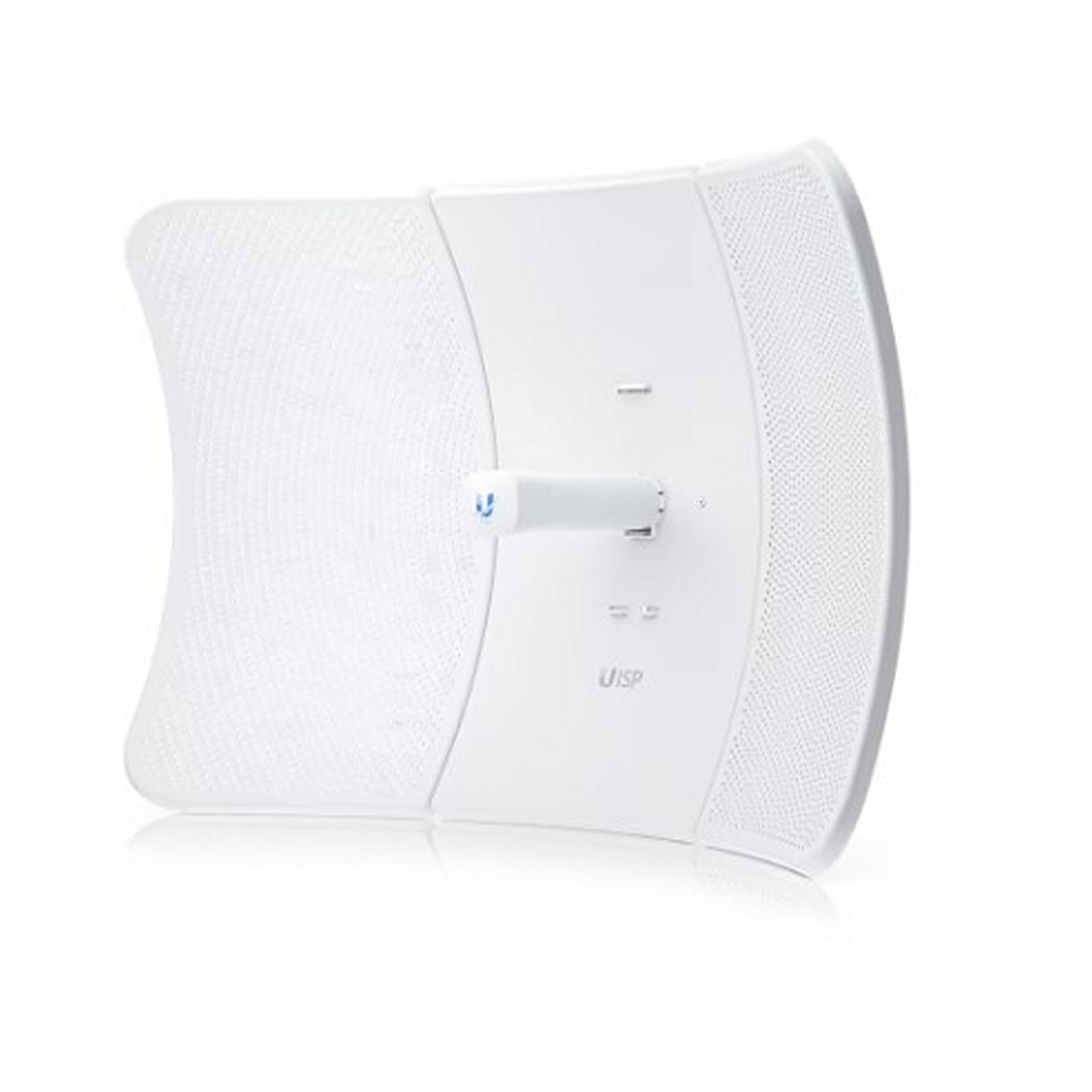

Ubiquiti LTU-XR Long-Range 5 GHz Wireless Client for Outdoor Networks

The Ubiquiti LTU-XR is a powerful wireless client that operates on the 5 GHz band, providing exceptional long-range performance for outdoor networks. With a maximum throughput of over 900 Mbps and a range exceeding 100 km*, this device ensures reliable connectivity in even the most demanding environments. Its advanced design features a dedicated spectral analysis radio, auto power adjustment, and robust weatherproofing (IPX6), making it ideal for remote locations and long-distance broadband applications.

Key Features

  • High throughput of 900+ Mbps*
  • Maximum range of 100+ km*
  • Advanced spectral analysis for network optimization
  • Weatherproof (IPX6) for durability in harsh environments
  • Bluetooth management for easy setup via UISP App
  • Integrated pole mount for easy installation

Technical Specifications

Dimensions: 747 x 525 x 347 mm (29.4 x 20.7 x 13.7″)
Weight: 3.2 kg (7.1 lb)
Enclosure material: Aluminum alloy, UV-stabilized polycarbonate
Mount material: UV-stabilized polycarbonate
Mount: Integrated pole mount (included), Pole compatibility: Ø35 to 60 mm (Ø1.4 to 2.4″)
Wind loading: 1100 N at 200 km/h (247.29 lbf at 125 mph)
Weatherproofing: IPX6

Hardware
Networking interface: (1) GbE RJ45 port
Power method: Passive PoE 2-pair (4, 5+; 7, 😎
Power supply: 24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range: 22—27V DC
Max. power consumption: 9W
RF connections: Internal
LEDs: Power/Ethernet
Button: Factory reset
Ambient operating temperature: -40° to 55° C (-40° to 131° F)
Ambient operating humidity: 5 to 95% non-condensing
Certifications: FCC, IC, CE

Software
Modes: PtMP CPE, PtP*
Services: SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities: airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment: Yes
Auto power adjustment: Yes
Network: Bridge/Router* mode
Security: Yes
Statical reporting: Yes
Management interface: Bluetooth management for easy setup over UISP App, WEB UI
Minimum software requirements: Any modern web browser, iOS™ or Android™ based smartphone

System
Maximum throughput: 900+ Mbps*
Encryption: WPA2-PSK (AES)
Uplink/Downlink ratio: 25/75, 33/67, 50/50

RF
Operating frequency: 5.15 to 5.95 GHz (regulatory region dependent)
Max. conducted TX power: 25 dBm
Channel bandwidth: 10/20/30/40/50/60/80/100 MHz* selectable
Antenna gain: 29 dBi
Isolation: 20 dB
Beamwidth: HPOL: 3 dB: 5.5°, 6 dB: 7.5°, VPOL: 3 dB: 5.5°, 6 dB: 7.5°, Elevation: 3 dB: 5.5°, 6 dB: 7.5°
Electrical downtilt: 0°

Specifications
