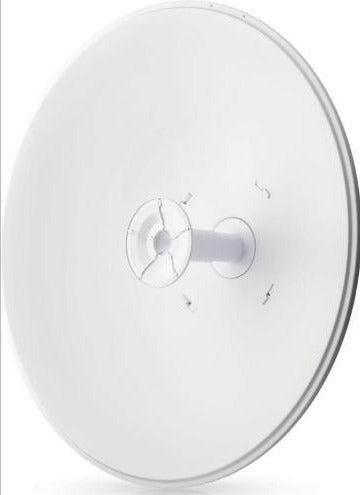

Ubiquiti RD-5G30 airMAX 30dBi 5GHz Dish Antenna PtP Bridge

Description

PRODUCT OVERVIEW

Ubiquiti airMAX 2×2 directional dish antenna for Point-to-Point bridging and network backhaul applications, operating from 4.9 to 5.90 GHz with up to 30.25 dBi gain.

PRODUCT TYPE

Antennas (Networking)

KEY FEATURES

• airMAX 2×2 Point-to-Point bridge dish antenna
• 4.9–5.90 GHz frequency range
• 28.0–30.25 dBi gain
• Dual-linear polarization
• 35 dB minimum cross-polarization isolation
• 5° horizontal and vertical beamwidth
• Designed for pairing with a Rocket M BaseStation
• Wind survivability rated to 120 mph

TECHNICAL SPECIFICATIONS

• Manufacturer: Ubiquiti
• Part Number: RD-5G30
• Frequency Range: 4.9–5.90 GHz
• Gain: 28.0–30.25 dBi
• Polarization: Dual Linear
• Cross-Polarization Isolation: 35 dB minimum
• Maximum VSWR: 1.4:1
• HPOL Beamwidth (3 dB): 5°
• VPOL Beamwidth (3 dB): 5°
• F/B Ratio: -34 dB
• ETSI Specification: EN 302 326 DN2
• Diameter: 648 mm (25.5″)
• Weight: 9.8 kg (21.6 lb)
• Wind Survivability: 120 mph

INTENDED USE / APPLICATIONS

• Point-to-Point (PtP) wireless bridging
• Network backhaul links
• Pairing with a compatible Rocket M BaseStation
