Ubiquiti RD-5G30-LW RocketDish 5GHz 30dBi Dish Antenna Dual-Linear

$124.49

In stock

Spend & save Spend $149+, save up to $500 Applied automatically
Spend $149Save $50
Spend $399Save $100
Spend $799Save $200
Spend $1,299Save $300
Spend $1,999Save $500

Discount applied automatically in cart.

Categories: , , , Tags: ,
SHARE

Description

PRODUCT OVERVIEW

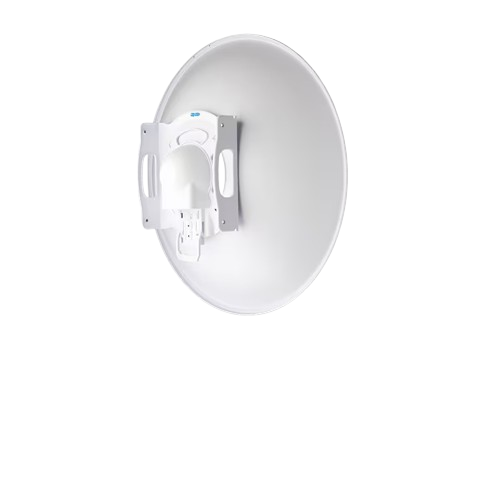

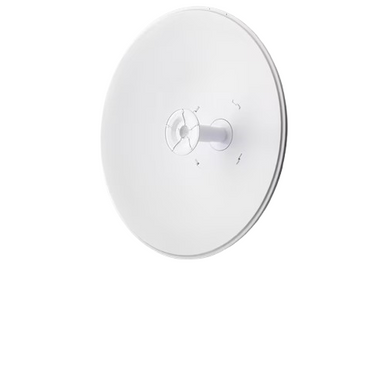

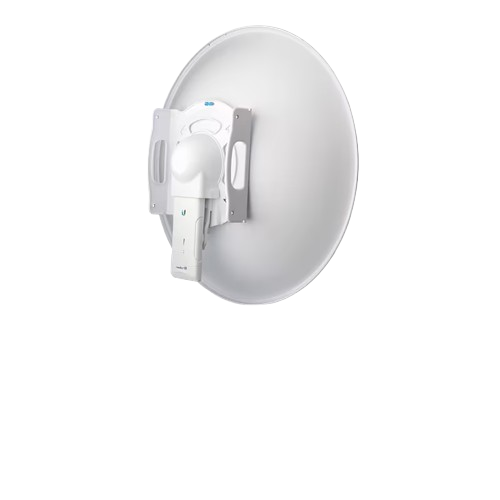

Ubiquiti RD-5G30-LW RocketDish is a 5.1-5.9 GHz, 30 dBi dual-linear dish antenna designed for outdoor 2×2 point-to-point links, with a lightweight construction, precision elevation adjustment, and integrated Rocket mounting.

PRODUCT TYPE

Antennas (Networking)

KEY FEATURES

• 5.1 to 5.9 GHz operating frequency range
• 30 dBi antenna gain
• Dual-linear polarization
• Designed for 2×2 point-to-point bridge applications
• Dish reflector design provides focused beam directivity
• 5.8° HPOL and VPOL beamwidth
• 30 dB front-to-back ratio
• 35 dB minimum cross-polarization isolation
• Lightweight 7.4 kg (16.31 lb) construction
• Extended dish reflector depth designed to reject noise interference in co-location deployments
• Precision elevation adjustment for antenna alignment
• Built-in Rocket mounting design for compatible Rocket radios
• Galvanized steel, powder-coated mounting hardware for corrosion resistance
• GEOMET-coated fasteners for improved corrosion resistance
• Protective shroud for cables and connectors
• Designed for pole or tower installation
• 200 km/h (125 mph) wind survivability

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: RD-5G30-LW
• Product Type: Antennas (Networking)
• Manufacturer: Ubiquiti Networks
• Product Family: RocketDish
• Antenna Type: Dish
• Frequency Range: 5.1 to 5.9 GHz
• Gain: 30 dBi
• Polarization: Dual-Linear
• HPOL Beamwidth: 5.8° (3 dB)
• VPOL Beamwidth: 5.8° (3 dB)
• Front-to-Back Ratio: 30 dB
• Maximum VSWR: 1.6:1
• Cross-Polarization Isolation: 35 dB minimum
• Dimensions: 650 x 650 x 386 mm (25.6 x 25.6 x 15.2 in)
• Weight: 7.4 kg (16.31 lb), including pole mount and excluding Rocket
• Wind Loading: 790 N at 200 km/h (178 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• ETSI Specification: EN 302 326 DN2
• Mounting: Universal pole mount and Rocket bracket
• RF Connections: Weatherproof RF connectors
• Compatible Optional Isolator Radome: ISO-BEAM-620
• Compatible Optional Precision Alignment Kit: PAK-620
• Manufacturer specifications are provided in the supplied RocketDish , including the RD-5G30-LW model specifications on pages 5 and 8 and mounting details on page 3.

INTENDED USE / APPLICATIONS

• Outdoor point-to-point wireless bridge links
• Network backhaul links
• Long-distance wireless networking
• Pole or tower-mounted wireless installations
• Designed to pair with a compatible Ubiquiti Rocket basestation for point-to-point applications; Rocket sold separately
• Co-location deployments where the extended reflector depth can assist with rejection of noise interference
