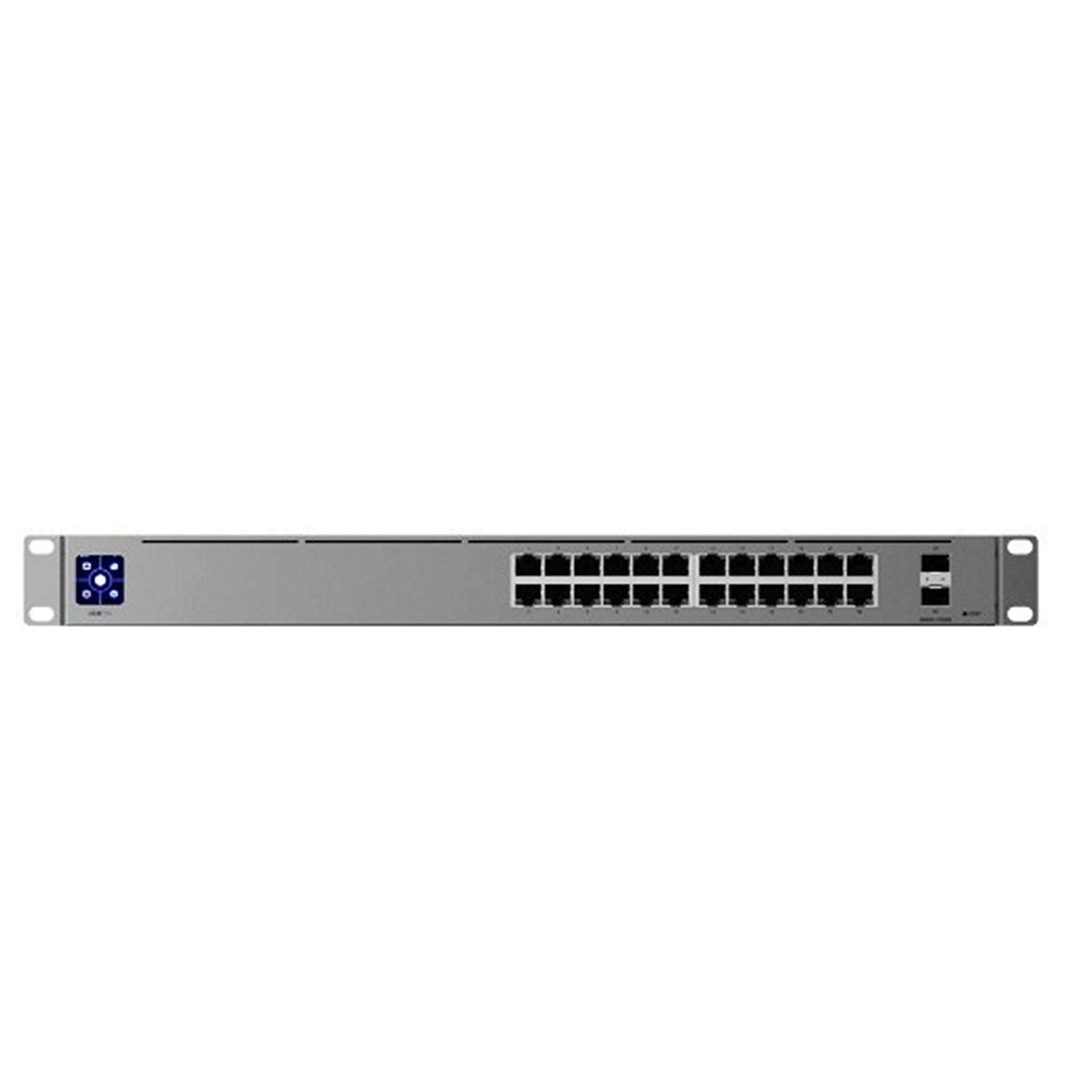

The Ubiquiti Switch Pro 24 (USW-Pro-24) is a powerful 24-port switch designed for high-performance network environments. With two 1/10G SFP+ ports and 24 GbE RJ45 ports, it delivers a non-blocking throughput of 44 Gbps and a switching capacity of 88 Gbps. Featuring Layer 3 functionality, it supports advanced routing capabilities and enhanced security. The sleek SGCC steel enclosure and fanless design make it ideal for both office and data center environments. This fanless model ensures quiet operation while handling heavy traffic loads effortlessly.
Key Features:
24 GbE RJ45 ports and 2 x 1/10G SFP+ ports
Layer 3 switching with DHCP relay and inter-VLAN routing
Advanced security with features like 802.1X control and ACLs
Non-blocking throughput of 44 Gbps and 88 Gbps switching capacity
Fanless design for quiet operation and minimal energy consumption
Supports DC backup power for high availability
Technical Specifications:
Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″) Weight: 3.5 kg (7.7 lb) without mounting brackets, 3.6 kg (7.9 lb) with mounting brackets Enclosure Material: SGCC steel
Management Interface: Ethernet In-Band Networking Interface: (24) GbE RJ45 ports, (2) 1/10G SFP+ ports Total Non-Blocking Throughput: 44 Gbps Switching Capacity: 88 Gbps Forwarding Rate: 65.472 Mpps Power Method: (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP-RPS DC input 11.5V DC, 2.61A Power Supply: AC/DC, internal, 36W Max. Power Consumption: 30W ESD/EMP Protection: Air: ± 16kV, contact: ± 12kV LCM Display: (1) 1.3″ touchscreen Button: Factory reset Shock and Vibration: ETSI300-019-1.4 Standard Ambient Operating Temperature: -5 to 45° C (23 to 113° F) Ambient Operating Humidity: 10 to 90% noncondensing Certifications: CE, FCC, IC
Switching Features:
Layer 2 features: IGMP snooping, STP/RSTP, Port isolation, Voice VLAN
