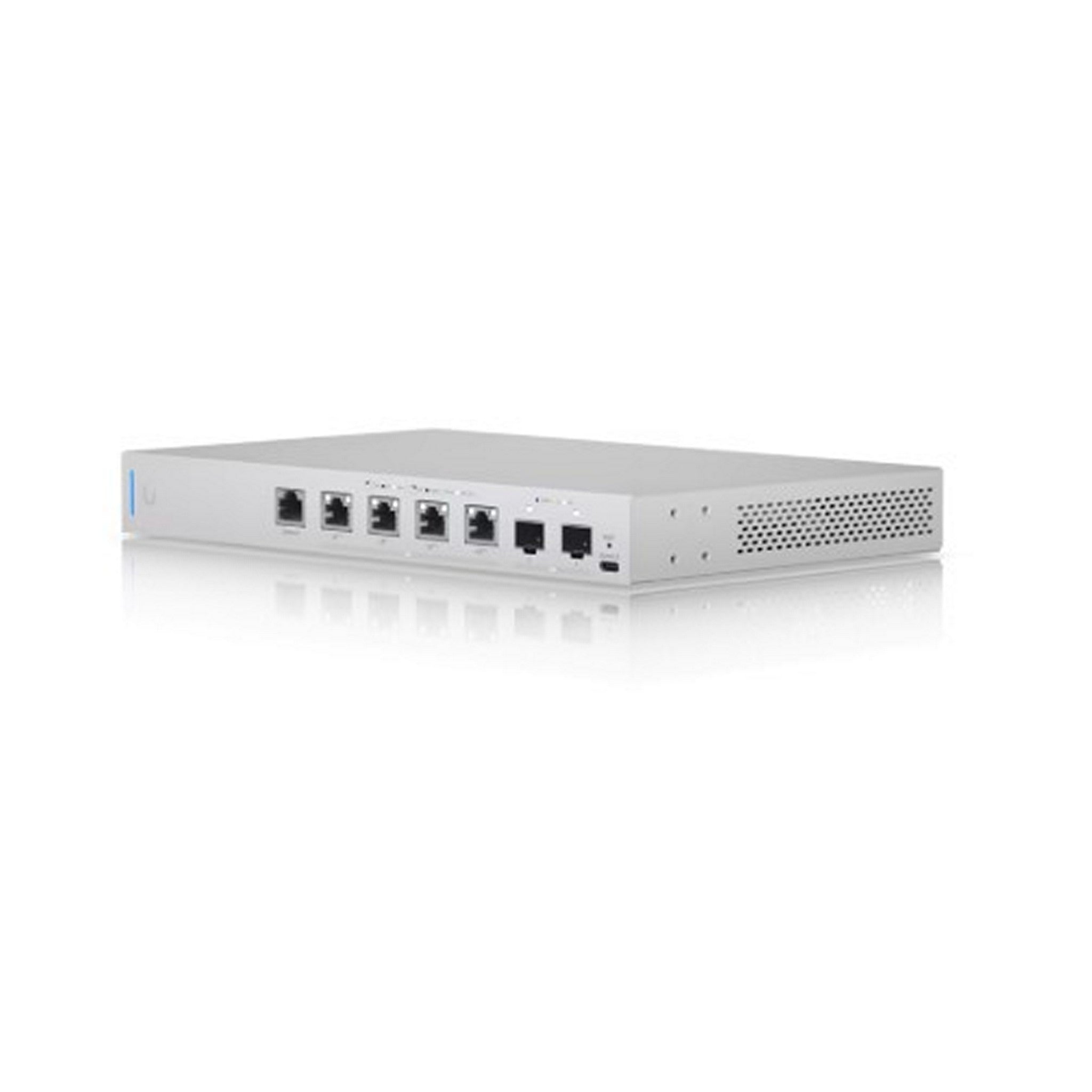

Ubiquiti Switch XG 6 PoE – 4-Port 10GbE PoE++ Switch
The Ubiquiti Switch XG 6 PoE delivers high-performance networking with advanced Layer 3 capabilities. This versatile switch features four 1/2.5/5/10 GbE RJ45 ports and two 10G SFP+ ports, offering non-blocking throughput up to 60 Gbps. It also provides 170W of total PoE power, capable of delivering up to 60W per port, making it ideal for powering a range of network devices. Its compact design and high throughput make it perfect for enterprise or advanced network applications.
Key Features
- 4 x 1/2.5/5/10 GbE PoE++ ports and 2 x 10G SFP+ ports
- 170W PoE available, with up to 60W per port
- 60 Gbps non-blocking throughput for maximum network performance
- External DC power supply included (54V DC)
- Compact design with rugged SGCC steel enclosure
Technical Specifications
Dimensions: 6.5″ x 10.6″ x 1.3″ (165 x 268.1 x 31.8 mm)
Weight: 2.9 lb (1.3 kg)
Enclosure Material: SGCC steel
Networking Interface: (4) 1/2.5/5/10 GbE RJ45 ports, (2) 10G SFP+ ports
Total Non-Blocking Throughput: 60 Gbps
Switching Capacity: 120 Gbps
Forwarding Rate: 89.3 Mpps
Power Method: (1) 54V DC, 3.88A power adapter (Included), (1) DC input with terminal block
Power Supply: External AC/DC adapter (Included)
Max. Power Consumption: 40W (excluding PoE output)
Total Available PoE: 170W
Max. PoE Wattage Per Port by PSE: PoE++: 60W
Voltage Range PoE Mode: PoE: 44—57V, PoE+/PoE++: 50—57V
Ambient Operating Temperature: -5 to 45°C (23 to 113°F)
Ambient Operating Humidity: 5 to 95% non-condensing
Certifications: CE, FCC, IC
Package Contents
- Ubiquiti Switch XG 6 PoE
- External 54V DC Power Adapter
- Power Cord
- Quick Start Guide
