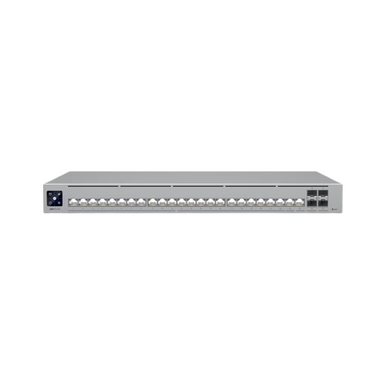

Ubiquiti USW-Pro-HD-24 Layer 3 Switch 2x10GbE 22×2.5GbE 4xSFP+

Description

PRODUCT OVERVIEW

Professional-grade Layer 3 Etherlighting switch with 22 multi-speed 2.5 GbE ports, 2 multi-speed 10 GbE ports, 4 10G SFP+ ports, 115 Gbps non-blocking throughput, and DC power backup support.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• 22 multi-speed 2.5 GbE RJ45 ports
• 2 multi-speed 10 GbE RJ45 ports
• 4 10G SFP+ ports
• Layer 3 switching features
• 230 Gbps switching capacity
• 115 Gbps total non-blocking throughput
• 171.12 Mpps forwarding rate
• Supports up to 1,000 VLANs
• 32,000-entry MAC address table
• 12,000 ARP entries
• 12,000 IPv4 routes
• 1.3″ touchscreen display with AR switch management
• Etherlighting support on Ethernet and SFP+ interfaces
• DC power backup support with UniFi Power Backup
• DHCP server and DHCP relay
• Inter-VLAN routing
• Static routing
• LACP port aggregation
• STP and RSTP
• QoS with DSCP
• Advanced IGMP configuration and IGMP snooping
• 802.1X control
• Rack-mountable 1U form factor

TECHNICAL SPECIFICATIONS

• Model / MFR Part Number: USW-Pro-HD-24
• 2.5 GbE RJ45 Ports: (22), supporting 2.5G/1G/100M/10M
• 10 GbE RJ45 Ports: (2), supporting 10G/5G/2.5G/1G/100M
• SFP+ Ports: (4), supporting 10G/1G
• Switching Capacity: 230 Gbps
• Total Non-Blocking Throughput: 115 Gbps
• Forwarding Rate: 171.12 Mpps
• Supported VLANs: 1,000
• MAC Address Table Size: 32,000
• ARP Entries: 12,000
• IPv4 Routes: 12,000
• Packet Buffer Size: 2 MB
• Layer 3: Supported
• DHCP Server: Supported for local networks
• DHCP Relay: Supported
• Inter-VLAN Routing: Supported for local networks
• Static Routing: Supported for local networks
• LACP Port Aggregation: Supported
• STP / RSTP: Supported
• QoS: DSCP
• Advanced IGMP: Querier, Fast Leave, Router Port
• IGMP Snooping: Supported
• 802.1X Control: Supported
• MAC-Based ACLs and Device Isolation: Supported
• DHCP Snooping and Guarding: Supported
• Egress Rate Limiting: Supported
• Flow Control: Supported
• Storm Control: Supported
• Multicast and Broadcast Rate Limiting: Supported
• MAC Address Blocking: Supported
• IP-Based ACLs and Network Isolation: Supported
• MAC-Based Port Restriction: Supported
• Port Isolation: Supported
• Port Mirroring: Supported
• Jumbo Frames: Supported
• LLDP-MED: Supported
• Voice VLAN: Supported
• Loop Protection: Supported
• Pro AV Profiles: Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron
• Dimensions: 442 x 285 x 44 mm (17.4 x 11.2 x 1.7″)
• Form Factor: 1U Rack Mount
• Weight Without Mounting Brackets: 4.2 kg (9.2 lb)
• Weight With Mounting Brackets: 4.3 kg (9.4 lb)
• Enclosure Material: SGCC steel
• Maximum Power Consumption: 60W
• Primary Power: Universal 100–240V AC, 50/60 Hz input
• Backup Power Interface: USP RPS DC input
• Power Supply: Internal AC/DC, 60W
• Supported Voltage Range: 100–240V AC
• Heat Dissipation: 102.36 BTU/hr
• Management: Ethernet and AR
• LCM Display: 1.3″ touchscreen
• Etherlighting: Ethernet and SFP+
• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 10–90% noncondensing
• Certifications: CE, FCC, IC
