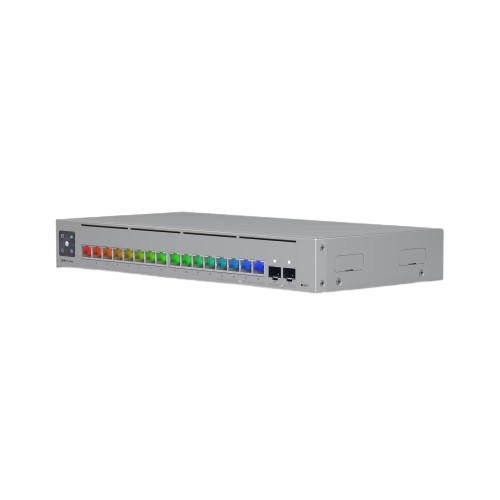

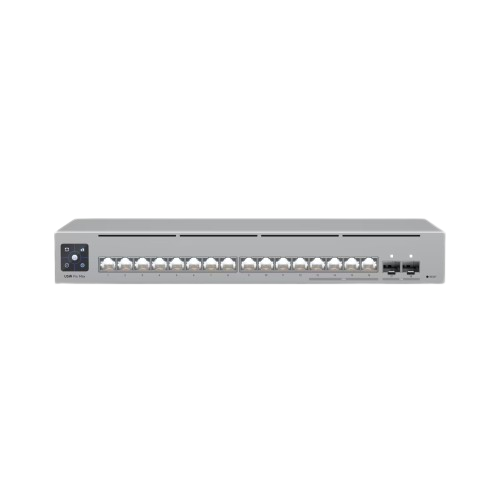

Ubiquiti USW-PRO-MAX-16 16-Port Layer 3 Switch 2.5GbE 10G SFP+

Description

PRODUCT OVERVIEW

USW-PRO-MAX-16 – A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.

PRODUCT TYPE

Routers and Switches

KEY FEATURES

• Etherlighting™ Ports : Illuminate to indicate port location, speed/link, and native VLAN/network*. *Pair with UniFi Etherlighting Patch Cables for optimal brightness.
• Ports : (12) GbE RJ45 ports
• (4) 2.5 GbE RJ45 ports
• (2) 10G SFP+ ports
• Mounting Options : Versatile desktop, wall, and rack** mounting. **Requires add-on Rack Mount accessory.
• Cooling : Silent, fanless system.
• Data centers
• High-performance networking environments
• Offices and enterprise networks
• 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7′)
• 1.95 kg (4.3 lb)
• Mechanical Enclosure Material : SGCC steel
• Hardware Management Interface : Ethernet In-Band
• Networking Interface : (12) GbE RJ45 ports
• (4) 1/2.5 GbE RJ45 ports
• Total Non-blocking Throughput : 42 Gbps
• Switching Capacity : 84 Gbps
• Forwarding Rate : 62.496 Mpps

TECHNICAL SPECIFICATIONS

• Brand: Ubiquiti
• Model: USW-PRO-MAX-16
• Product Type: Routers and Switches
• Etherlighting™ Ports : Illuminate to indicate port location, speed/link, and native VLAN/network*. *Pair with UniFi Etherlighting Patch Cables for optimal brightness.
• Ports : (12) GbE RJ45 ports
• (4) 2.5 GbE RJ45 ports
• (2) 10G SFP+ ports
• Mounting Options : Versatile desktop, wall, and rack** mounting. **Requires add-on Rack Mount accessory.
• Cooling : Silent, fanless system.
• Data centers
• High-performance networking environments
• Offices and enterprise networks
• 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7′)
• 1.95 kg (4.3 lb)
• Mechanical Enclosure Material : SGCC steel
• Hardware Management Interface : Ethernet In-Band
• Networking Interface : (12) GbE RJ45 ports
• (4) 1/2.5 GbE RJ45 ports
• Total Non-blocking Throughput : 42 Gbps
• Switching Capacity : 84 Gbps
• Forwarding Rate : 62.496 Mpps
• Power Method : Type-C adapter
• Power Supply : 5V, 25W
• Max Power Consumption : 25W
• LCM Display : (1) 1.3′ touchscreen
• Button : Factory reset
• Environmental Operating Temperature : -5 to 40°C (23 to 104°F)
• Operating Humidity : 10 to 90% non-condensing
• Certifications : CE, FCC, IC
• Switching Features Layer 2 Features : IGMP snooping
• STP/RSTP with priorities and port-level disable
• Port isolation

INTENDED USE / APPLICATIONS

• Professional networking and communications deployments
• Commercial, institutional, or industrial installations
• Use with compatible equipment according to manufacturer specifications
